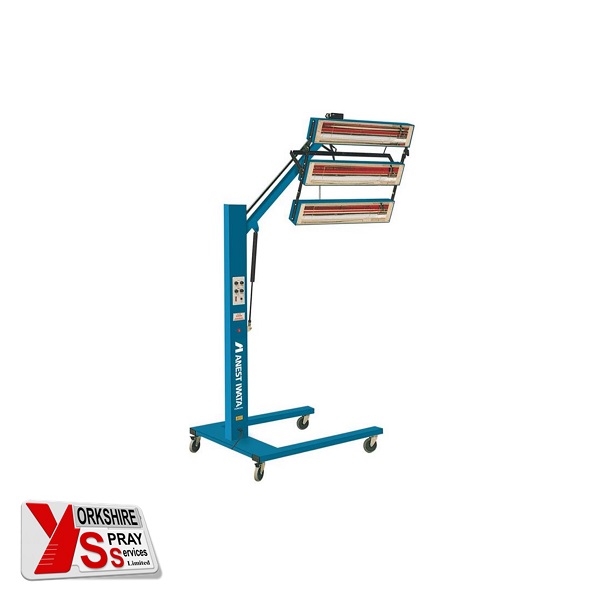

Anest Iwata Heat T.E.C. 3000

Price range: £3,426.28 through £5,226.48 + VAT

The Anest Iwata Heat T.E.C. 3000 3kw uses short wave infrared technology which enables body filters, primers and paints to be cured in 10 minutes as opposed to 45 minutes in an oven. Infrared units are a cost effective method of paint drying, and curing can be achieved in just minutes, using the highly effective short wave infrared lamp. Ideal in Panel and Car repairs, along with Smart Repairs and wheel refurbishment

Yorkshire Spray Services Ltd - Anest Iwata Authorised Service Centre & Distributor
Yorkshire Spray Services Ltd - Standard Delivery

  NEXT working day delivery for orders placed before 12.00pm.   Delivery on back ordered products approx. 4 – 7 days delivery


Clear
Quantity

Product Description


The Anest Iwata Heat T.E.C.3000 3kw uses short wave infrared technology which enables body filters, primers and paints to be cured in 10 minutes as opposed to 45 minutes in an oven. Anest Iwata infrared mobile drying systems provide a fast efficient answer for all your local body repairs. The Anest Iwata Heat T.E.C. 3000 3kw Infrared units are a cost effective method of paint drying, and curing can be achieved in just minutes, using the highly effective short wave infrared lamp.


Features & Benefits


Even heat distribution over the widest possible target area leads to high efficiency and the best paint finish. Anest Iwata has designed the parabolic reflector used in all the infrared drying systems to maximise efficiency. The parabolic reflector gives a totally uniform heat pattern. Efficiency increases of up to 90% are made over conventional systems plus drying time cut from typically 45mins to 10minutes, faster throughput and lower energy costs give a rapid return on investment. Anest Iwata short wave lamps are specifically tuned for paint drying and in normal use will comfortably last 20,000 hours.

  • Horizontal or vertical cassette operation
  • Long lamp life of at least 20,000 hours
  • Locking gas strut to fix arm height
  • Reduced energy consumption, no fans or filter changes
  • Manufactured from top quality steel & aluminum
  • Robustly packaged
  • Easy to assemble & Install
  • Easy lamp changes
  • Low glare lamps for eye safety in the workplace
  • Full warranty & easy access to spares
  • Lockable wheel castors
  • Wide wheels to roll over many different surfaces
  • Individually switched cassettes giving drying flexibility

Technical Data


Anest Iwata Part No. Min. Operating Distance Area Coverage Max. Vertical Curing Height Max. Horizontal Curing Height
VIU100030 500mm 800 x 1000mm 2030mm 1800mm

Further Information


Brochure

Anest Iwata Paint Drying

Yorkshire Spray Services Ltd - Anest Iwata Infrared Drying HEAT T.E.C. Units Brochure

Download
