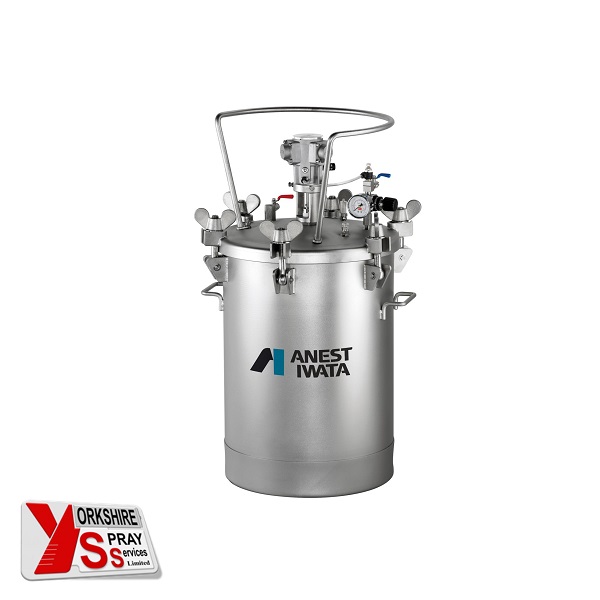

Anest Iwata PET-MN Pressure Pot

Product Description

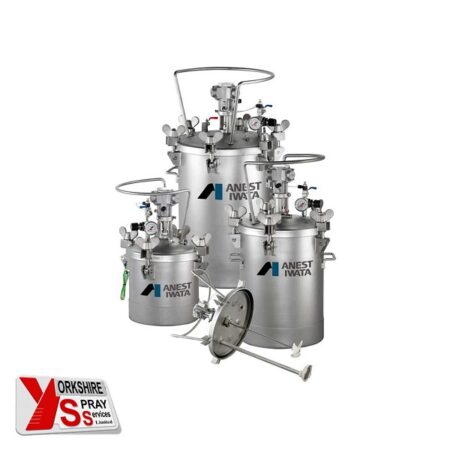

The Anest Iwata PET-MN Pressure Pot, low pressure system for feeding paint for the spray guns and other pneumatic equipment. The system allows the correct feeding of the fluid output at a stable pressure, ideal for a wide range of applications. Available in three different capacities: 10Ltr, 30Ltr & 50Ltr.

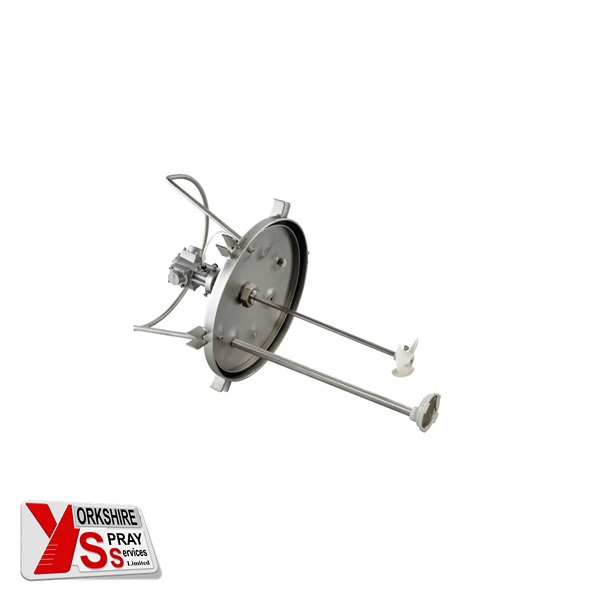

The Anest Iwata PET-MN Pressure Pots/Tanks are complete with a pneumatic agitator, provided with a practical mixing vanes speed controller, which allows keeping the material or paint properly stirred and suspended, therefore avoiding deposits and sedimentation, with constant mixing of the product to fed or dispensed.

Features & Benefits

The Anest Iwata PET-MN Pressure Pots/Tanks, in stainless steel. The pressure inside the pot/tank allows spraying the paint with a pressure between 0 and 7 bar (700kpa). The possibility to adjust the product pressure improves the quality of application and facilitates the flow of highly viscous products. The body of the pot/tank has six fixing clamps (four in the 10lt version), guaranteeing the perfect tightness of the system, and with two lifting handles to facilitate easy handling the whole unit.

• Air inlet connection complete with ball valve.
• Fluid outlet connection complete with ball valve.
• Air pressure regulator provided with pressure gauge for checking the inner pressure.
• Safety valve and an exhaust valve to drain pressure.

Technical Data

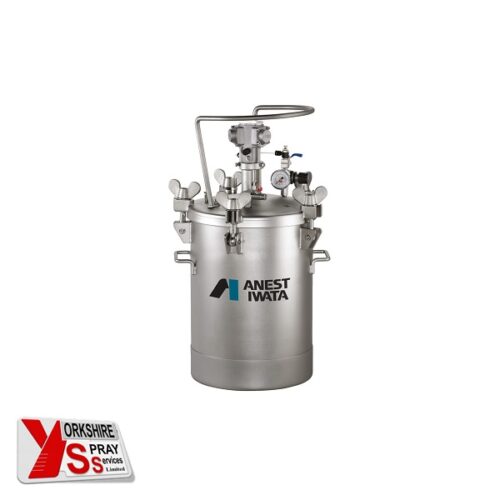

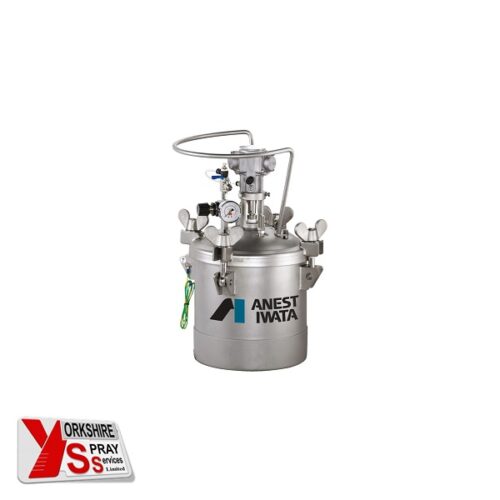

Product Variant	PET-10 MN	PET-30 MN	PET-50 MN
Pot/Tank Capacity	10Ltr	30Ltr	50Ltr
Max. operating air pressure:	7 bar (0.7 MPa)
Max. fluid pressure	7 bar (0.7 MPa)
Max. air inlet pressure:	7 bar (0.7 MPa)
Operating supply pressure:	from 0 to 7 bar
Air inlet joint:	G 1/4” M
Fluid outlet joint:	G 3/8” M
Paint filter 40Mesh:	ø51mm	ø78mm
Operating Temperature	5-40 °C
Fluid Passages	AISI 303, AISI 304
Weight	15,3 Kg	20,4 Kg	25,6 Kg
Pneumatic Agitator	AM-6B
