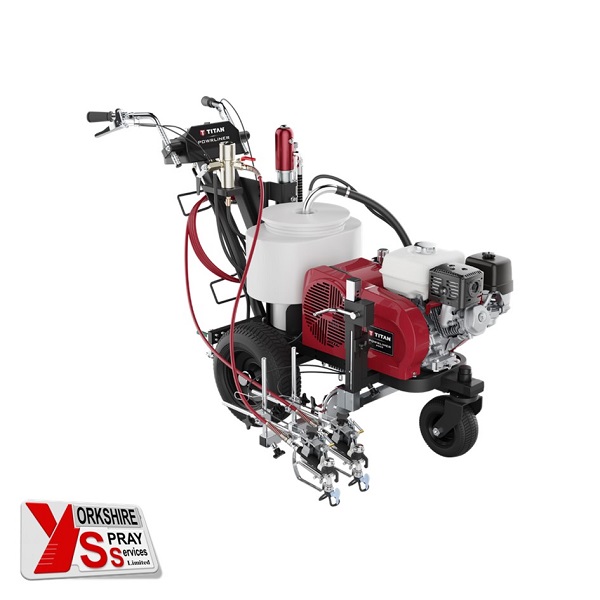

Product Description
|
The Titan PowrLiner 8955 Line Marker, larger projects require more power and output. PowrLiner 8955 line markers are the workhorse machines of the industry, designed for ease of use and simple operation on major projects that require maximum performance with minimum downtime and maintenance. Recommended for large scale, full-time duty on airports, roads, parking lots and athletic fields. Precise pressure control from 400 to 3300psi, this allows the PowrLiner 8955 to spray light-bodied coatings all the way up to low-VOC striping paints.
The Titan PowrLiner 8955 with Convenient SmartArm™ gun mount pivots and lifts, making line adjustments and transportation quick and easy. Reliable, smooth, slow-stroking hydraulic drive greatly extends the operational life of the sprayer. Cylinder and piston rod are tempered with a proprietary heat-treating process that increases pump life up to 150% longer than competitive pumps. Includes 12 Gallon Material Hopper. |
Features & Benefits
The PowrLiner 8955 Line Marker delivers a perfect line on difficult applications like smooth concrete and is also great for field and pavement marking. Low wear diaphragm pump that has no piston, packings or clutch to replace, and is backed by the Elite™ lifetime fluid pump warranty.
PermaStroke Technology™
- Delivers top performance at pressures from 300 to 3300 PSI and when using small or large tip sizes
- No piston or packings, cylinder or clutch to wear or burn out
- Features the Sureflo™ pusher valve that makes priming easy
- Perfect for spraying coatings prone to shearing
- Elite lifetime warranty on fluid pump
FlatLine Pulsation Dampener™
- Eliminates all pressure fluctuations and deadband in the system
- Provides smooth operation and a consistent finish
Powered by Honda®
- Fuel efficient with all the power and performance of a Honda
- Exceptionally quiet running engine.
- Smooth performance with lower vibration
- Low oil alert system prevents engine seizure
Second Gun Kit
- Complete with S-3 gun, hose and tip kit for wider or dual lines.

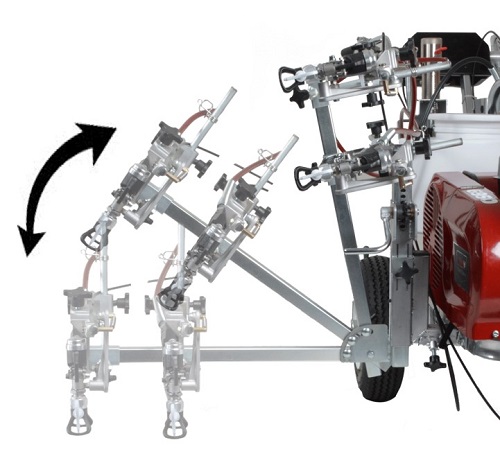

Titan Smart Arm
|
Titan DeadLock Handle Bar
|
- Easy Transportation
- Easy Storage
- Pivots Up for Transportation & Storage
- Pivots Down for Spraying
- Locks In at any Angle for Curb Lining
- Store 2 Strippers Side by Side inmost Trailers
Compatible with prior Titan Generations
- PL4950, PL6950,PL8950
- PL4900XLT, PL6900XLT, PL8900XLT
|
 |
- Rock solid handlebars that will not move (once locked into desired position)
- Easily adjust handlebars
- Lock invirtually any position
- Handlebars adjust to the user’s height & arm length
- Ergonomically correct when attached to any LazyLiner or competitive ride-on driver
- Convenient Hose Rack, keeps hose conveniently stored on the rear of the striper
|
 |
Technical Data
PowrLiner 8955
|
| Honda Motor |
6.5HP |
| Pump Drive |
Hydraulic |
| Max. Pressure |
330psi (227bar) |
| Max. Delivery |
9.5 l/min |
| Max. Material Temp. |
43°C / 109°F |
| Max. Tip Size (1 Gun) |
0.054″ |
| Max. Tip Size (2 Gun) |
0.038″ |
| Weight |
154kg |
Box Contents
|
| Basic Unit PowrLiner 8955 |
| HP Hose DN6, Max. 27 MPa, NPS 1/4“, 15m |
| Titan S-3 Gun & Second Gun Kit |
| Tips TR1 419 |
| TR1 Guard |
| Hopper 12 Gallon |
|
| The Titan PowrLiner Range, Petrol Markers. Ideal for residential, commercial & maintenance applications. |
|
| Titan offers 3 Years Manufacturer’s Defect on the PowrLiner Range, excludes wear items & consumables & Elite lifetime warranty on fluid pump. To Register –
CLICK HERE |
|
