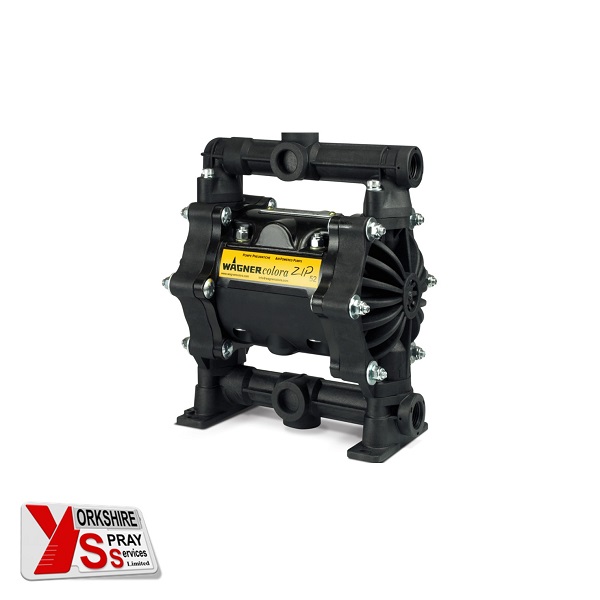

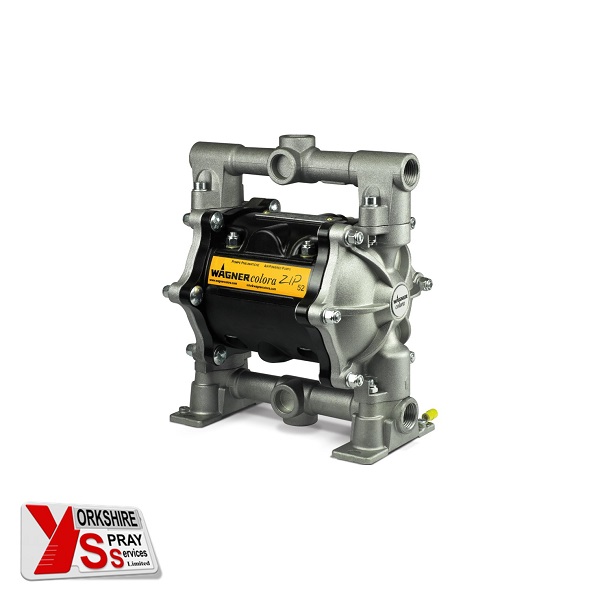

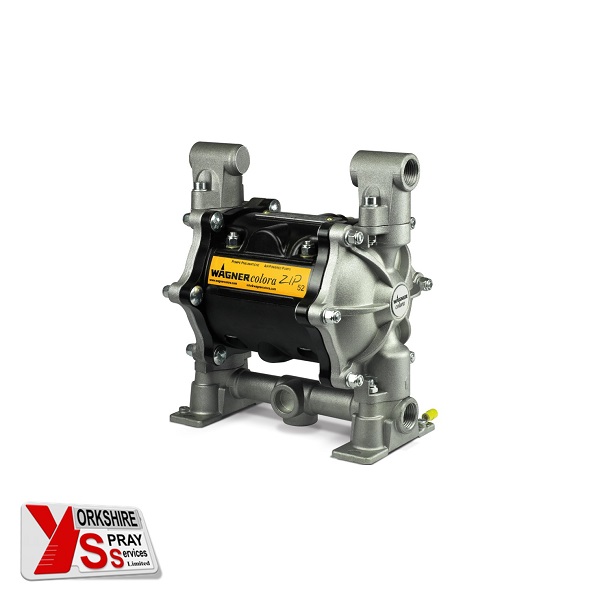

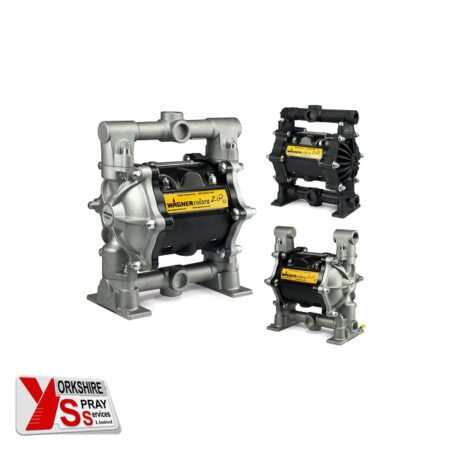

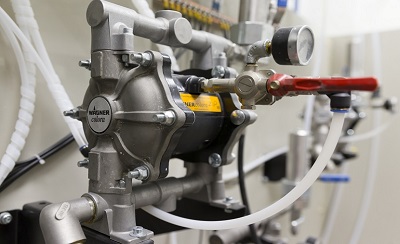

Wagner DDP Zip52

Wagner DDP Zip52 pumps are perfect for many applications, including the feed of various oils and lubricants. Using high viscosity material, shear sensitive or thixotropic, heat critical paints or just ordinary coatings. The Zip52 Air motor ensures highest performance with reduced air consumption and requires no additional lubrication. The Long-life diaphragm’s in the Zip52 pumps, ensure a high degree of reliability and minimum downtime. High chemical compatibility tanks to PTFE O’Rings. Different pump sizes and a comprehensive product range guarantee a wide range of possible applications. No material leakage, the pump is fully threaded with the Long-lasting diaphragms.

Zip pumps are perfect for Airspray applications. Whether you are using thick high viscosity material, shear sensitive or thixotropic, heat critical paints or just ordinary coatings, Zip finishing equipment meets all the expectations of a professional painter.

Two coupled diaphragms (2) are moving from the left to the right and back by help of pressurised air (3). The steering valve (4) guides the air to the side where the diaphragm is moved to contract the fluid chamber (1). Material is being transported by contraction and expansion of the fluid chamber volume and the inlet- and outlet valves (5 & 6).

1 | Pumped Material & Pump Chamber
2 | Long Life Diaphragm
3 | Pressurised Air
4 | Steering Valve
5 | Material Inlet Valve
6 | Material Outlet Valve

• POM – Polyoxymethylene (Acetal)
• UHMWPE – High Molecular Weight Polyethylene

• Polypropylene – Polypropylene

• PPS – Polypropylene Sulfide

• PTFE – Polytetrafluorethylene

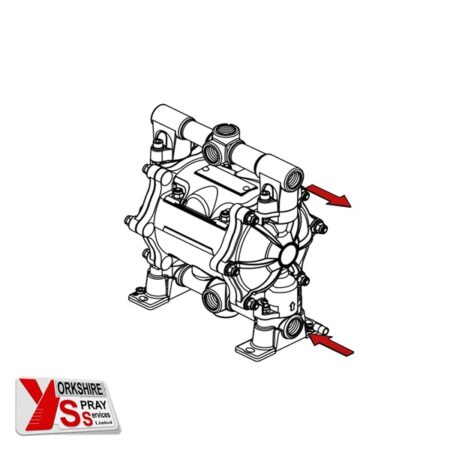

Wagner DDP Zip 52 Pump Connections LEFT_LEFT

U55x.xxxx1

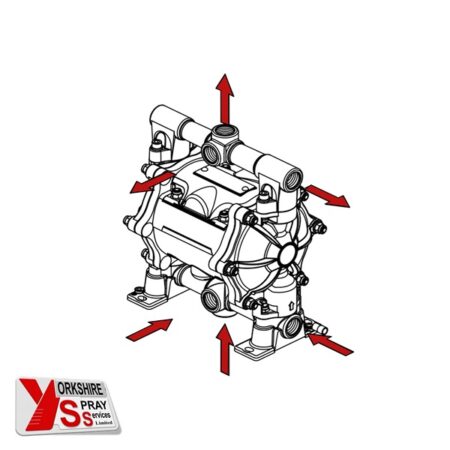

Wagner DDP Zip 52 Pump Connections UNIVERSAL_UNIVERSAL

U55x.xxxx7

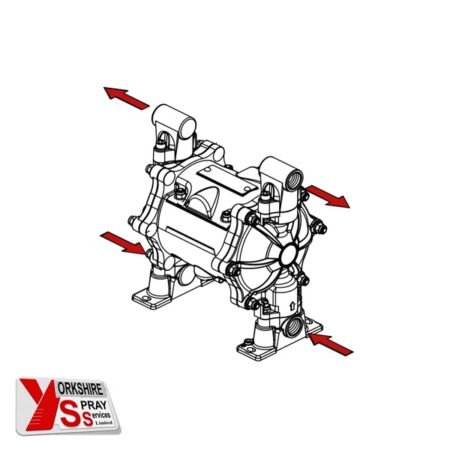

Wagner DDP Zip 52 Pump Connections INDEPENDENT_INDEPENDENT

U55x.xxxx8
