Name: Wagner GA400DV Dosing Valves
SKU: 36395
Availability: InStock

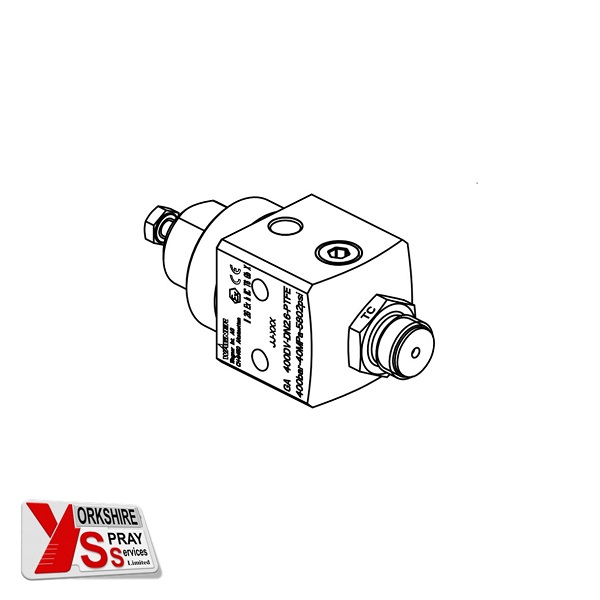

Wagner GA400DV Dosing Valves

Yorkshire Spray Services Ltd - Valve GA400 PV & DV DN2.6-PTFE

Yorkshire Spray Services Ltd - Valve GA400 DV DN2.6-PTFE

Price range: £565.79 through £982.46 + VAT

The Wagner GA400DV Dosing Valves, for product pressures up to 400bar. Pneumatically driven color change and dosing valve for the complex and precise processing of color and multi-component paints or 2-component system.


	NEXT working day delivery for orders placed before 12.00pm. Delivery on back ordered products approx. 1 – 2 weeks delivery

Wagner Part No. 2343359 | 2343362

SKU: N/A Application Methods, Automatic Guns & Equipment, Material Valves, Twin Control & 2K Systems

Description Additional information Reviews (0)

Product Description

The Wagner GA400DV Dosing Valves, for product pressures up to 400bar. Pneumatically driven colour change and dosing valve for the complex and precise processing of colour and multi-component paints or 2-component system.

Features & Benefits	Typical Material
Long Service Life – All material-wetted parts are made of stainless steel, ensuring a long service life and superior corrosion resistance. Process Reliability – The high switching accuracy of the gun produces reproducible coating results every time and achieves excellent process reliability. Excellent Design – This Airless gun combines a compact and robust design with impressive functionality. High-Viscosity Materials – The Wagner Airless guns can be used to process high viscosity materials.	Wagner GA Paint & Dosing Valves are suitable for High Viscosity Materials, i.e. Special Paints, Undercoat Sealers, Thick Oil & Adhesives. Wagner Auto Valves & Guns, excel in daily use thanks to their extreme robustness & very efficient atomisation.
	Top-Coat Paints Primer Paints Corrosion Protection Solvents Textured Paints	Tile Coating Staining Solvents Clear Paints/Varnish Solvents

Product Variants

Description	Valve Seat	Valve Ball	Packing	Nom. Pressure	Material ø	Material Connection	Part No.
Valve GA400DV DN2.6-PTFE-SSt (ET)	Stainless Steel	Stainless Steel	PTFE	400bar	2.6mm	G 1/4″-F	2343359
Valve GA400DV DN2.6-PTFE-TC (ET)	Tungsten Carbide	Tungsten Carbide	PTFE	400bar	2.6mm	G 1/4″-F	2343362

Technical Data

Product Variants	GA250PV DN2.6	GA400PV DN2.6	GA400DV DN2.6
Max. Material Pressure	250bar / 3625psi	400bar / 5802psi	400bar / 5802psi
Control Air Pressure	0.35-0.8MPa / 3.5-8bar / 51-116psi		0.5-0.8MPa / 5-8bar / 73-116psi
Material Viscosity	20-2000mPa-s		20-2000mPa-s
Product pH Value	3.5 – 9		3.5 – 9
Material Temp.	+5°C – +80°C / +41°F – +176°F		+5°C – +80°C / +41°F – +176°F
Operation Temp.	+5°C – +40°C / +41°F – +104°F		+5°C – +40°C / +41°F – +104°F
Switching Frequency	3Hz	3-5Hz	3Hz
Sound Level	<65 dB (A)		<65 dB (A)
Weight	1049g	1057g	1070g

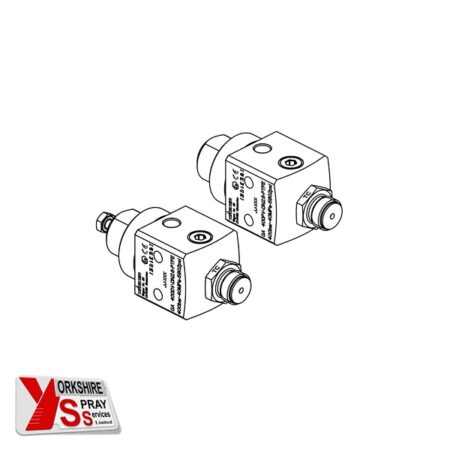

Yorkshire Spray Services Ltd - Valve GA250-400 PV & DV DN2.6-PTFE

Further Information

Manual

GA250 & 400

Yorkshire Spray Services Ltd - Wagner GA250 & GA400 Manual

Download

Additional information

Product Variants	Valve GA250PV DN2.6-PTFE-TC (SP), Valve GA400PV DN2.6-PTFE-TC (ET), Valve GA400DV DN2.6-PTFE-SSt (ET), Valve GA400DV DN2.6-PTFE-TC (ET)
