Wagner GM5000EA Hose Pack

Product Description

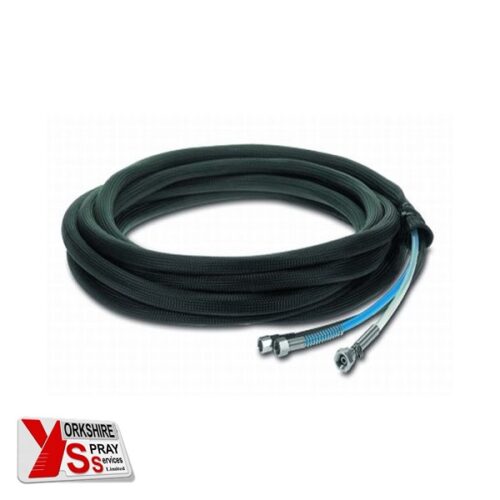

Wagner GM5000EA Hose Pack Twin Hose Set (Air & Fluid) Hose set for Wagner GM5000EA for product pressure of up to 8 bar and high lacquer resistance (>150 KΩ). The Wagner GM5000EA Electrostatic Hose Packs include, a Material/Product Hose, Air Hose, and Gun Cable (Power); available in various lengths.

Features & Benefits

The Wagner GM5000EA Hose Pack, for transporting surface coating fluids, e.g. lacquer, hardener, solvent, separating agent or stains up to working pressure levels of max. 8 bar. Hoses made of PTFE or FEP are recommended for aggressive fluids such as isocyanate-based hardeners.

• For all Fluids – Product hoses made of polyamide or PTFE, suitable for all fluids.
• Optimum handling – AirCoat double hose with protective hose for optimum handling.
• Stainless Steel Hose Fittings – Hose fitting basically made of stainless steel, suitable for all lacquers, solvents, and hardeners.
• High Flexibility – Textile hose reinforcement for good flexibility.

Product Variants

Description	Thread	Air Connection Thread	Paint Resistance	Max. Pressure	Part No.
Hose Package GM5000EA 7.5m	G 1/4″	G 1/4″	>150 KΩ	8bar	2339167
Hose Package GM5000EA 10m	G 1/4″	G 1/4″	>150 KΩ	8bar	2339168
Hose Package GM5000EA 15m	G 1/4″	G 1/4″	>150 KΩ	8bar	2339169
Hose Package GM5000EA 20m	G 1/4″	G 1/4″	>150 KΩ	8bar	2339170
