Wagner GM5000EAC Hose Pack

Product Description

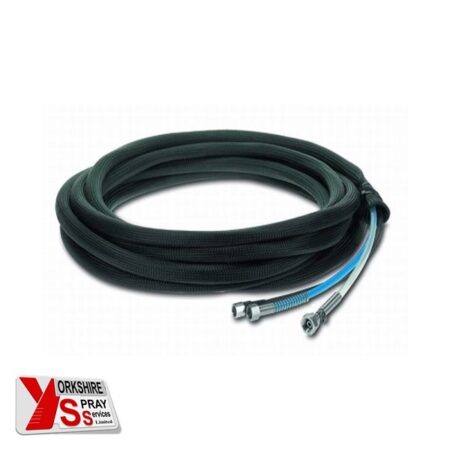

Wagner GM5000EAC Hose Pack Twin Hose Set (Air & Fluid) Hose set for Wagner GM5000EAC for product pressure of up to 250 bar and high lacquer resistance (>150 KΩ). The Wagner GM5000 Electrostatic Hose Packs include, the Material/Product Hose, Air Hose, and Gun Cable (Power); available in various lengths.

Features & Benefits

The Wagner GM5000EAC Hose Pack, for transporting surface coating fluids, e.g. lacquer, hardener, solvent, separating agent or stains up to working pressure levels of max. 530 bar. Hoses made of PTFE or FEP are recommended for aggressive fluids such as isocyanate-based hardeners.

• For all Fluids – Product hoses made of polyamide or PTFE, suitable for all fluids.
• Optimum handling – AirCoat double hose with protective hose for optimum handling.
• Stainless Steel Hose Fittings – Hose fitting basically made of stainless steel, suitable for all lacquers, solvents, and hardeners.
• High Flexibility – Textile hose reinforcement for good flexibility.

Product Variants

Description	Thread	Air Connection Thread	Paint Resistance	Max. Pressure	Part No.
Hose Package GM5000EAC 7.5m	NPS 1/4″	G 1/4″	>150 KΩ	250bar	2339171
Hose Package GM5000EAC 10m	NPS 1/4″	G 1/4″	>150 KΩ	250bar	2339172
Hose Package GM5000EAC 15m	NPS 1/4″	G 1/4″	>150 KΩ	250bar	2339173
Hose Package GM5000EAC 20m	NPS 1/4″	G 1/4″	>150 KΩ	250bar	2339174
