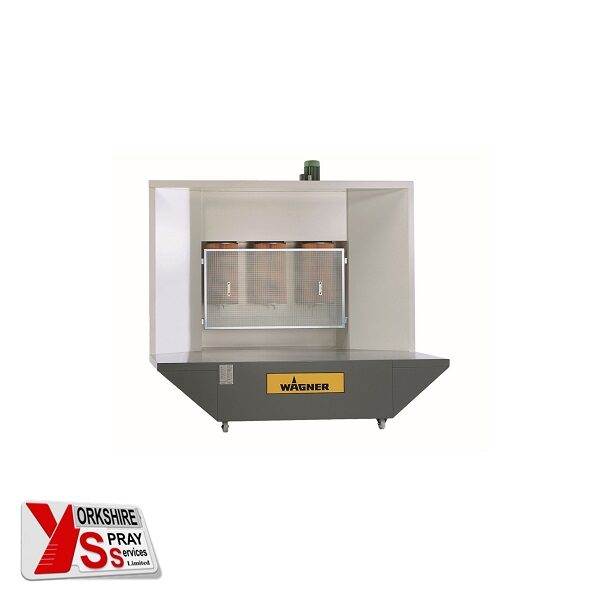

Wagner ID Spray Wall

Product Description

The Wagner ID Spray Wall, The ID spray wall is especially suited for the coating of large parts in one colour operation or for frequent color changes.

Features & Benefits

Thanks to its numerous variants, the ID booth line may be employed for coating individual parts, for coating small volume productions and anything in between.

• Slanted air baffles for directing the aircurrent
• Capable of being integrated in automatic coating systems with flow line operation.
• Base frame with stainless steel floor plate
• Robust, scratch resistant floor
• Booth on casters
• Mobile

Technical Data

Wagner ID Spray Wall Min. Input Voltage 220v/380v Rated Power, Drive Motor 2.2 – 2.2kW Min. Input Frequency 50 – Hz Filter Surface Area 30 – m² Number of Filter Cartridges 3 – Pieces Air Volume 4000 – m³/h Max. Air Consumption 30 – Nm³/h
