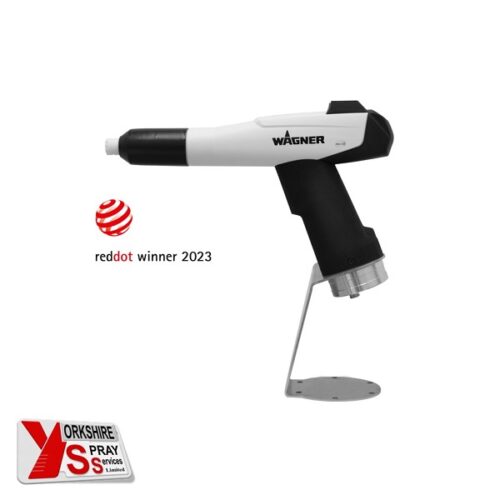

Wagner PER-X1 Basic F Gun

Product Description

YorkshireSprayServicesLtd-WagnerAutomaticPowderSolutions-WagnerPEA-X11 YorkshireSprayServicesLtd-WagnerAutomaticPowderSolutions-WagnerPEA-X16 YorkshireSprayServicesLtd-WagnerAutomaticPowderSolutions-WagnerPEA-X15 YorkshireSprayServicesLtd-WagnerAutomaticPowderSolutions-WagnerPEA-X19 YorkshireSprayServicesLtd-WagnerAutomaticPowderSolutions-WagnerPEA-X12 YorkshireSprayServicesLtd-WagnerAutomaticPowderSolutions-WagnerPEA-X18 YorkshireSprayServicesLtd-WagnerAutomaticPowderSolutions-WagnerPEA-X110

The Wagner PER-X1 Basic F Gun is the new generation of robot automatic guns. The powerful high-voltage cascade ensures a very high application efficiency. With the optimized nozzle system, very thin and uniform coating thicknesses are achieved, and the powder consumption is reduced. With various nozzles and accessories, the PER-X1 can be adapted to a wide range of specific coating tasks. The new angled nozzles, for example, can be used to reach difficult spots on the workpiece. With the angled adapter, this advantage can be extended even further. Even with difficult metallic and effect powders, high coating quality can be achieved with the new guns. The special modular design of the nozzle system minimizes wear part costs. All electronic components are integrated into the robust gun body, which is designed for a long service life with low service costs. The basic version of the gun the optionally available brackets (Single or Twin; Inside or Outside).

Features & Benefits

With its modular design and the variety of accessories, the new Wagner PER-X1 gun family enables a wide field of applications for all kinds of customer requirements. Thanks to their flexibility, the guns ideally meet the high demands of today’s production processes. The PER-X1, in turn, can be combined with various robot mounts for single or dual use.

• Excellent Coating Results – The long-lasting and powerful high-voltage cascade ensures a high degree of application efficiency.
• Very Thin & Uniform Coating Thickness – With its optimized nozzle system, thinner and more uniform coating thicknesses can be applied. This contributes to a reduction in powder consumption.
• Flexible Applications – The extensive range of accessories enables the adaptation to specific coating tasks.
• Compatibility Across the X1 Gun Families – The nozzles and most accessories can be used in all X1 gun families (PEA-X1, PEM-X1 and PER-X1).
• Homogeneous Powder Cloud – Providing an even coating thickness.

Depending on the application, various nozzles are available that are also compatible with the PEA-X1 manual gun that is part of the product family. The new angled nozzles, for example, can be used to reach difficult spots on the workpiece. With the angled adapter, this advantage can be extended even further. Even with difficult metallic and effect powders, high coating quality can be achieved with the new guns.

Product Variants

Technical Data

Max. Powder Output 450g/min Output Current 0 µA – 120 µA Output Voltage 0 kV – 100 kV Frequency 19 – 30kHz Operating Temperature 5 – 40°C Max. Powder Output 450g/min Air Inlet Pressure 0.3 MPa | 3.0bar | 44psi Polarity Negative or Positive Protection Class IP54 Weight 645g
