Product Description

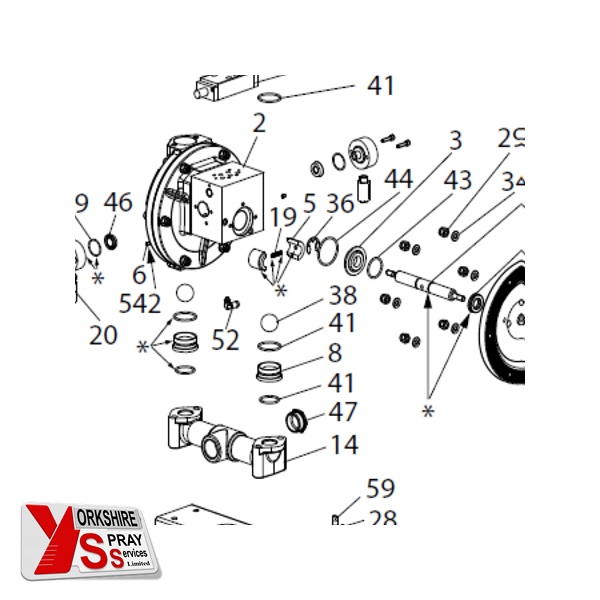

The Wagner PM500 Seal Kit includes wearing parts for the Wagner PM500 U509.A0 (Nickel-Plated) and U509.A0A (Aluminium), low pressure diaphragm pumps. Regular maintenance and timely replacement of wearing parts ensure a consistent application. Always follow Wagner’s operating and service manuals when carrying out work to maintain the required level of safety.
Service Kit Details
 |
|
Service Set PM500 U509.A0 & A0A |
|
NOTE
Only a Wagner Service Centre or a suitably trained person may carry out repairs and replace parts. Only repair and replace parts that are listed in the Chapter “Spare parts” and that are assigned to the unit. Before all work on the device and in the event of work interruptions:
-
-
- Relieve pressure from spray guns and devices.
- Secure spray guns against actuation.
- Switch off the energy/compressed air supply.
- Disconnect the control unit from the mains.
Always follow Wagner’s operating and service manuals when carrying out work to maintain the required level of safety.
PM500 Manual
Download
|
|
|
|
|
|
| Manual No |
Description |
Set QTY |
Part Numbers |
| 17 |
PM500 Diaphragm Motor (Black) |
2 |
G705.06 |
| 18 |
Screw Gasket M. |
6 |
G709.07 |
| 39 |
O’Ring |
2 |
L126.06 |
| 40 |
O’Ring |
2 |
L151.06 |
| 41 |
O’Ring |
6 |
L107.06 |
| 42 |
O’Ring |
6 |
L123.06 |
| 43 |
O’Ring |
2 |
L116.06 |
| 44 |
O’Ring |
2 |
L127.06 |
| 45 |
Di 18 Seal |
2 |
L408.06 |
| 46 |
Outlet Seal |
2 |
L415.06 |
| Wagner PM500 Seal Kit Part No. |
T933.00 |
