Wagner SF23 CR | Injection Set

Product Description

The Wagner Super Finish SF23 CR is a special development for use as a pump for injection, masonry restoration, for combating moisture and water damage and for concrete restoration with epoxy, polyurethane PU, SPUR foam or aqueous solutions. The Wagner SF23 CR is a robust and durable and reliable, ideal for a wide variety of materials.

The SF23 CR processes a wide variety of materials and is suitable for epoxy and polyurethane (PU), SPUR foams and aqueous solutions. The unit can be completely controlled and works reliably even in the low pressure range crucial for quality concrete injection. The heating nozzle can be used with all FineCoat guns.

Features & Benefits

• Compact diaphragm pump with QLS Long-stroke technology, thanks to a low stroke frequency, the components are subjected to significantly less stress and thus offer a longer service life and lower maintenance costs.
• SF23 CR Model maintains a longer service life due to stainless steel parts – suitable for the processing of corrosive materials, such as those used in Concrete Repair.
• Higher-quality service life means longer lasting parts and improved performance over the unit’s lifetime in comparison with a standard SF23 Pro.
• Improved construction for improved operational reliability in combination with the SuperFinish’s high performance brushless motor.
• Injection ball valve with whip for ease of use when applying products used in concrete repair.
• Included in the bundle is the ball valve, 5L hopper and 15m DN6 high pressure hose.

PROFESSIONAL INJECTION & CRACK REPAIR

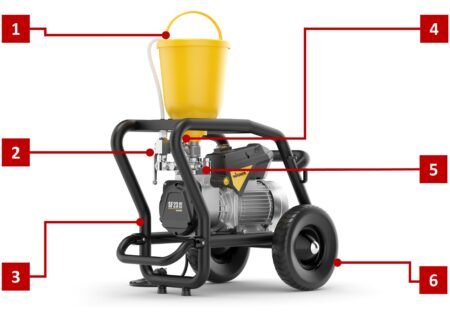

1 | Hopper Compatible – Optional, can be used with 5ltr Hopper as pictured or Suction & Return Hose.   2 | Ball Valve – The SF23 CR employs a Ball Vlave instead of a Prime/Spray Valve, especially fo injection applications.   3 | 2-Position Cart – ForThe SF23 CR has a Horizontal & Vertical opertaion Cart/Trolley with Telescopic Handle.

4 | Pusher Valve – The Pusher Valve is used to release the ball when sticking for reliable operation.   5 | Stainless Steel Construction – All material wetted parts are stainless steel to service many application types.   6 | Robust Design – heavy duty tyres making the SF 23Pro CR the perfect partner for most types of terrain.

Modular Trolley				Suitable Material
The Wagner SuperFinish SF23 CR has a robust trolley with telescopic handle for easy transportation. The trolley also has two position variants, one for Rigid or Flexible suction pipe for large applications and one for hopper, ideal for smaller areas or batch work.				The SF23 CR is a powerful diaphragm pump which enables the processing of highly viscose materials, suitable for epoxy and polyurethane (PU), SPUR foams & aqueous solutions.

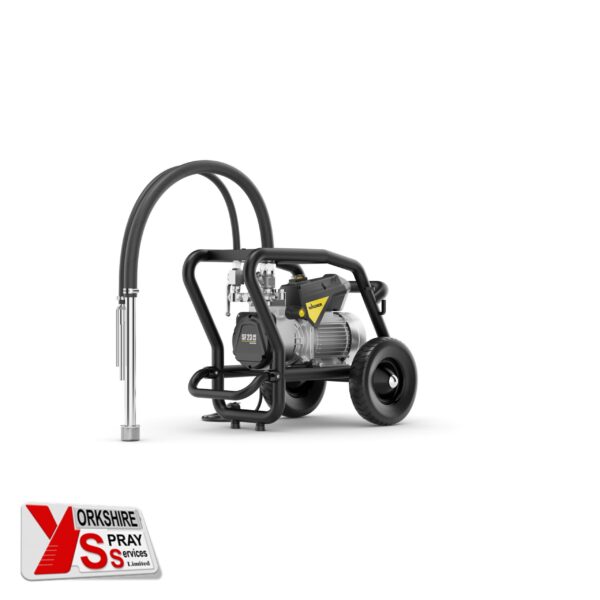

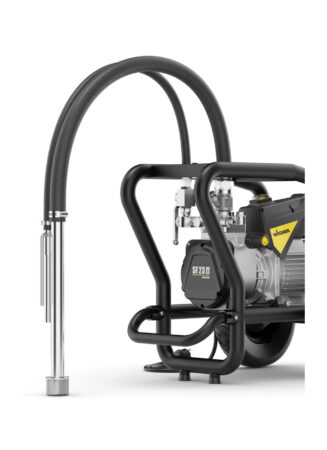

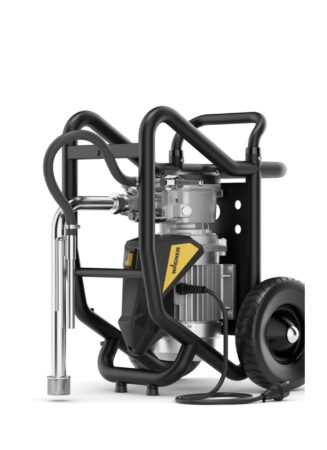

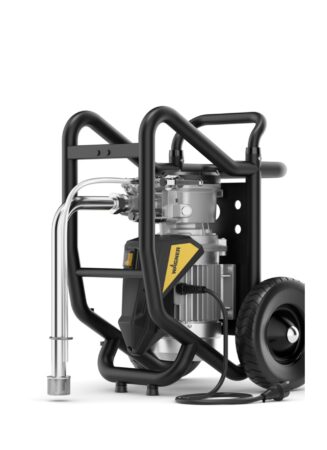

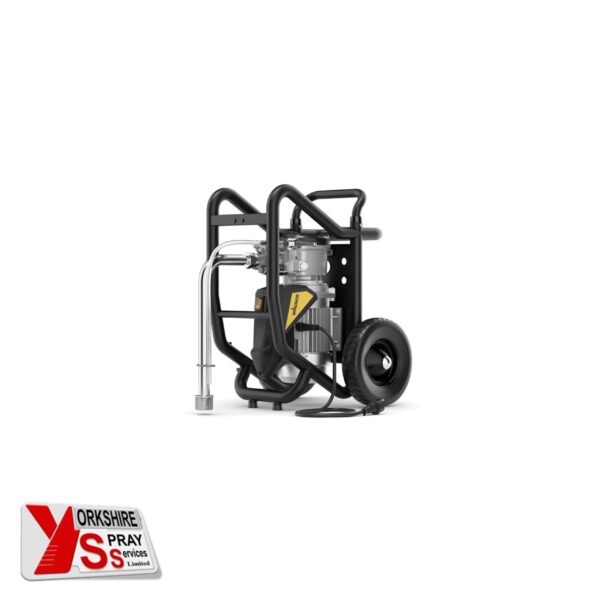

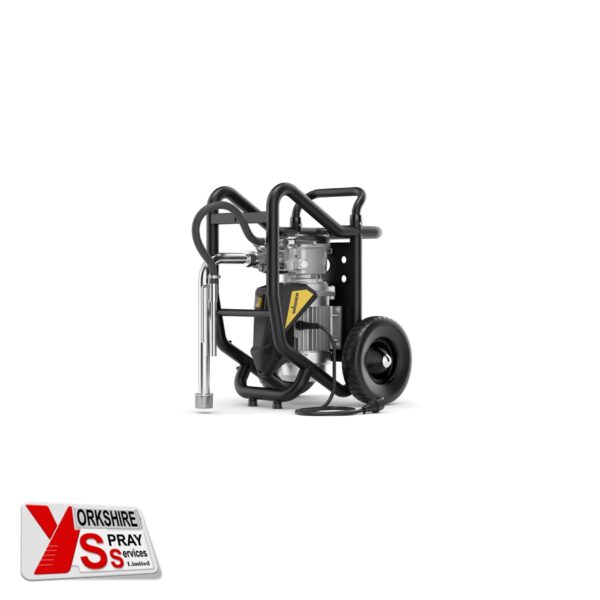

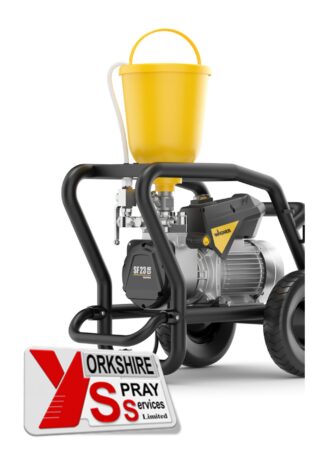

Hopper Feed for Small Quantites	Optional – Flexible Suction System for Larger Projects	Optional – Rigid Suction with Flexible Return	Optional – Rigid Suction with Rigid Return	Water & Solvent Based Lacquers Oils Release Agents Synthetic Resin Based PVC Paints 2-Component Paints Primers Fillers Chemical & Abrasives Materials	Fire Protection Rust Protection Dispersion Latex Adhesives Sealants Facade Coatings Roof Coatings Floor Coatings Silicone

Technical Data

Super Finish SF23 CR Power 240v Motor 1.3kW Max. Pressure 250bar (3600psi) Max. Viscosity 20,000mPas Max. Material Temp 43°C Max. Tip Size 0,023″ Max. Delivery Rate 2.6l/min Sound level (dB(A) 70 dB(A) Weight 27kg

The Super Finish 23 Electric Diaphragm Pumps. Ideal for residential, commercial & maintenance applications. Wagner offers a 3 + 2 year on the Super Finish Range. Standard is 3 years (5 if registered). To Register CLICK HERE

Box Contents		Further Information

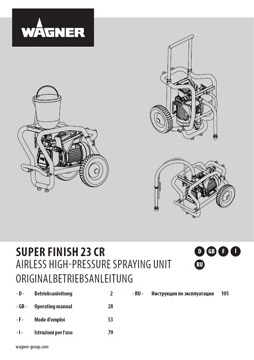

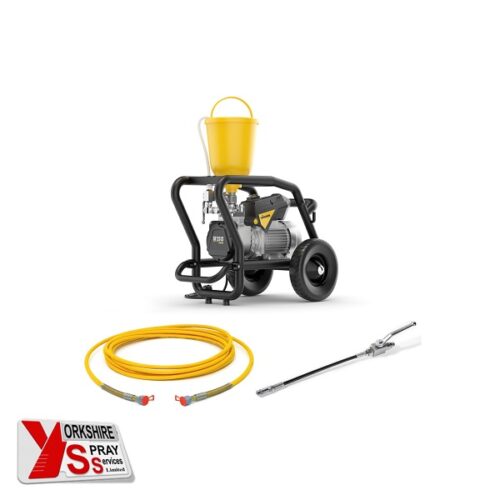

SuperFinish23 CR | Injection Set SF23 CR Diaphragm Pump Trolley Hopper 5ltr High Pressure Hose DN6 15m Injection Ball Valve with Whip Wagner Part No. 2415601		Brochure Download	Manual Download
