Anest Iwata AZ3 HTE P.A.S. Gun

Sale!

Original price was: £351.81.Current price is: £334.50. + VAT

The Anest Iwata AZ3 HTE P.A.S. (Pressurised Assisted System) Concept Gravity Gun, High Transfer Efficiency centre post gravity feed spray gun.

Yorkshire Spray Services Ltd - Anest Iwata Authorised Service Centre & Distributor
Yorkshire Spray Services Ltd - Standard Delivery

  NEXT working day delivery for orders placed before 12.00pm.   Delivery on back ordered products approx. 4 – 7 days delivery


Clear
Quantity

Product Description

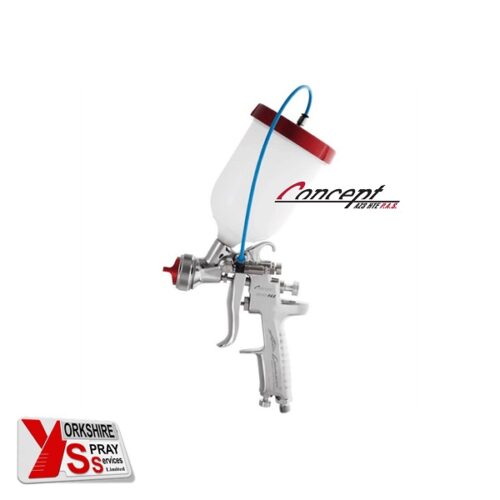

The Anest Iwata AZ3 HTE P.A.S. Gun (Pressurised Assisted System). High Transfer Efficiency centre post gravity feed spray gun. The perfect gun for primer and heavy bodied materials, the AZ3 HTE is a must have in every body shop.

The unique Pressure Assisted System (PAS) and the specially designed air cup on the Anest Iwata AZ3 HTE P.A.S. Gravity Gun ensures most efficient spraying of high viscosity materials, such as thixotropic water bourne paints for wood, without need for pumps or pressure tanks.


Features & Benefits


Anest Iwata AZ3 HTE Pressure Assited Gravity Gun feature is a separation of the air control and air hose, along with a newly designed air cap and a polished body for easier cleaning and maintenance.

  • All fluid passages are in stainless steel
  • High quality filler spray gun
  • Flat & Thin™ spray pattern with fine atomisation
  • Trigger easy to dose
  • Simple operation of the control knobs, for right and left handers
  • Costs for spare parts replacement extremely customer friendly
  • Complete with 600ml Pot

Pressurised Assisted System

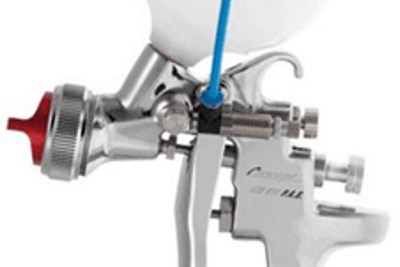

Mini Pressure Regulator for easy precise setting of the cup pressure.

Yorkshire Spray Services Ltd - Anest Iwata Spray Finishing - Anest Iwata AZ3 HTE P.A.S - Mini Regulator

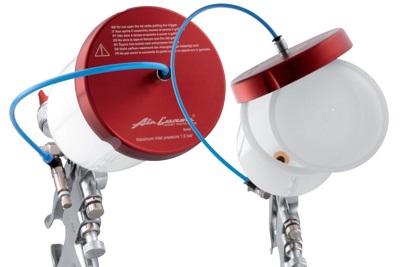

Metal Lid


The 600ml Pot comes with a metal lid, sturdy and resistant, for heavy duty use.

Yorkshire Spray Services Ltd - Anest Iwata Spray Finishing - Anest Iwata AZ3 HTE P.A.S - Heavy Duty Metal Lid


As a main distributor for Anest Iwata we can provide high quality equipment from the HTE and HIGH T.E.C. range of spray guns which help improve your paint finishing, reduce your painting costs and increase the profitability of your painting operation.


Product Variants & Technical Data


Description Fluid Nozzle Size [mm] Air Pressure@ Gun Inlet [bar] Air Consumption [Nl/min] Fluid Output [ml/min] Fan Pattern [mm] Pot Type & Size [ml] Part No.
Anest Iwata AZ3 HTE-P.A.S. ø1.3 1.3 2.5 286 190 210 PCGP-6B-2B-AZ/600 W0SPG88AG13C
Anest Iwata AZ3 HTE-P.A.S. ø1.5 1.5 2.5 286 260 230 PCGP-6B-2B-AZ/600 W0SPG88AG15C
Anest Iwata AZ3 HTE-P.A.S. ø1.8 1.8 2.5 286 396 230 PCGP-6B-2B-AZ/600 W0SPG88AG18C
Anest Iwata AZ3 HTE-P.A.S. ø2.0 2.0 2.5 286 410 250 PCGP-6B-2B-AZ/600 W0SPG88AG20C

Further Information


Anest Iwata AZ3 P.A.S.

Yorkshire Spray Services Ltd - Anest Iwata Spray Finishing - Anest Iwata AZ3 HTE P.A.S Concept Gravity Gun

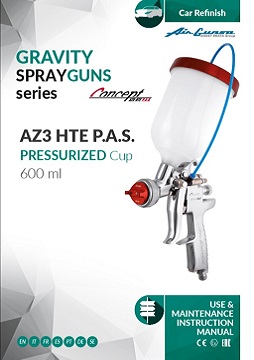

Manual

Download

Additional information

Product Variant

Anest Iwata AZ3 HTE P.A.S Concept 1.3mm, Anest Iwata AZ3 HTE P.A.S Concept 1.5mm, Anest Iwata AZ3 HTE P.A.S Concept 1.8mm, Anest Iwata AZ3 HTE P.A.S Concept 2.0mm
