Anest Iwata W400 Bellaria Gun

Sale!

Original price was: £405.50.Current price is: £385.25. + VAT

Anest Iwata W400 Classic Plus High TEC Spray Gun – Low air volume for Primers, Base Coats and Lacquers. Specially designed for atomising water based coatings, this spray gun also allows a very fine atomisation of solvent based paints, with an exceptionally High Transfer Efficiency.

Yorkshire Spray Services Ltd - Anest Iwata Authorised Service Centre & Distributor
Yorkshire Spray Services Ltd - Standard Delivery

  NEXT working day delivery for orders placed before 12.00pm.   Delivery on back ordered products approx. 4 – 7 days delivery


Clear
Quantity

Product Description


Anest Iwata W400 Bellaria Classic Plus Gun High TEC, with low air volume makes it ideal for Primers, Base Coats and Lacquers. Specially designed for atomising water based coatings, this spray gun also allows a very fine atomisation of solvent based paints, with an exceptionally High Transfer Efficiency, the Anest Iwata W400 Bellaria Classic Plus is suited to spray painting in the body shop sector.


Features & Benefits


The W400 Bellaria is a centre post gravity feed spray gun with high transfer efficiency control and superior atomisation.

  • Universal Spray Gun for industrial coatings
  • Fine atomisation spray pattern
  • Better paint coverage & faster operation
  • Light weight ergonomic design & Gun head weight 380g
  • Suitable for both Solvent & Water Based Coatings
  • Easy to clean chrome body
  • Ideal for medium to large paint jobs in the auto refinish industry
  • Complete with 600ml Pot
Certificate of Compliance issued by THATCHAM certifies that  “Transfer Efficiency” achieved with the materials detailed in the test report were:

Two Coat System

  • Primer : 92.0 %
  • Solid Colour: 76.9%
  • System: 84.5%
Three Coat System

  • Primer : 92.0%
  • Basecoat: 76.9%
  • Clear Lacquer: 74.7%
  • System: 81.0%
Yorkshire Spray Services Ltd - Anest Iwata W400 Bellaria Classic Plus Side

Technical Data


Anest Iwata Part No. Fluid Nozzle Size [mm] Air Pressure@ Gun Inlet [bar] Air Consumption [Nl/min] Fluid Output [ml/min] Fan Pattern [mm] Air Cap # Pot Type & Size [ml]
13328511P 1.0 2 250 130 200 BA4-1 PCG.6PE/600
13328512P 1.2 2 250 180 220 BA4-1 PCG.6PE/600
13328513P 1.3 2 270 220 280 BA4-2 PCG.6PE/600
13328514P 1.4 2 270 250 300 BA4-2 PCG.6PE/600
13328516P 1.6 2 270 285 330 BA4-2 PCG.6PE/600
13328518P 1.8 2 270 360 375 BA4-2 PCG.6PE/600
13328519P 2.0 2 270 375 390 BA4-2 PCG.6PE/600

Further Information


Manuals

Anest Iwata W400

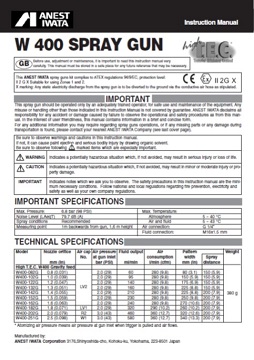

Yorkshire Spray Services Ltd - Anest Iwata W400 Bellaria Gravity Gun Manual

Download

SP14276,SP14277,SP14278,SP14153,SP14173,SP14120,SP14280,SP14174

Additional information

Nozzle Size

Anest Iwata W400 Bellaria Classic Plus 1.0mm, Anest Iwata W400 Bellaria Classic Plus 1.2mm, Anest Iwata W400 Bellaria Classic Plus 1.3mm, Anest Iwata W400 Bellaria Classic Plus 1.4mm, Anest Iwata W400 Bellaria Classic Plus 1.6mm, Anest Iwata W400 Bellaria Classic Plus 1.8mm, Anest Iwata W400 Bellaria Classic Plus 2.0mm
