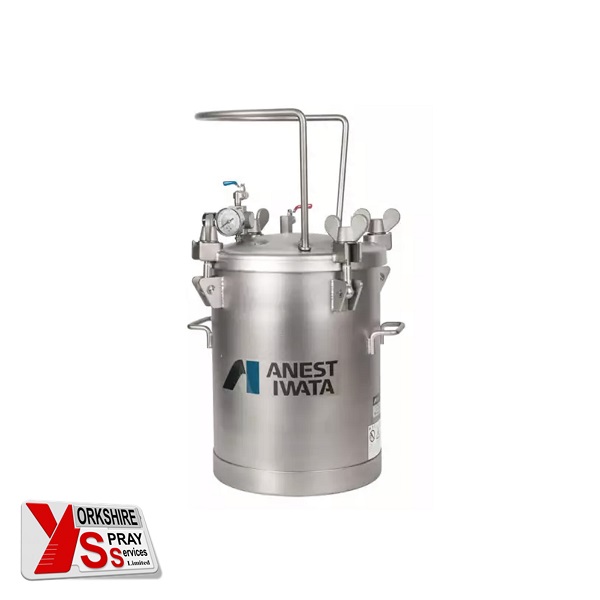

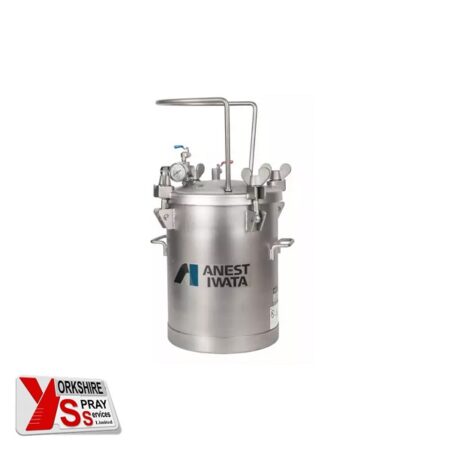

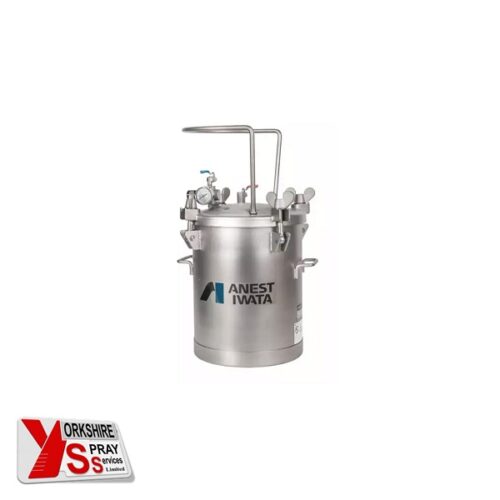

Anest Iwata PET-N Pressure Pot

Product Description

The Anest Iwata PET-N Pressure Pot, low pressure system for feeding paint for the spray guns and other pneumatic equipment. The system allows the correct feeding of the fluid output at a stable pressure, ideal for a wide range of applications. Available in three different capacities: 10Ltr, 30Ltr & 50Ltr.

Features & Benefits

The Anest Iwata PET-N Pressure Pot (Tanks), in stainless steel. The pressure inside the pot/tank allows spraying the paint with a pressure between 0 and 7 bar (700kpa). The possibility to adjust the product pressure improves the quality of application and facilitates the flow of highly viscous products. The body of the pot/tank has six fixing clamps (four in the 10lt version), guaranteeing the perfect tightness of the system, and with two lifting handles to facilitate easy handling the whole unit.

• Air inlet connection complete with ball valve.
• Fluid outlet connection complete with ball valve.
• Air pressure regulator provided with pressure gauge for checking the inner pressure.
• Safety valve and an exhaust valve to drain pressure.

Technical Data

Product Variant	PET-10 N	PET-30 N	PET-50 N
Pot/Tank Capacity	10Ltr	30Ltr	50Ltr
Max. operating air pressure:	7 bar (0.7 MPa)
Max. fluid pressure	7 bar (0.7 MPa)
Max. air inlet pressure:	7 bar (0.7 MPa)
Operating supply pressure:	from 0 to 7 bar
Air inlet joint:	G 1/4” M
Fluid outlet joint:	G 3/8” M
Paint filter 40Mesh:	ø51mm	ø78mm	ø78mm
Operating Temperature	5-40 °C
Fluid Passages	AISI 303, AISI 304
Weight	15,3 Kg	20,4 Kg	25,6 Kg
