Name: Walther PILOT 2K Bonding Gun
SKU: 40838
Price: 918.75 GBP
Availability: InStock

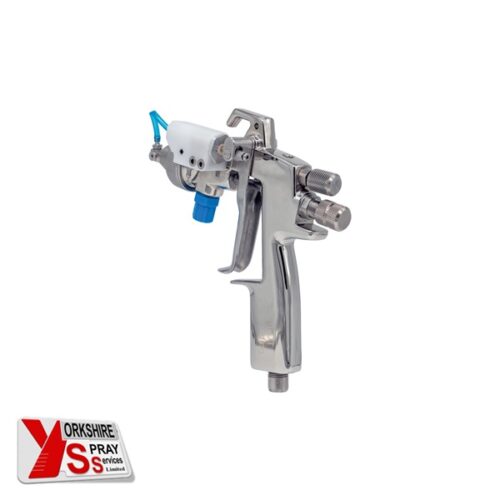

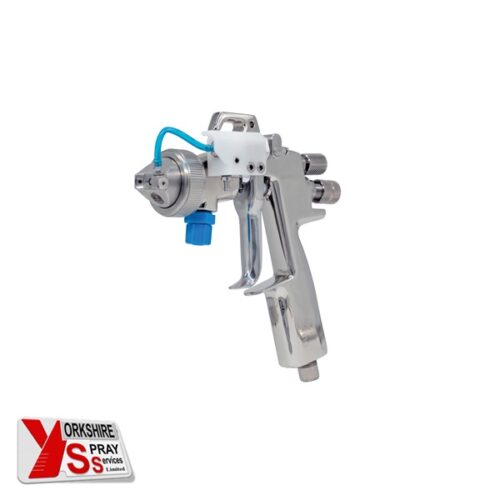

Walther PILOT 2K Bonding Gun

Yorkshire Spray Services Ltd - Walther Pilot Adhesive Systems - Walther Pilot AirCap Wide Jet - Part No. V1182003003

Yorkshire Spray Services Ltd - Walther Pilot Adhesive Systems - Walther Pilot AirCap Round Jet - Part No. V1182103003

£918.75 + VAT

Walther PILOT 2K Bonding Gun, Two-component dispersion adhesive gun for precise application of 2-component adhesive using the external mixing method. With precise round wide jet control and various air cap combinations, mixing ratios of approx. 4:1 to 12:1 can be achieved.


	NEXT working day delivery for orders placed before 12.00pm. Delivery on back ordered products can be up to 4 to 5 weeks delivery

Product Variant

Clear

Quantity

SKU: N/A Conventional Guns, Pressure Guns, Walther PILOT Adhesive Application

Description Additional information Reviews (0)

Product Description

Introducing the new Walther PILOT 2K Bonding Gun for Adhesive Applications. Designed to improve production efficiency, it offers greater precision and weighs around 30% less thanks to its new POM shuttle. This lighter design reduces operator fatigue while maintaining excellent control. Enhanced sealing technology also provides wear-free performance and dependable long-term operation, even in demanding applications. Material flow is controlled directly within the shuttle, enabling more accurate dosing. A redesigned trigger and new joint driver provide better control of the B-component needle for consistently clean, precise operation.

The Walther PILOT 2K Bonding Gun processes two-component dispersion adhesives through external mixing, delivering precise and repeatable results. Its adjustable round-to-flat spray pattern and interchangeable air-cap combinations support mixing ratios from approximately 4:1 to 12:1, providing a versatile solution for a broad range of applications.

Features & Benefits

Technical Description

Walther PILOT 2K Bonding Gun is designed exclusively for two-component dispersion adhesives. It features a reinforced B-component shuttle assembly, a protective plate positioned in front of the shuttle, and fine control of the B-component material flow.

- Precise Adjustment Options – The PILOT 2K includes round-to-wide spray control for precise pattern adjustment. Different air-cap combinations support mixing ratios of approximately 4:1 to 12:1.
- B-Component – A material-flow regulator allows the activator level to be adjusted as needed. Turning the adjustment screw restricts the flow.
- Optimal Application – The system reduces material consumption while maintaining the correct mixing ratio.
- The AirCap can be positioned horizontally or vertically as required.
- All gun components that come into contact with the material are made of stainless steel.

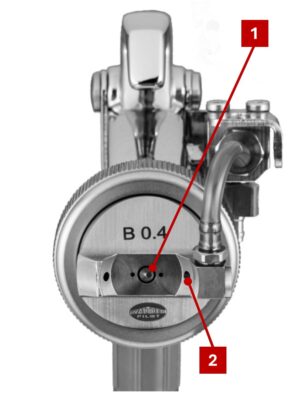

Yorkshire Spray Services Ltd - Walther Pilot Adhesive Applications - Walther Pilot 2K Bonding Detail

The PILOT 2K Bonding spray gun is designed to apply two-component dispersion adhesives. A suitable feed unit supplies material to the gun. The mixing ratio is determined by the selected nozzle sizes and the supply pressure.

1 | Component A is discharged through the Nozzle.

2 | Component B is discharged through an opening in the aircap. The two components mix in the spray jet outside the gun before being applied to the workpiece.

Technical Data

Application	AirSpray, Manual Coating
Processable Material	Water-Based
Max. Material Pressure A Comp.	6bar
Max. Material Pressure B Comp.	3bar
Max. Viscosity A Comp.	Approx. 1500mPas
Max. Viscosity B Comp.	Approx. 10mPas
Nozzle Size A Comp.	0.8mm – 1.4mm
Nozzle Size B Comp.	0.3mm – 0.5mm
Operating Temperature	0°C – 43°C
Application Area	Adhesive Bonding
Material Wetted Parts	Stainless Steel
Sound Level	0dB(A) – 83dB(A)
Weight (Net/Gross)	398g / 555g
Certification	Complies with ATEX & CE Directives

Further Information

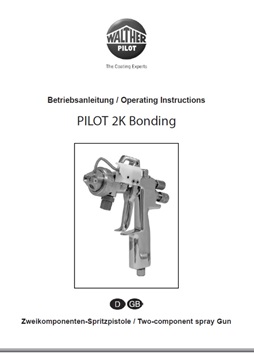

Yorkshire Spray Services Ltd - Wagner Walther Pilot 2k Bonding Gun Manual (POM Acetal B Component)

Manual

Yorkshire Spray Services Ltd - Walther Pilot - Walther Pilot 2K Bonding Gun with POM Component B Compl.

POM – Shuttle B Component

Download

Manual

Yorkshire Spray Services Ltd - Walther Pilot - Walther Pilot 2K Bonding Gun with Metal Component B Compl.

Metal – Shuttle B Component

Download

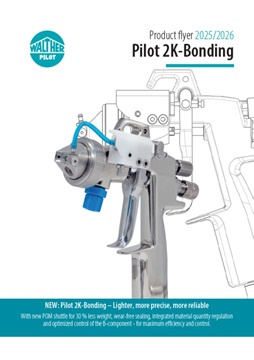

Yorkshire Spray Services Ltd - Walther Adhesive Applications - Walther Pilot 2K-Bonding Gun Flyer

Brochure

Download

V1182503083,V1182503103,V1182503123,V1182503143,V1182504083,V1182504103,V1182504123,V1182504143,V1182505083,V1182505103,V1182505123,V1182505143,V1182603083,V1182603103,V1182603123,V1182603143,V1182604083,V1182604103,V1182604123,V1182604143,V1182605083,V1182605103,V1182605123,V1182605143,SP82016

Additional information

Product Variant

PILOT 2K Bonding – A0.8/B0.3 Wide Jet, PILOT 2K Bonding – A1.0/B0.3 Wide Jet, PILOT 2K Bonding – A1.2/B0.3 Wide Jet, PILOT 2K Bonding – A1.4/B0.3 Wide Jet, PILOT 2K Bonding – A0.8/B0.4 Wide Jet, PILOT 2K Bonding – A1.0/B0.4 Wide Jet, PILOT 2K Bonding – A1.2/B0.4 Wide Jet, PILOT 2K Bonding – A1.4/B0.4 Wide Jet, PILOT 2K Bonding – A0.8/B0.5 Wide Jet, PILOT 2K Bonding – A1.0/B0.5 Wide Jet, PILOT 2K Bonding – A1.2/B0.5 Wide Jet, PILOT 2K Bonding – A1.4/B0.5 Wide Jet, PILOT 2K Bonding – A0.8/B0.3 Round Jet, PILOT 2K Bonding – A1.0/B0.3 Round Jet, PILOT 2K Bonding – A1.2/B0.3 Round Jet, PILOT 2K Bonding – A1.4/B0.3 Round Jet, PILOT 2K Bonding – A0.8/B0.4 Round Jet, PILOT 2K Bonding – A1.0/B0.4 Round Jet, PILOT 2K Bonding – A1.2/B0.4 Round Jet, PILOT 2K Bonding – A1.4/B0.4 Round Jet, PILOT 2K Bonding – A0.8/B0.5 Round Jet, PILOT 2K Bonding – A1.0/B0.5 Round Jet, PILOT 2K Bonding – A1.2/B0.5 Round Jet, PILOT 2K Bonding – A1.4/B0.5 Round Jet
