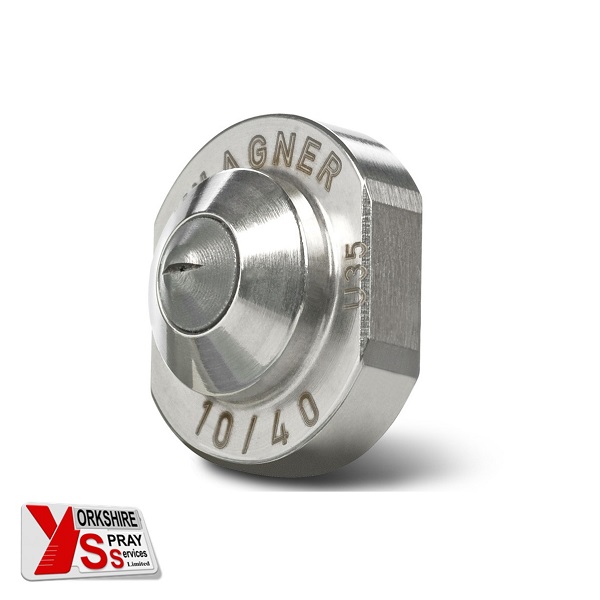

Wagner ACF3000 Plus+ Nozzle

Product Description

Wagner ACF3000Plus+, AirCoat nozzles are characterised by their soft and fine atomisation. The wide range enables optimal adaptation to the application. Wagner AirCoat, when quality matters, Swiss precision is at the core of this technology. AirCoat precision nozzles are manufactured under application of the most advanced processes and meet the requirements of the latest paint systems. Wagner ACF3000 Nozzles were designed specifically for processing high solid paints. We stock a wide range of flat ACFPlus+, ACF and round ACR spray nozzles for perfect finishing results.

Features & Benefits

Thanks to a continual development process and practically oriented engineering, the “interior” of the Wagner ACF3000Plus+ nozzle has been considerably optimised.

• The larger tungsten carbide cores allow higher process security and manufacturing precision.
• An even longer service life is achieved thanks to the improved quality of the tungsten carbide.
• The new dome geometry and innovative high-tech grinding and erosion processes provide a very fine homogeneous atomisation at low energy consumption (material pressure).
• The low wear also contributes to a reduction in costs.

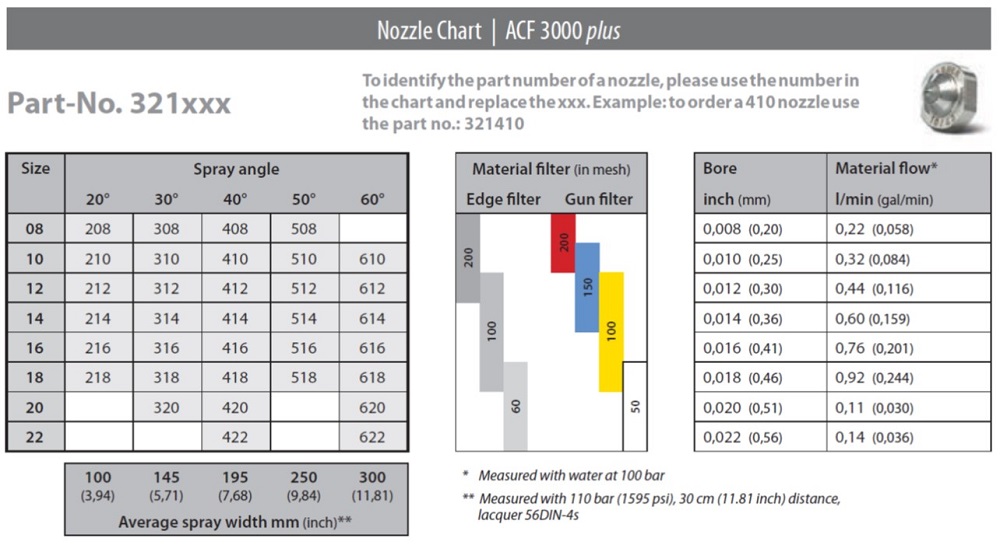

Nozzle & Filter Sizing

321208-8/20,321508-8/50,321210-10/20,321310-10/30,321410-10/40,321510-10/50,321610-10/60,321212-12/20,321312-12/30,321412-12/40,321512-12/50,321612-12/60,321314-14/30,321414-14/40,321514-14/50,321614-14/60,321216-16/20,321416-16/40,321516-16/50,321616-16/60
