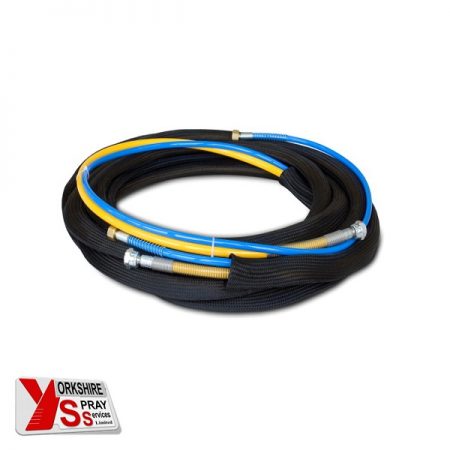

Wagner AirCoat Hose Set

Product Description

Wagner Aircoat Hose Set (Air & Fluid) for use with Wagner GM4100AC, GM4600AC & GM4700AC AirCoat Guns, for working pressure levels of Max. 270bar. The Wagner AirCoat Hose Set, twin hose comprise the standard Wagner HP product hose with PA inner tube, diameter DN3 or DN4 and an air hose DN6 with G¼” fitting. The two hoses are routed in a robust and flexible protective hose made of PA fiber.

Features & Benefits

Wagner AirCoat Hoses, for transporting surface coating fluids, e.g. lacquer, hardener, solvent, separating agent or stains up to working pressure levels of Max. 270bar.

• For all Fluids – Product hoses made of polyamide or PTFE, suitable for all fluids.
• Optimum handling – AirCoat double hose with protective hose for optimum handling.
• Stainless Steel Hose Fittings – Hose fitting basically made of stainless steel, suitable for all lacquers, solvents, and hardeners.
• High Flexibility – Textile hose reinforcement for good flexibility.

The two hoses are routed in a robust and flexible protective hose made of PA fibre, made of PTFE or FEP are recommended for aggressive fluids such as isocyanate-based hardeners.

Product Variants

Description	Thread	Air Connection Thread	Inside Ø	Hose Length	Part No.
AC-Hose DN3-PN270 1/4″ NPS 3.0m PA-T	NPS 1/4″	G 1/4″	3.2	3 Metre	2322656
AC-Hose DN3-PN270 1/4″ NPS 7.5m PA-T	NPS 1/4″	G 1/4″	3.2	7.5 Metre	2309705
AC-Hose DN4-PN270 1/4″ NPS 7.5m PA-T	NPS 1/4″	G 1/4″	4.8	7.5 Metre	2309706
AC-Hose DN4-PN270 1/4″ NPS 10m PA-T	NPS 1/4″	G 1/4″	4.8	10 Metre	2312801
AC-Hose DN4-PN270 1/4″ NPS 15m PA-T	NPS 1/4″	G 1/4″	4.8	15 Metre	2309634
AC-Hose DN4-PN270 1/4″ NPS 20m PA-T	NPS 1/4″	G 1/4″	4.8	20 Metre	2309635
