Wagner GM4700AC Complete

£678.71 £539.99 + VAT

The Wagner GM4700AC Gun has been designed for optimal ergonomics and comfort for a wide range of different users and applications. The gun is lighter, and requires less trigger and holding force, making it even easier to handle and reducing fatigue during operation.


Supplied complete with AirCap, Nozzle ACF3000 & Cage Filter, (See select options below).

Yorkshire Spray Services Ltd - Wagner Authorised Service Centre & Distributor_Industrial Solutions
DELIVERYNext working day delivery for stock items on orders placed before 2.00pm

Delivery Information

Clear
SKU: SP10699 Categories: ,

Product Description

The Wagner GM4700AC Gun has been designed for optimal ergonomics and comfort for a wide range of different users and applications. The gun is lighter, and requires less trigger and holding force, making it even easier to handle and reducing fatigue during operation.

The new Wagner air guidance system generates improved atomization results in every application. The reduced atomization pressure creates an extremely soft spraying pattern. Transfer efficiency of up to 93% achievable.


Features & Benefits


  • Perfect Coating Results – The new WAGNER air guidance system achieves optimal atomization results in every application. The reduced material pressure creates an extremely soft spraying pattern.
  • High Process Reliability – The welded housing is highly reliable, even under the roughest of production conditions.
  • Easy to Clean Nozzle – Clogging can be quickly cleaned by simply reversing the nozzle and flushing it.
  • Optimal Ergonomics – With two different gun sizes that accommodate different users and low trigger and holding forces, these guns are notable for their fatigue-free handling.Wagner GM4700 Cage Filter
  • Ultra-Light – The lightest AirCoat gun on the market, only 526g.
  • Filter – The new Cage Filter has a much longer life time, because of its 53% larger volume to collect the dirt.

AirCoat Technology


The innovative Wagner GM4700AC gun employ the new AirCoat atomization process to produce the finest finishing results ever. Light gun, only 536g with regular handle. Unique tool free removeable filter housing and swivels for air and material connection.

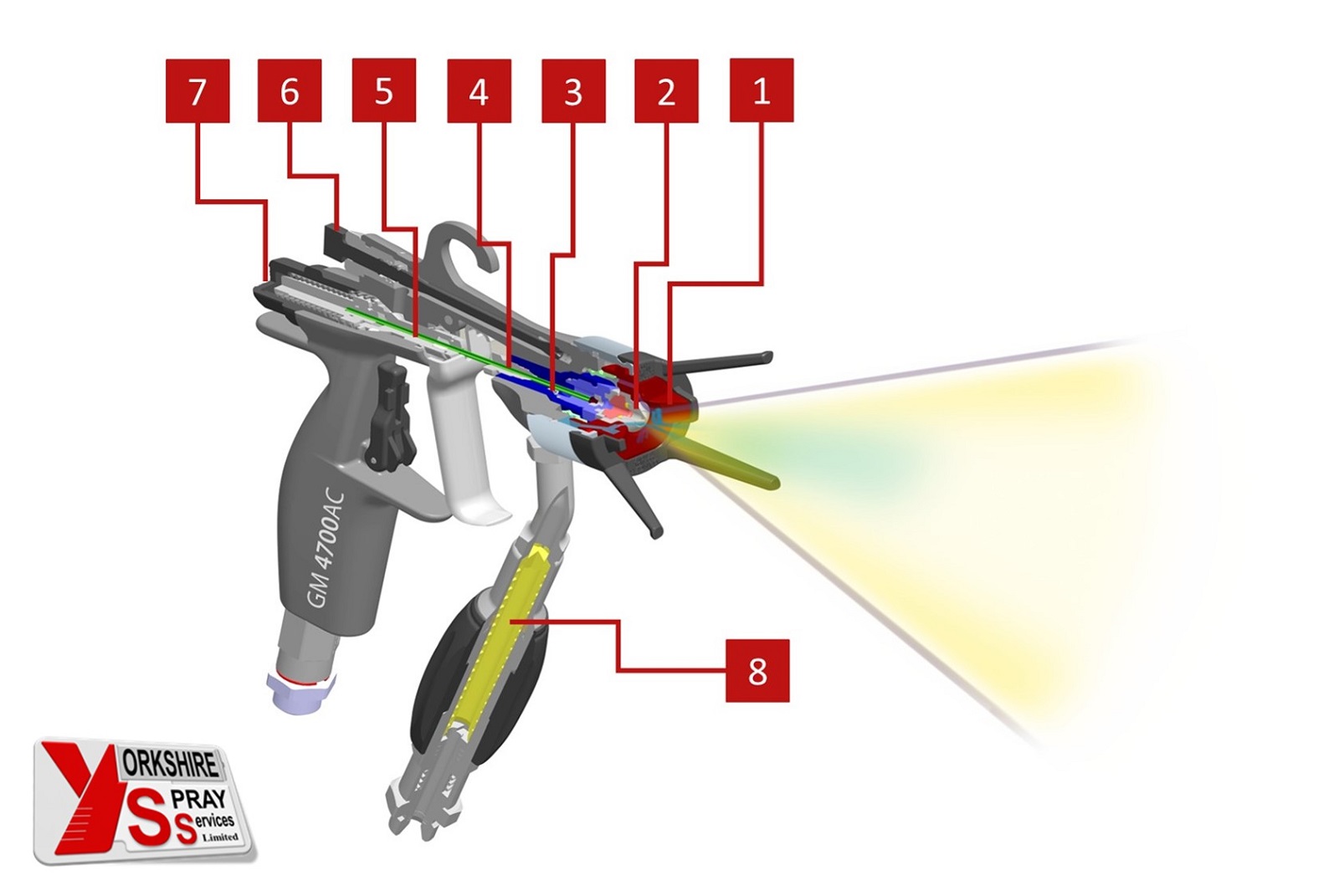

1Aircap

2High Quality Nozzle

3Valve with Tungsten Carbide Seat

4Long Life Packing Cartridge

5Needle (special treatment to reduce wearing)

6Fan Control

7Spring Cap (160 or 250 bar)

8Cage Filter




Technical Data


Max. Material Pressure 250 bar
Max. Material Temperature 55 °C
Material Connection NPSM 1/4″
Air Inlet Pressure 0 – 8 bar
Air Inlet Connection G 1/4″
Ambient Temperature 5 – 40 °C
Max. Sound Level 82 dB(A)
Length 173 mm
Height 216 mm
Weight 597 g
Yorkshire Spray Services Ltd - Wagner Group Authorised Partner

Yorkshire Spray Services Ltd - Wagner GM4700AC Gun

Wagner GM4700AC LV & HV


Further Information


Brochure

Manual

AirCoat

Yorkshire Spray Services Ltd - Wagner AirCoat BrochureOpen

GM4700AC

Yorkshire Spray Services Ltd - Wagner GM4700AC ManualDownload

Additional information

AirCap Type

Wagner GM4700AC AirCap LV (Red), Wagner GM4700AC AirCap HV (Blue)

Nozzle Size

Wagner ACF3000 09/20, Wagner ACF3000 09/40, Wagner ACF3000 11/20, Wagner ACF3000 11/30, Wagner ACF3000 11/40, Wagner ACF3000 11/60, Wagner ACF3000 13/20, Wagner ACF3000 13/30, Wagner ACF3000 13/40, Wagner ACF3000 13/50, Wagner ACF3000 13/60, Wagner ACF3000 15/20, Wagner ACF3000 15/30, Wagner ACF3000 15/40, Wagner ACF3000 15/50, Wagner ACF3000 17/50, Wagner ACF3000 17/60, Wagner ACF3000 17/80, Wagner ACF3000 21/50

Gun Filter

Cage Filter 50m White, Cage Filter 100m Yellow, Cage Filter 150m Blue, Cage Filter 200m Red
