Name: Wagner DV100/400 DN2.6 Dosing Valves
SKU: 36400
Availability: InStock

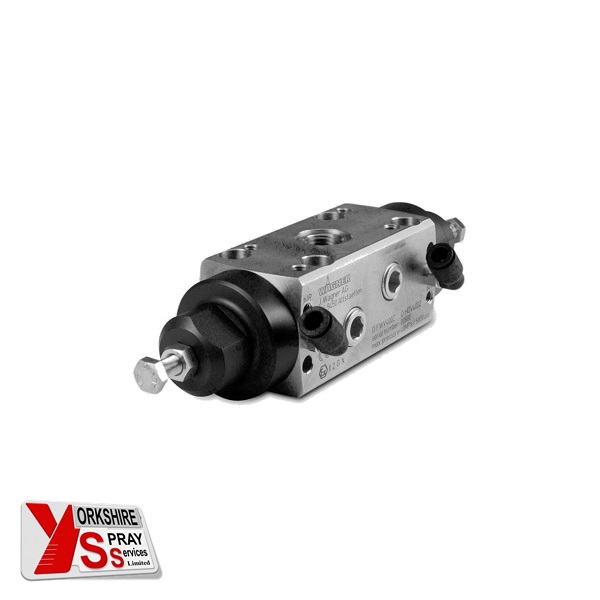

Wagner DV100/400 DN2.6 Dosing Valves

Yorkshire Spray Services Ltd - Colour Change & Dosing - Wagner Valve DV 400-DN2.6-PTFE-TC (SP) - Part No. 2342808

Yorkshire Spray Services Ltd - Colour Change & Dosing - Wagner Valve DV 400-DN2.6-PTFE-TC (ET) - Part No. 2342812

Yorkshire Spray Services Ltd - Colour Change & Dosing - Wagner Valve DV 400-DN2.6-PTFE-SSt (SP) - Part No. 2342810

Yorkshire Spray Services Ltd - Colour Change & Dosing - Wagner Valve DV 400-DN2.6-PTFE-SSt (ET) - Part No. 2342806

Price range: £1,377.19 through £1,701.75 + VAT

The Wagner DV100/400 DN2.6 Dosing Valves Pneumatically driven color change and dosing valve for the complex and precise processing of color and multi-component paints or 2-component system. Excellent flush ability and durability.


	NEXT working day delivery for orders placed before 12.00pm. Delivery on back ordered products approx. 6 – 8 weeks delivery

Wagner Part No. 2342810 | 2342808 | 2342812 | 2342806

SKU: N/A Application Methods, Automatic Guns & Equipment, Material Valves, Twin Control & 2K Systems

Description Reviews (0)

Product Description

The Wagner DV100/400 DN2.6 Dosing Valves. Pneumatically driven color change and dosing valve for the complex and precise processing of color and multi-component paints or 2-component system. Excellent flush ability and durability. Extremely short switching times with spring return for control air relief.

The Wagner Paint & Dosing Valves are characterised by excellent functionality and tangibility with high savings potential. The valves are available in various sizes and designs and completely manufactured from stainless steel. A series of manual ball valves round off the program.

Features & Benefits

Very easy to flush – Small internal volumes and circulation connections for the best flushing.
Made of stainless steel – The Wagner DV100/400 DN2.6 Dosing Valves is made entirely of stainless steel, suitable for all products.
For precise material changes – Rapid-switching pneumatic drive for precise material changes.
Supply precise mixing ratios – Finely adjustable injection valve for accurate mixing ratios.
Durable – Mesamoll or solvent template for long service life.

Product Variants

Description	Valve Seat	Valve Ball	Packing	Nom. Pressure	Material ø	Material Connection	Part No.
Valve DV 100-DN2.6-PTFE-SSt (SP)	Stainless Steel	Stainless Steel	PTFE	100bar	2.6mm	G 1/4″-F	2342810
Valve DV 100-DN2.6-PTFE-TC (ET)	Tungsten Carbide	Tungsten Carbide	PTFE	100bar	2.6mm	G 1/4″-F	2342812
Valve DV 400-DN2.6-PTFE-SSt (ET)	Stainless Steel	Stainless Steel	PTFE	400bar	2.6mm	G 1/4″-F	2342806
Valve DV 400-DN2.6-PTFE-TC (SP)	Tungsten Carbide	Tungsten Carbide	PTFE	400bar	2.6mm	G 1/4″-F	2342808

Technical Data

Product Variants	DV100 DN2.6		DV400 DN2.6
Max. Material Pressure	10MPa / 100bar / 1450psi		40MPa / 400bar / 5802psi
Control Air Pressure	0.35-0.8MPa / 3.5 – 8bar / 51 – 116psi		0.5-0.8MPa / 5 – 8bar / 73 – 116psi
Material Viscosity	20-2000mPa-s		20-2000mPa-s
Product pH Value	3.5 – 9		3.5 – 9
Material Temp.	+5°C – +80°C / +41°F -+176°F		+5°C – +80°C / +41°F -+176°F
Operation Temp.	+5°C – +40°C / +41°F -+104°F		+5°C – +40°C / +41°F -+104°F
Max. Switching Frequency	3Hz	3-5Hz	3Hz	3-5Hz
Sound Level	<65 dB (A)		<65 dB (A)
Weight	1049g	1057g	1070g	1078g
