  • Yorkshire Spray Services Ltd - Wagner VM Controller 500 & 5000

Wagner VM500 & 5000

£1,415.50£1,796.45 + VAT

Wagner has developed the new range of intelligent control units based on advanced technology and long experience. With these new units, all electrostatic parameters can be adapted in real time to provide the best gun performances in any conditions.



£POA Please call for pricing. Discounts may be offered for multiple purchases, or any agreed part exchange
Clear
SKU: N/A Categories: ,

Product Description

Intelligent – Precise – Safe Control unit to drive the electrostatic manual guns GM5000EA and GM5000EAC. Adjustable high-voltage, recipe changes, safety monitoring and many other features.

Wagner has developed the new range of intelligent control units based on advanced technology and long experience. With these new units, all electrostatic parameters can be adapted in real time to provide the best gun performances in any conditions.


Features & Benefits


  • Setting Voltage & Current – For optimal performance of the spray gun, setting voltage and current is essential. Both parameters have to be set in accordance with the material characteristics, environment conditions and workpiece requirements.
  • Conforms with Atex Zone 2 – Wagner electrostatic control units are permitted for Atex Zone 2 and can therefore be placed considerably closer to the workplace. Thus, the correct parameters can be quickly and directly set and optimized.
  • Recipe – Three recipes for voltage and current can be stored. They can be activated directly from the gun or from the control unit. The activation of pre-defined settings enables the painter to select his preferred working conditions.
  • Service Interval – For optimal spraying performance over time, a preventative maintenance of the gun is recommended. The spraying time of the connected gun can be monitored and a service interval can be set.
  • Monitoring of Gun Grounding – The grounding of the gun is monitored by the control unit for maximum safety of the painter. If grounding is interrupted high voltage is cut off
  • Operator Interface – The very easy and simple one-knob adjustment of all parameters makes it possible to change settings very quickly.

Technical Data


VM500

VM5000

Max. Input Voltage 230V 230V
Gun Voltage 80kV 80kV
Gun Spray Current 100 µA 100 µA
Max. Input Power 40 W 40 W
Input Frequency 50 – 60 Hz 50 – 60 Hz
Protection Class IP 54 IP 54
Operating Temperature 5 – 40 °C, 41.0 – 104.0 °F 5 – 40 °C, 41.0 – 104.0 °F
Weight 2300 g 2300 g
Length 230 mm 250 mm
Width 180 mm 180 mm
Height 120 mm 120 mm
Yorkshire Spray Services Ltd - Wagner Authorised Service Centre & Distributor_Industrial Solutions

Yorkshire Spray Services Ltd - Wagner VM Controller 500 & 5000

Wagner VM Controller 500 & 5000


Further Information


Brochure

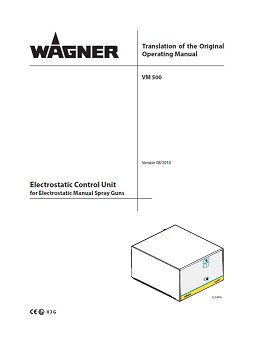

Manuals

Wagner Electrostatic

Open

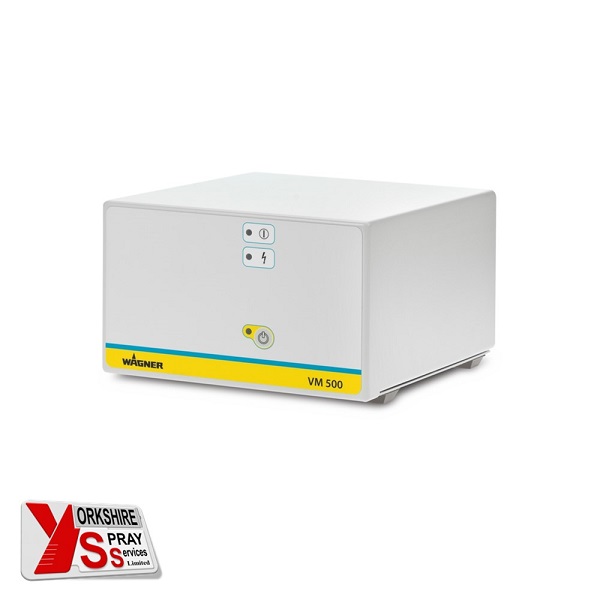

Wagner VM500

Yorkshire Spray Services Ltd - Wagner VM500

Download

Wagner VM5000

Yorkshire Spray Services Ltd - Wagner VM5000

Download

Additional information

Controller Type

VM500, VM5000
