Name: Wagner GA250/400PV Paint Valves
SKU: 34163
Availability: InStock

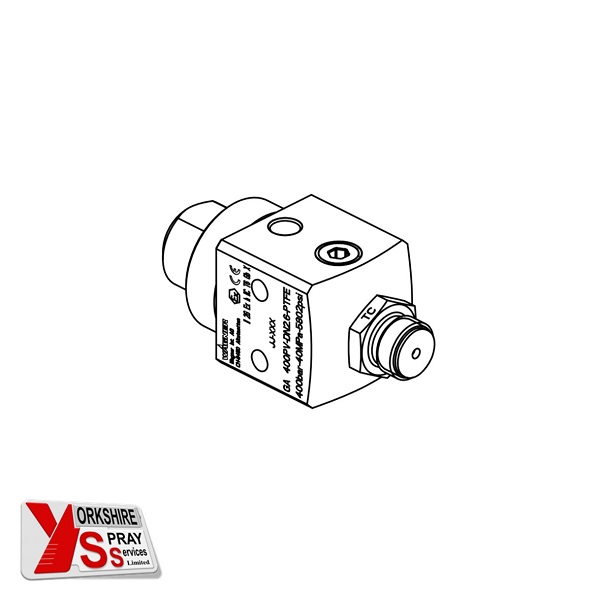

Wagner GA250/400PV Paint Valves

Yorkshire Spray Services Ltd - Valve GA400 PV & DV DN2.6-PTFE

Yorkshire Spray Services Ltd - Valve GA400 PV DN2.6-PTFE

Price range: £557.02 through £574.56 + VAT

The Wagner GA250/400PV Paint Valves, for product pressures up to 250 & 400bar. Pneumatically driven color change and dosing valve for the complex and precise processing of color and multi-component paints or 2-component system.


	NEXT working day delivery for orders placed before 12.00pm. Delivery on back ordered products approx. 1 – 2 weeks delivery

Wagner Part No. 2343364 | 2343360

SKU: N/A Application Methods, Automatic Guns & Equipment, Material Valves

Description Additional information Reviews (0)

Product Description

The Wagner GA250/400PV Paint Valves, for product pressures up to 250 & 400bar. Pneumatically driven colour change and dosing valve for the complex and precise processing of colour and multi-component paints or 2-component system.

Features & Benefits	Typical Material
Long Service Life – All material-wetted parts are made of stainless steel, ensuring a long service life and superior corrosion resistance. Process Reliability – The high switching accuracy of the gun produces reproducible coating results every time and achieves excellent process reliability. Excellent Design – This Airless gun combines a compact and robust design with impressive functionality. High-Viscosity Materials – The Wagner Airless guns can be used to process high viscosity materials.	Wagner GA Paint & Dosing Valves are suitable for High Viscosity Materials, i.e. Special Paints, Undercoat Sealers, Thick Oil & Adhesives. Wagner Auto Valves & Guns, excel in daily use thanks to their extreme robustness & very efficient atomisation.
	Top-Coat Paints Primer Paints Corrosion Protection Solvents Textured Paints	Tile Coating Staining Solvents Clear Paints/Varnish Solvents

Product Variants

Description	Valve Seat	Valve Ball	Packing	Nom. Pressure	Material ø	Material Connection	Part No.
Valve GA250PV DN2.6-PTFE-TC (SP)	Tungsten Carbide	Tungsten Carbide	PTFE	250bar	2.6mm	G 1/4″-F	2343364
Valve GA400PV DN2.6-PTFE-TC (ET)	Tungsten Carbide	Tungsten Carbide	PTFE	400bar	2.6mm	G 1/4″-F	2343360

Technical Data

Product Variants	GA250PV DN2.6	GA400PV DN2.6	GA400DV DN2.6
Max. Material Pressure	250bar / 3625psi	400bar / 5802psi	400bar / 5802psi
Control Air Pressure	0.35-0.8MPa / 3.5-8bar / 51-116psi		0.5-0.8MPa / 5-8bar / 73-116psi
Material Viscosity	20-2000mPa-s		20-2000mPa-s
Product pH Value	3.5 – 9		3.5 – 9
Material Temp.	+5°C – +80°C / +41°F – +176°F		+5°C – +80°C / +41°F – +176°F
Operation Temp.	+5°C – +40°C / +41°F – +104°F		+5°C – +40°C / +41°F – +104°F
Switching Frequency	3Hz	3-5Hz	3Hz
Sound Level	<65 dB (A)		<65 dB (A)
Weight	1049g	1057g	1070g

Yorkshire Spray Services Ltd - Valve GA250-400 PV & DV DN2.6-PTFE

Further Information

Manual

GA250 & 400

Yorkshire Spray Services Ltd - Wagner GA250 & GA400 Manual

Download

Additional information

Product Variants	Valve GA250PV DN2.6-PTFE-TC (SP), Valve GA400PV DN2.6-PTFE-TC (ET), Valve GA400DV DN2.6-PTFE-SSt (ET), Valve GA400DV DN2.6-PTFE-TC (ET)
