Name: Wagner GA4000AC Base Plates
SKU: 31395
Availability: InStock

Wagner GA4000AC Base Plates

Sale!

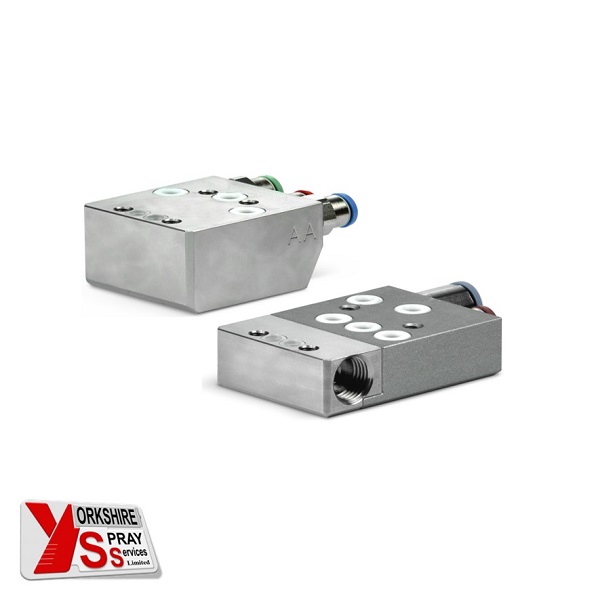

Yorkshire Spray Services Ltd - Wagner Base Plate GA4000ACEC & ACIC

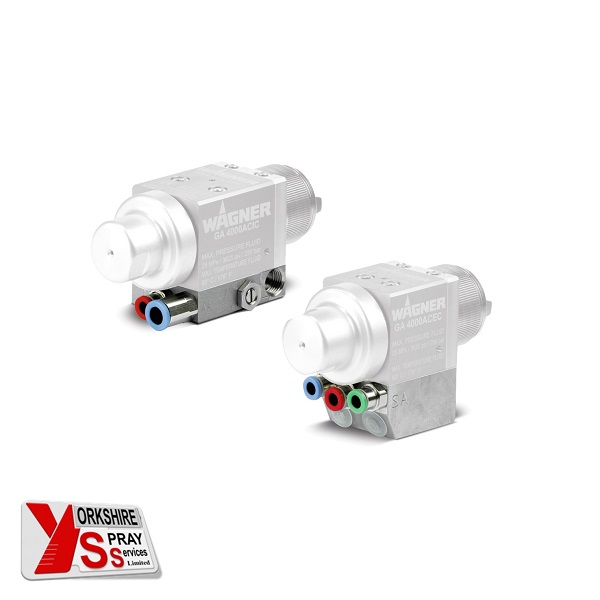

Yorkshire Spray Services Ltd - GA4000 Base Plates

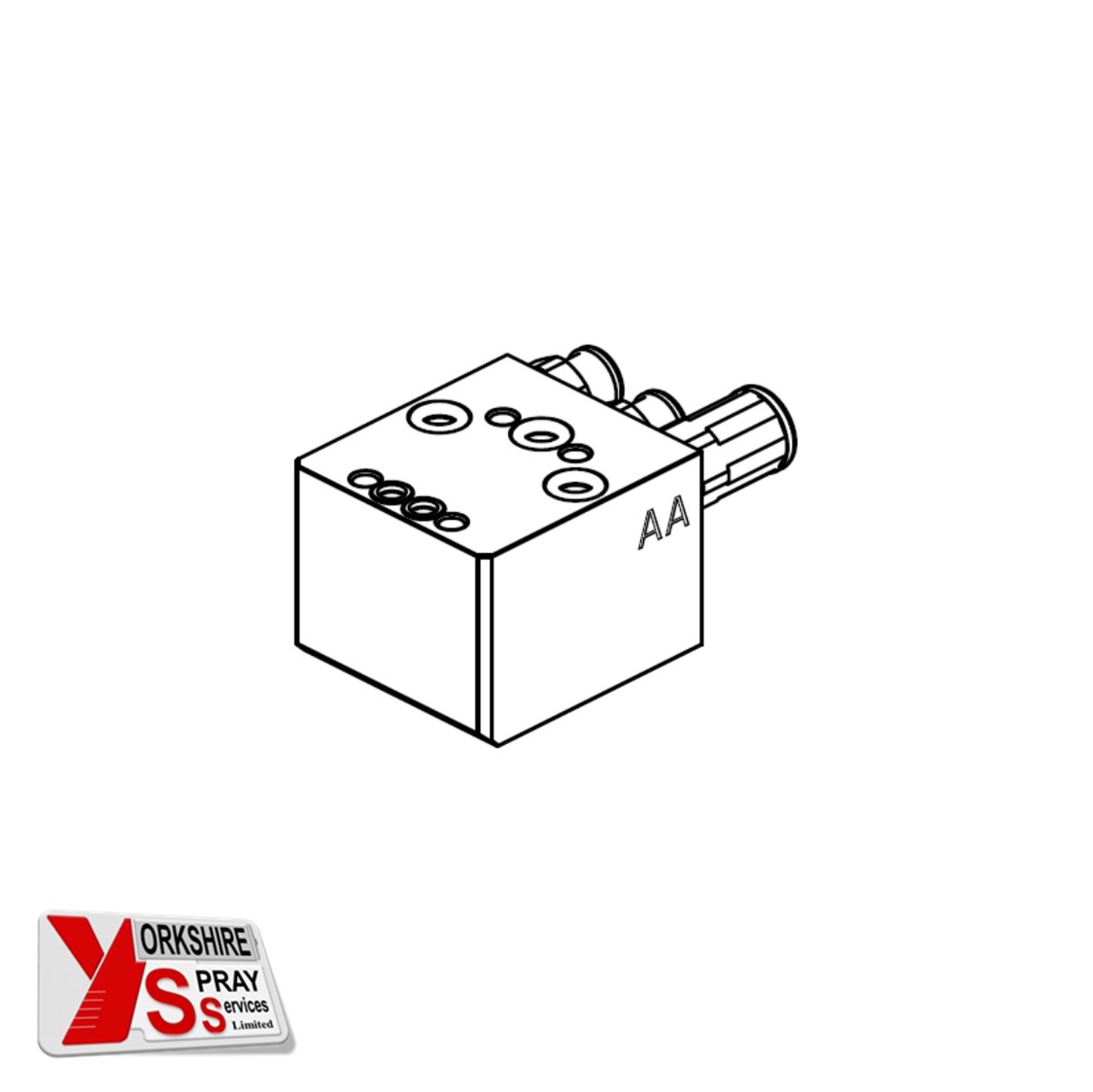

Yorkshire Spray Services Ltd - Wagner AirCoat - Wagner Base Plate GA4000ACEC-R - Rear Con. Part No. 2308812

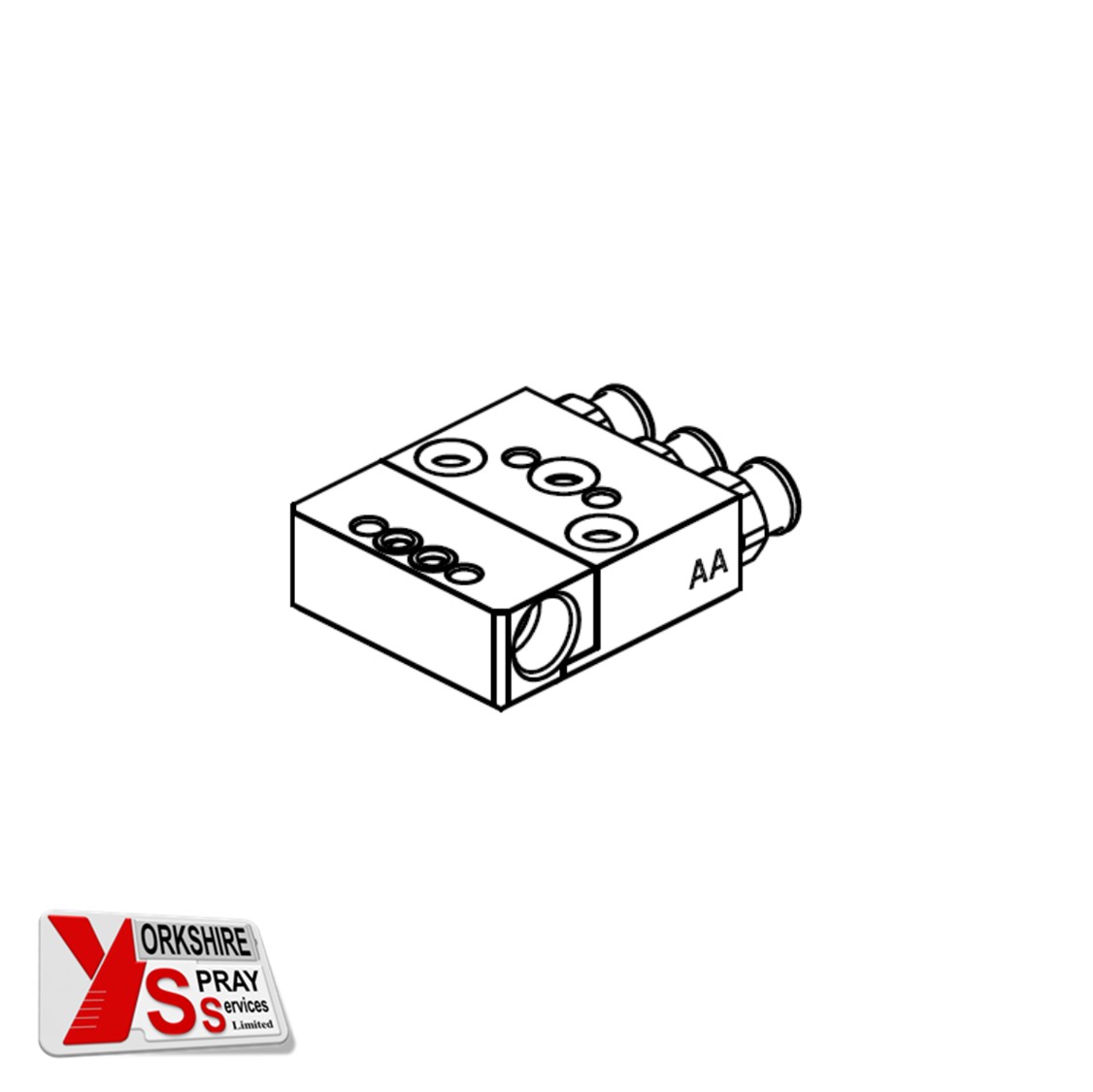

Yorkshire Spray Services Ltd - Wagner AirCoat - Wagner Base Plate GA4000ACEC-S - Side Con. Part No. 2363385

Yorkshire Spray Services Ltd - Wagner AirCoat - Wagner Base Plate GA4000ACIC-R - Rear Con. Part No. 2308810

Yorkshire Spray Services Ltd - Wagner AirCoat - Wagner Base Plate GA4000ACIC-S - Side Con. Part No. 2363386

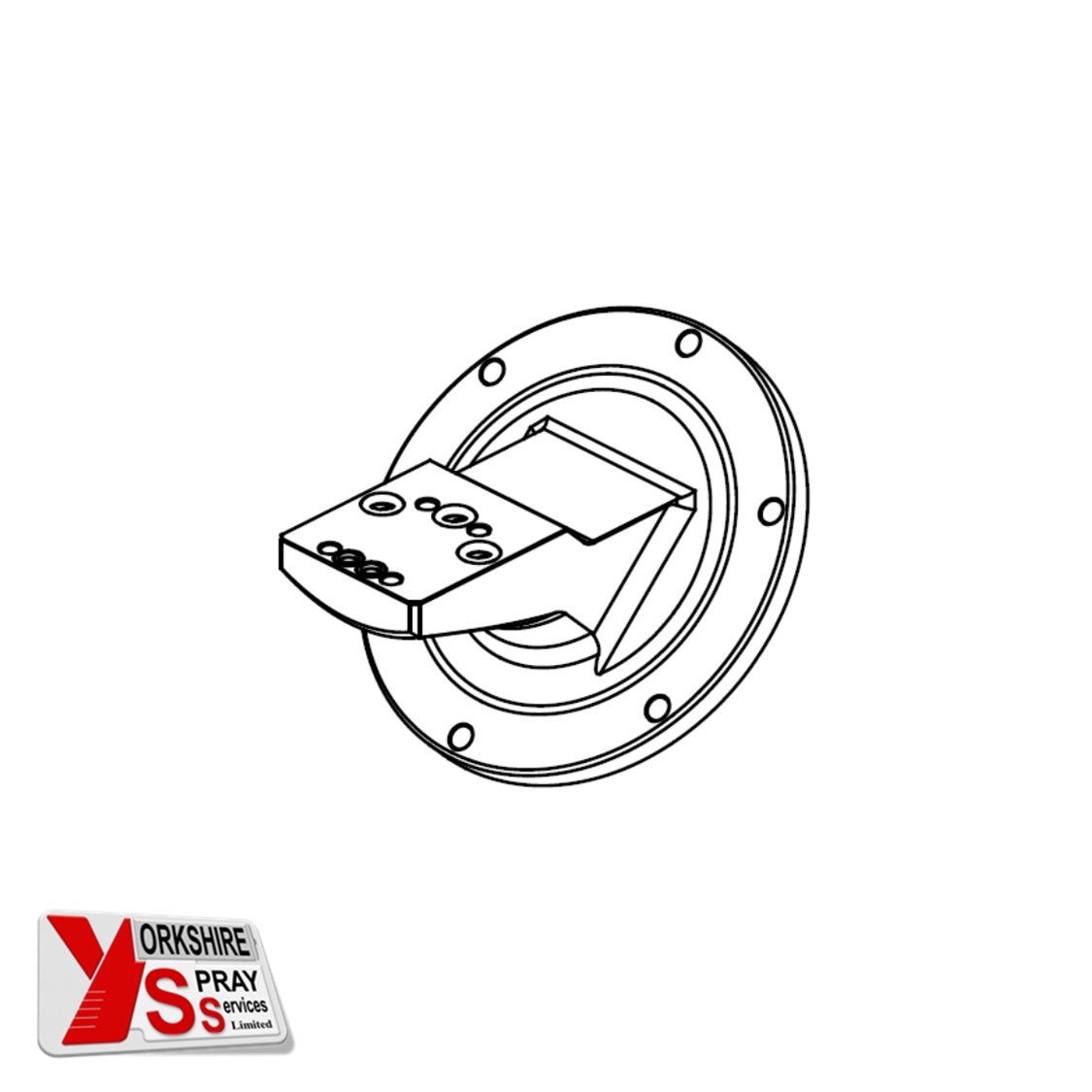

Yorkshire Spray Services Ltd - Wagner AirCoat - Wagner Base Plate GA4000ACEC-Fanuc Robot - Rear Con. Part No. 2313677

Price range: £324.00 through £2,116.00 + VAT

The Wagner GA4000AC Base Plates, used with Wagner ACIC & ACEC Guns for automatic coating processes, with excellent finish quality and transfer efficiencies. The results are an efficient coating process with the best surface finish.


	NEXT working day delivery for orders placed before 12.00pm. Delivery on back ordered products approx. 4 – 7 days delivery

Wagner Part No. 2363385 | 2308812 | 2313677 | 2363386 | 2308810

SKU: N/A AirCoat Guns, Application Methods, Automatic Guns & Equipment AirCoat Application Equipment, Wagner GA4000AC

Description Additional information Reviews (0)

Product Description

The Wagner GA4000AC Base Plates, used with Wagner GA4000 ACIC & ACEC Guns for automatic coating processes, with excellent finish quality and transfer efficiencies. The results are an efficient coating process with the best surface finish.

The Wagner GA4000AC Base Plates are part of a complete modular system. A wide variety of nozzles, aircaps, baseplates with versatile connections and a large range of mounting equipment makes the Wagner GA4000AC an ideal solution suitable for your specific application. All wetted parts are in stainless steel, so the gun is suitable for virtually any kind of paint.

Features & Benefits

There are two versions of Automatic Wagner AirCoat Guns, each determined by the control method, IC & EC.

IC Version (Internal Control) Easy adjustment of the spray pattern by an adjusting screw in the base plate.
EC Version (External Control) Pattern can be adjusted from the outside with a remote valve.

Fast & Constant Open-Close Speed – Fast trigger speed reduces overspray due to closer and more precise trigger positions to the workpiece.
Fixed Settings – The base plate System maintains the position and all settings for replicable spraying results.
Base Plates with Side/Rear connection options and Robotic Base Plate ensure maximum flexability

Product Variants

Base Plate Type	Control Type	Base Type	Packing Type	Part No.
Base Plate GA4000ACEC-S	External	Standard	Standard	2363385/2312146
Base Plate GA4000ACEC-R	External	Standard	Standard	2308812
Base Plate GA4000ACEC-Fanuc Robot	External	Robot	Standard	2313677
Base Plate GA4000ACIC-S	Internal	Standard	Standard	2363386/2312144
Base Plate GA4000ACIC-R	Internal	Standard	Standard	2308810
