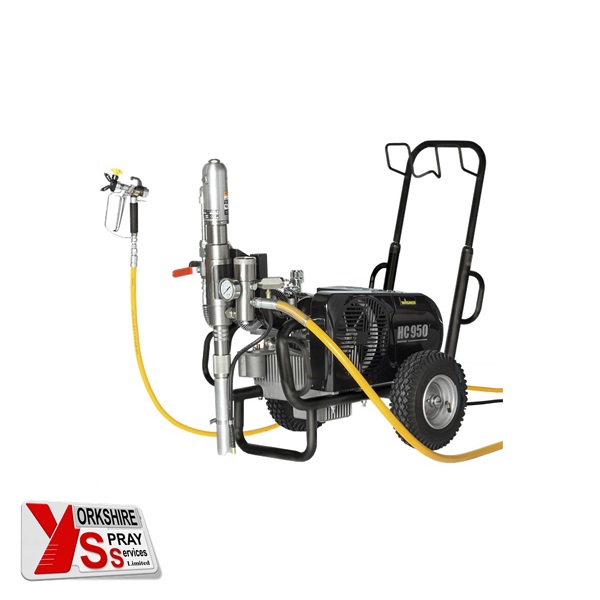

  • Yorkshire Spray Services Ltd_Wagner Heavy Coat 950 E

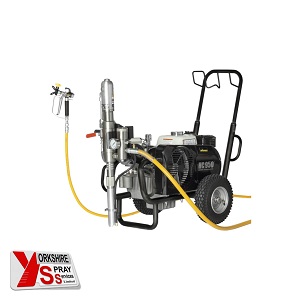

  • Yorkshire Spray Services Ltd_Wagner Heavy Coat 950 G

Wagner Heavy Coat 950+SSP

The Wagner Heavy Coat 950 E (Electric) & G (Petrol) Spray Pack is part of the Heavy Coat Hydraulic Piston range. Ideal for high viscosity materials, multi-gun use and working at heights. Sprays bituminous and fire retardant products, amongst other heavy materials.


Yorkshire Spray Services Ltd - Wagner Professional Finishing


£POA Please call for pricing. Discounts may be offered for multiple purchases, or any agreed part exchange

Product Description


The Wagner Heavy Coat 950 E (Electric) & G (Petrol) Spray Pack is part of the Heavy Coat Hydraulic Piston Pump range. Ideal for high viscosity materials, multi-gun use and working at heights.

Sprays bituminous and fire retardant products, amongst other heavy materials.

The material pump of the Wagner HeavyCoat units is driven indirectly by hydraulics. This has the advantage that the shovel piston has a distinctly longer and slower stroke than with direct drive electric pumps.


The high suction power improves the application of high viscosity materials. The low wear rate and the resulting long service life of the equipment are further positive aspects of hydraulic technology.

The wear surfaces of cylinder and piston rod are coated with an extremely wear resistant layer of hard chrome, making them able to withstand aggressive and abrasive materials.


Features & Benefits


The patented SSP System from Wagner is a unique development for the application of high viscosity materials, spraying plasters, adhesives and bituminous paints. Thanks to the special design of the system, the pump is continually filled with sufficient paint material by the shovel piston.

It is possible to work without pulsation or malfunction with Wagner’s “Special Spray Power” available for both HeavyCoat units. Decide yourself how much performance you need. With a choice of either a electric or petrol motor.

Fast container changeovers, easy to clean and transport thanks to the swivelling Swing Cart pump unit etc. Equipped with shovel piston for enhanced performance (SSP). The perfect choice for large areas and intensive usage.

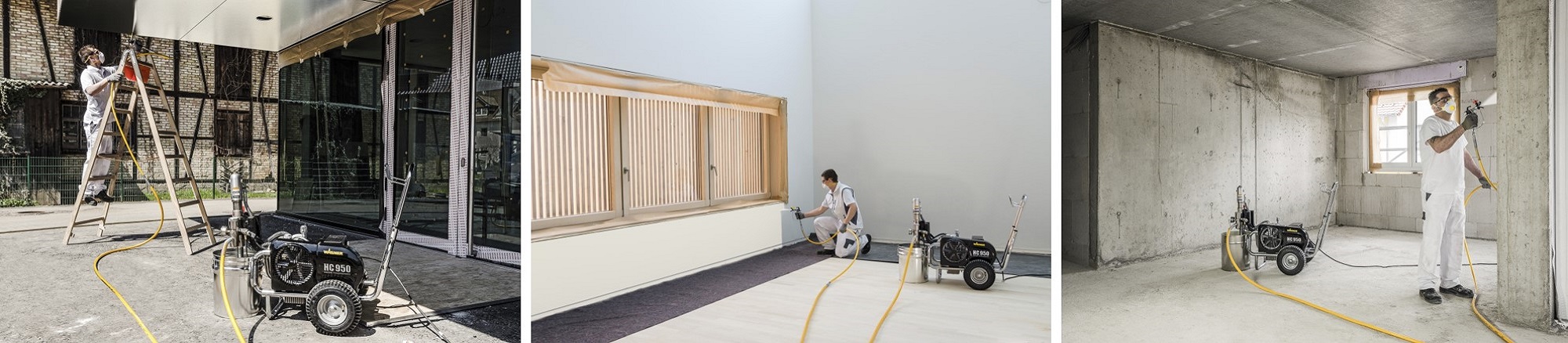

Yorkshire Spray Services Ltd – Wagner Petrol Airless HC 950 Action


Technical Data


Heavy Coat

950E + SSP

950G + SSP

Motor Output 5.6 Hp – 4.1 kW
Voltage 230 V – 50/60Hz
Max. Delivery 6.6 l/min 8.0 l/min
Max. Nozzle Size (One Gun) 0.052″ 0.056″
Max. Viscosity 50.000mPas 50.000mPas
Max. Material Temperature 43ºC 43ºC
Max. Operating Pressure 250 bar 250 bar
Max. Sound Level 80 db (A)* 88 db (A)*
Power Cord 6m
Weight 84.5 kg 76 kg
Yorkshire Spray Services Ltd_Wagner Heavy Coat 950

The Heavy Coat Piston Pumps. Ideal for large residential, commercial & maintenance applications.
Wagner offers a 3 + 2 year on the Heavy Coat Range. Standard is 3 years (5 if registered). To Register you can

CLICK HERE


Further Information


Brochures

Manual

HC950 E+SSP Spraypack

HC950 G+SSP Spraypack

Heavy Coat

Yorkshire Spray Services Ltd - Wagner Heavy Coat 950 970 BrochureOpen

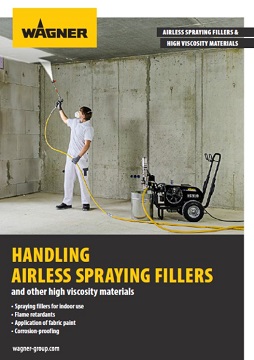

Spraying Fillers

Yorkshire Spray Services Ltd - Wagner Airless Filler ApplicationOpen

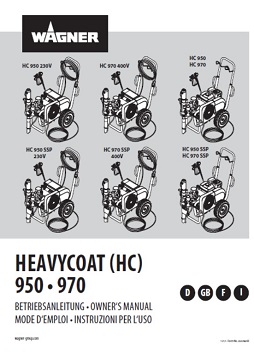

Heavy Coat 950

Yorkshire Spray Services Ltd - Wagner Heavy Coat 950 970 ManualDownload

  • Airless Gun AG 14
  • 1/2“ HP Hose Yellow, 15m
  • 3/8″ Whip Hose 2.5m
  • Connector for the Gun
  • Double Connector
  • TradeTip 2 Nozzle Holder
  • 2SpeedTip Nozzle S20 539/243
  • Airless Gun AG 14
  • 1/2“ HP Hose Yellow, 15m
  • 3/8″ Whip Hose 2.5m
  • Connector for the Gun
  • Double Connector
  • TradeTip 2 Nozzle Holder
  • 2SpeedTip Nozzle S20 539/243

Additional information

Power Type

Electric, Petrol
