Wagner MPR 25/0,1-2bar pneum. SSt, Low Pressure Material Pressure Regulator for regulating low product pressures when air pressure is four times greater.

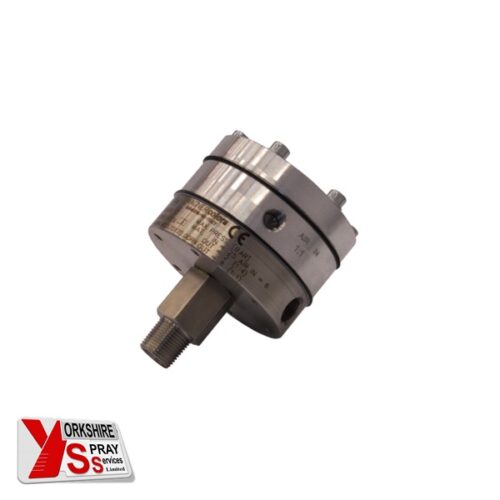

Wagner MPR 25/0,1-2bar Pneum. SSt
Product Description
Wagner MPR 25/0,1-2bar pneum. SSt, Low Pressure Material Pressure Regulator for regulating low product pressures when air pressure is four times greater. For air pressure up to 8 bar and product control pressure up to 2 bar (4:1) for flow rates up to 2.0 l/min. With PTFE diaphragm and stainless steel housing. For better flushing, the regulator can also be driven as a 1:1 regulator. This makes the full passage possible at a relatively low input air pressure.
Features & Benefits
The Wagner MPR 25/0,1-2bar pneum. SSt, made of material/product resistant stainless steel, for water and solvent based lacqures.
- Flushing time reduced
- Outlet G 1/8” F (higher speed and turbulence in the outlet, especially with small flow rate)
- Flushing efficiency increased because of higher turbulences
- No dead areas where the material could stop and polymerize
- Available version 1:4 (usable also 1:1) and manual control
Product Variants
Additional information
| Product Variants | MPR 25/0,1-2bar pneum. SSt, MPR 25/0,1-2bar pneum. SSt – Low Volume |
|---|
