Name: Wagner Service Kit PV/DV-2.6mm
SKU: 34178
Availability: InStock

Wagner Service Kit PV/DV-2.6mm

Sale!

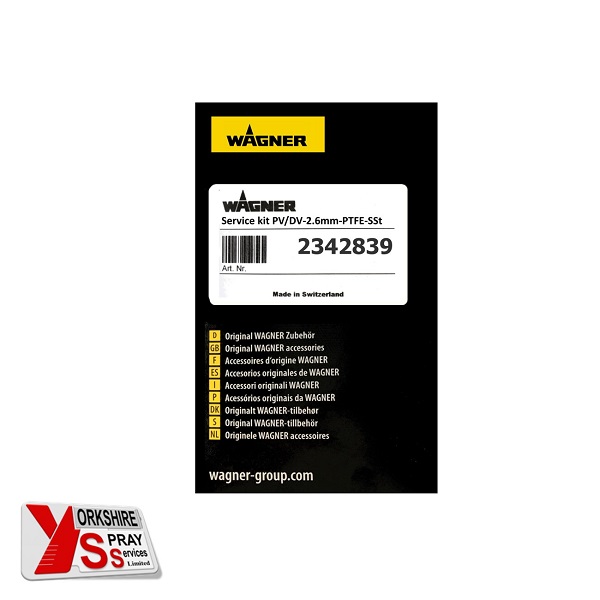

Yorkshire Spray Services Ltd - Wagner Service Kit PV DV-2.6mm-PTFE-SSt - Part No. 2342839

Price range: £470.83 through £662.50 + VAT

Wagner Service Kit PV/DV-2.6mm. The Wagner Service Kit PV/DV-2.6mm-PTFE sets include, the complete set of wear parts for regular equipment maintenance for the Wagner Paint & Dosing Valves DN2.6mm


	NEXT working day delivery for orders placed before 12.00pm. Delivery on back ordered products approx. 4 – 7 days delivery

Wagner Part No. 2342335 | 2342839

SKU: N/A Automatic Spares & Accessories, Service Sets

Description Reviews (0)

Product Description

Wagner Service Kit PV/DV-2.6mm. The Wagner Service Kit PV/DV-2.6mm-PTFE sets includes, the complete set of wear parts. For regular equipment maintenance for the Wagner PV100/400 Paint Valves & Wagner DV100/400 Dosing Valves DN2.6mm.

Service Set Details

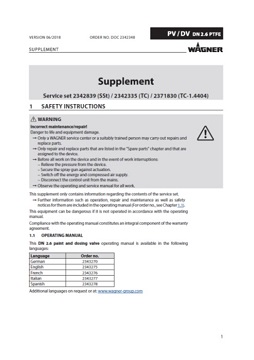

			Service Set PV/DV-2.6mm-PTFE-SSt	Service Set PV/DV-2.6mm-PTFE-TC	NOTE Only a Wagner Service Centre or a suitably trained person may carry out repairs and replace parts. Only repair and replace parts that are listed in the Chapter “Spare parts” and that are assigned to the unit. Before all work on the device and in the event of work interruptions: Relieve pressure from spray guns and devices. Secure spray guns against actuation. Switch off the energy/compressed air supply. Disconnect the control unit from the mains. Always observe the operating and service manuals at all times when carrying out work. Download

Manual No	Description	Set QTY	Part Numbers	Part Numbers
5	O’Ring	2	9974187	9974187
6	Valve Rod incl. Valve Ball	2	2342838	384120
8	Sealing Screw	2	350485	350485
9	Stop Ring	2	2342203	2342203
10	Sealing Ring – Front	4	2342204	2342204
11	Support Ring	2	2342205	2342205
12	Sealing Collar	2	2342206	2342206
13	Sealing Sleeve	2	2342207	2342207
14	Sealing Ring – Rear	4	2342208	2342208
18	O’Ring	2	9974065	9974065
27	O’Ring	1	9974164	9974164
28	Countersunk Screw	1	2344261	2344261
Service Set Part No.			2342839	2342335
