Product Description
|
The Wagner SF23 Professional is your reliable colleague for perfect results with maximum control for multiple applications. The Wagner Super Finish 23 Pro is a robust and durable airless paint sprayer. Reliable use with a wide variety of materials is guaranteed thanks to its unique QLS long-stroke technology. Low viscosity materials such as lacquers and varnishes up to thick materials such as emulsions and facade paint can be optimally processed.
The Wagner SF23 Professional is supplied complete with both Suction Feed for Walls, Ceilings and larger applications, also complete with 5ltr Hopper, ideal for smaller areas and detail work options, also included Wagner 30cm Extension for harder to reach places, making this a very versatile and reliable complete airless spray system. Ideal for lacquer coating of wooden ceilings, radiators and wooden windows as well as medium-sized projects such as the application of wall paint are achieved efficiently and uncomplicated – even in old or new constructions. |
Features & Benefits
Diaphragm pumps permit the variable regulation of pressure from 0 to 250 bar. This means optimal atomisation is possible even at lower pressure settings (30-40 bar). The revolutionary low-pressure Airless Wagner HEA Pro Tip Nozzle lets you work with up to 55% less overspray, along with the lower pressures offers the advantage of a better spray pattern and a more controlled application of paint.
The diaphragm pump technology in the Wagner SF23 Professional ensures less material wastage, in combination with a hopper material changes are simple. The flexible suction hose enables suction directly from the original container. The foldable frame enables effortless movement on the construction site and space-saving transport and storage.

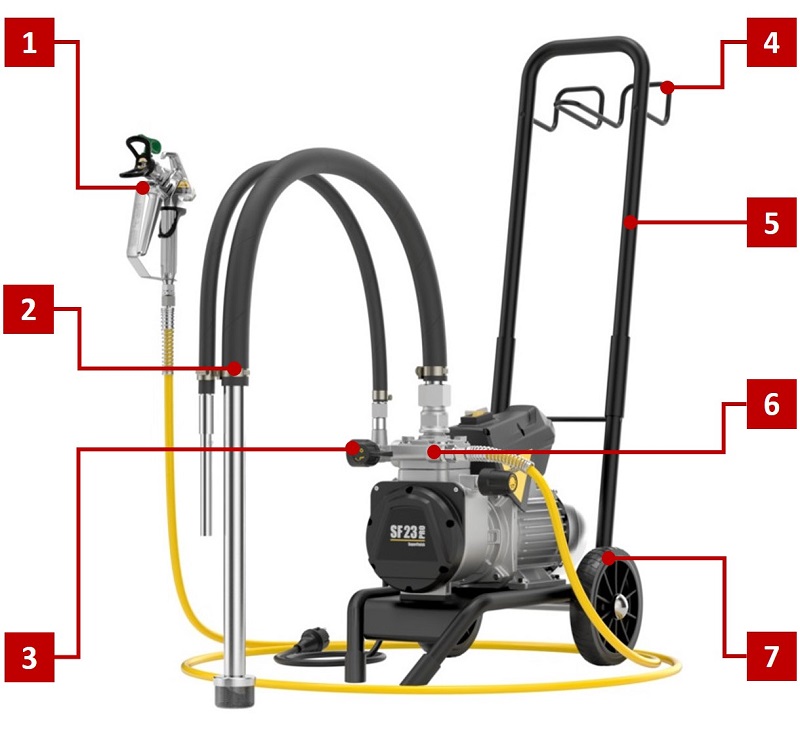

PERFECT FINISH | MAXIMUM CONTROL | INNOVATIVE DIAPHRAGM TECHNOLOGY

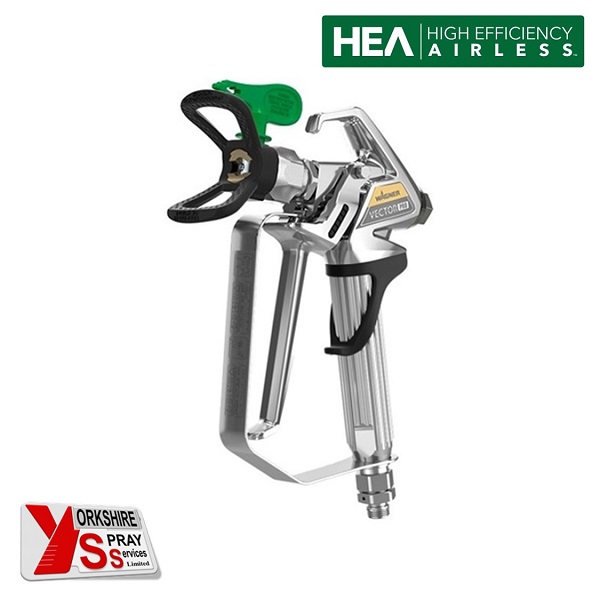

| 1 | Superb Spray Surface Quality – with the Vector Pro Airless Gun. Light in weight with a long service life |
 |
4 | Tidy – Hoses can be practically stowed away thanks to the integrated rack |
| 2 | Flexible Suction Hose for Direct Suction from the Container – Trouble free working thanks to the special fine mesh suction intake filter |
5 | Convenience – The foldable frame allows convenient building site transport and space saving storage |
| 6 | Large Variety of Materials with QLS Long-Stroke Technology – Made possible by optimised hydraulics and special valve technology |
| 3 | HEA Pressure Gauge – allows monitoring of the spray device pressure. HEA nozzles allow work in the low-pressure range (ideally at 80 – 140 bar) |
7 | Robust Design – with heavy duty tyres making the SF 23 Pro the perfect partner on every construction site |
 |
SPECIAL OFFER | 2 in 1 COMPLETE SPRAY SYSTEM
The SF23 Pro is currently on special offer and supplied complete with both the Wagner 5ltr Hopper & Suction Hose making this a very versatile and reliable complete spray system.

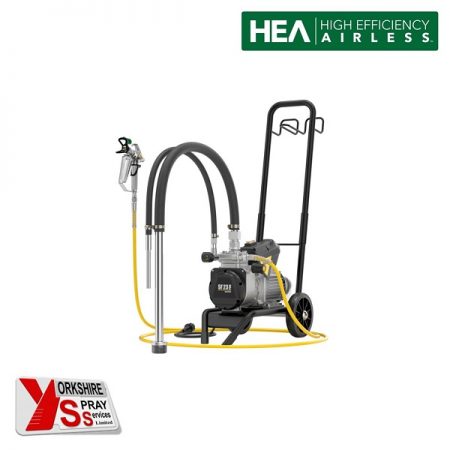

- Suction Feed – Directly from container for Walls, Ceilings and larger applications.

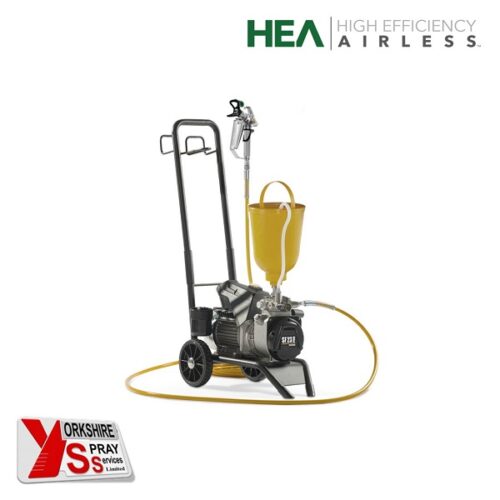

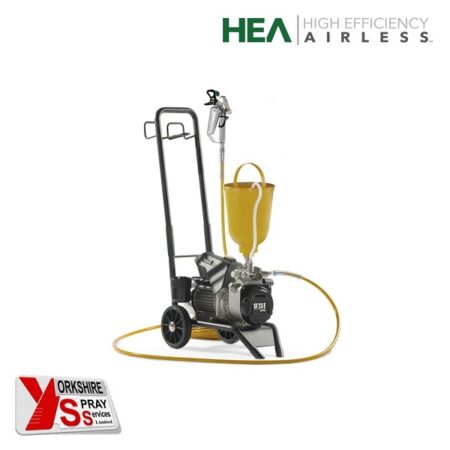

- Hopper Feed – 5ltr Hopper is ideal for smaller areas and detail work.
|
 |
|
Technical Data
Super Finish 23 Pro
|
| Power |
110v |
| Motor |
1.3kW |
| Max. Pressure |
250bar (3600psi) |
| Max. Viscosity |
20,000mPas |
| Max. Material Temp |
43°C |
| Max. Tip Size |
0,023″ |
| Max. Delivery Rate |
2.6l/min |
| Sound level (dB(A) |
0 dB(A) – 75 dB(A)
|
| Weight |
27kg |
|
| The Super Finish 23 Pro Electric Diaphragm Pump. Ideal for residential, commercial & maintenance applications. |
 |
| Wagner offers a 3 + 2 year on the Super Finish Range. Standard is 3 years (5 if registered). To Register CLICK HERE |
|
Box Contents
|
Further Information
|
|
SuperFinish23 Pro | SprayPack
- Basic Unit SF 23 Trolley Mount
- HP Hose DN6, NPSM 1/4”; 15m
- Airless Vector Gun
- HEA Pro Tip 519

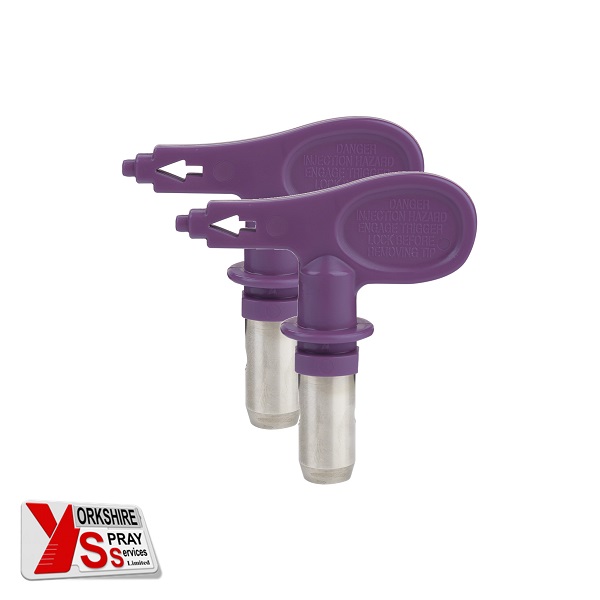

- TradeTip3 Fine Finish Tips 208
- TradeTip3 Fine Finish Tips 312
- Flexible Suction Hose
- 5Ltr Hopper
- Wagner 30cm Extension
- Wagner Part No. 2411218/SP
|
|
Brochure
Download
|
Manual
Download
|
