Titan Transfer Pump

Product Description

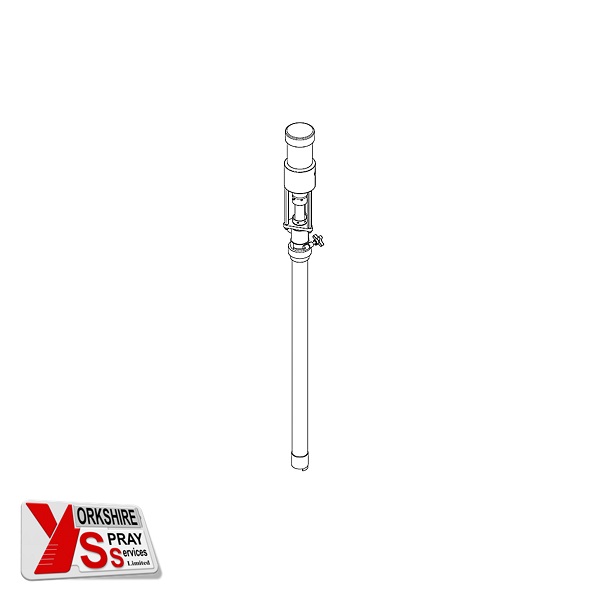

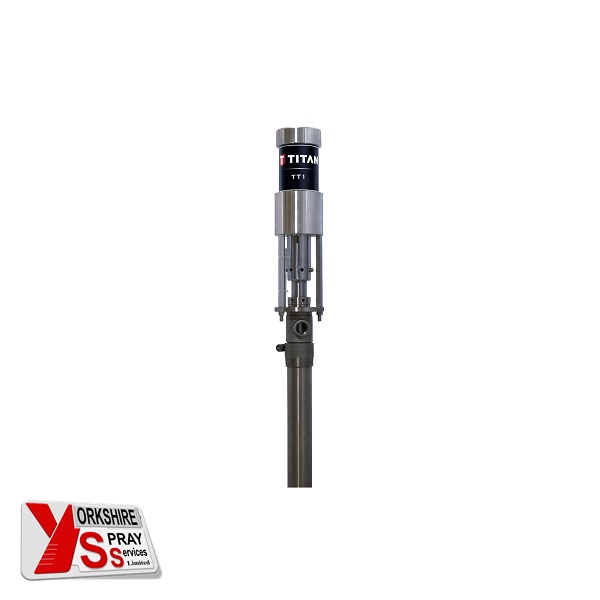

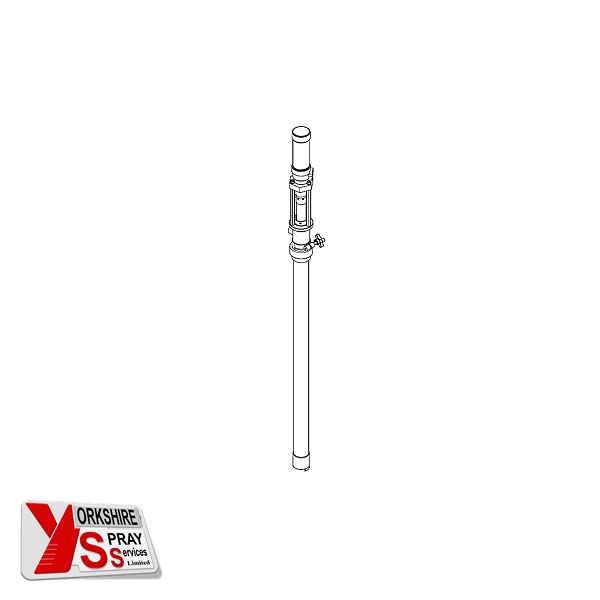

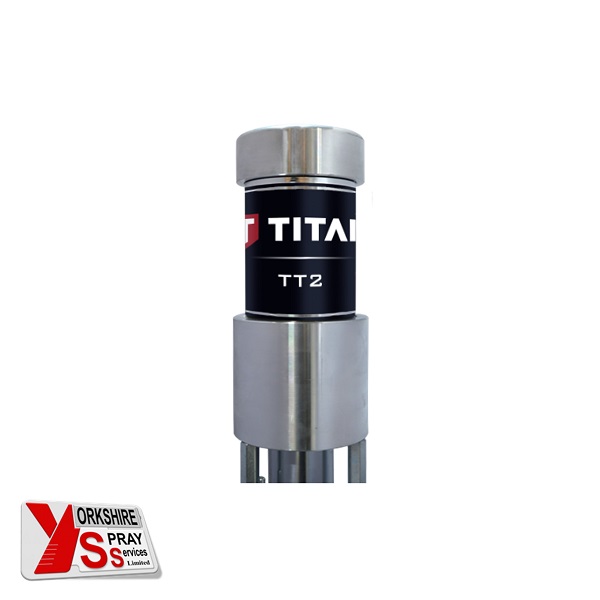

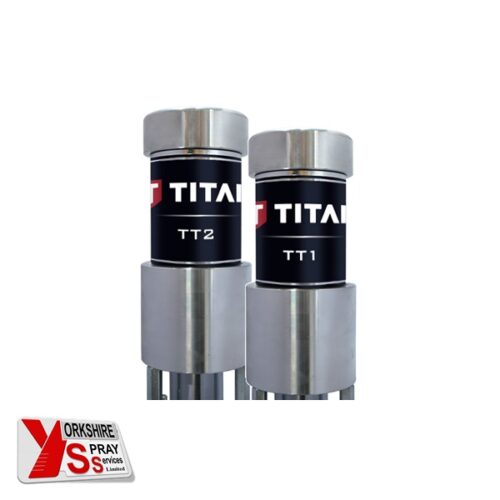

Titan Transfer Pump, the Titan Transfer Pumps TT1 & TT2 are designed to pump extremely viscous products. Titan TT1 & TT2 are comprised of two components: an air motor and a fluid pump. The pneumatic-powered air motor drives a piston within the fluid pump that creates suction and can draw material from large containers and deliver the material to an external system.

Technical Data

Titan Pump	TT1	TT2
Pump Ratio	1:1	2:1
Air motor diameter	2″	2.5″
Max. fluid pressure	180 psi (12.4 bar)	240 psi (16 bar)
Max. air input pressure	180 psi (12.4 bar)	120 psi (8 bar)
Max. volume flow rate	15.0 LPM	15.0 LPM
Max. recommended pump	100 cycles/min	100 cycles/min
Air inlet	1/4 NPT (F)	1/4 NPT (F)
Fluid inlet	1 1/2 NPT (F)	1 1/2 NPT (F)
Fluid Outlet	3/4 NPT (F)	3/4 NPT (F)
Max. operating temperature	180ºF (82ºC)	180ºF (82ºC)
