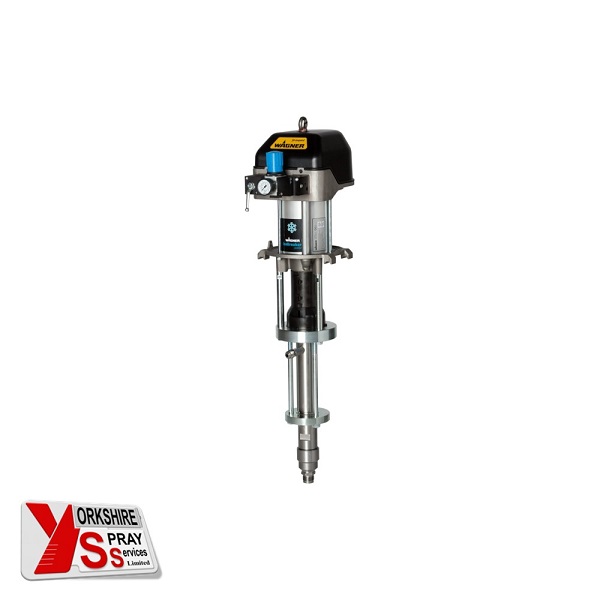

Wagner Leopard 48:110 PE/TG

Product Description

The Wagner Leopard 48:110 PE/TG – High-pressure piston pump, stainless steel, for Airless applications. Ideal, for example, for industrial coating in the metals industries and for smaller protective coating applications, long hose lines.

• Reliable – The extremely low pulsation and low maintenance controller offers very high reliability, even during continuous operation.
• Optimum Service – Easy-to-clean separating fluid chamber. Rapid and simple replacement of the self-adjusting packings without special tools.
• Fluid Section – Made entirely of high quality stainless steel and is designed for a long service life and low wear, even when conveying abrasive and chemically corrosive material.

Features & Benefits

1 | Powerful & Reliable – The unique internal design of the motor & its special discharge valves drastically reduce ice formation & prevent accumulation to ensure superior performance & exceptional reliability		5 | Under Full Pressure – The packing-free, anti-stalling pilot valve is always fed by full air pressure, regardless of the adjusted working pressure, to guarantee high speed inversions & optimal performance
2 | Safe Operation –The pressure regulator is integrated with a safety air valve to ensure when it is closed that no pressure is left in the air motor		6 | Performance & Durability – Self-adjusting packings and a thick hard chrome plated stainless steel fluid section ensures durability regardless of the material used
3 | Service Friendly – The release agent cup is easily accessible. The quick-release coupling between the piston rod and air motor make it possible to quickly and easily disconnect the fluid section		7 | Acid Catalyst Option – All components that come into contact with the acid catalyst can be supplied in 316ss. This option can be used with the Twin Control & 2K Smart mix systems
4 | Filtration & Recirculation – The fluid section has the option to be fitted with a high pressure fluid filter or release combo for a quick pressure release, fill or flush function.		8 | Easy & long Lasting – Large ball valve with hard metal seats ensures strong suction power & extremely long working life. Easily opened for cleaning without disassembling the fluid section. The suction hose moves freely on a swivel joint

Technical Data

Pump Ratio 48:1 Operating Pressure 370 bar, 5366 PSI Volumetric Flow per Double Stroke 110 cm³/DS, 6,71 in³/DH Volumetric Flow per 60 DH 6,6 l/min Max. Stroke Rate 60 DS/min Material Inlet A–M 36×2 Material Outlet A–M 24×1,5 Air Inlet Pressure 2,5 – 8 bar, 36 – 112 PSI Sound Level at 6 bar Air Pressure 74 dB(A) Material Temperature 5 – 80 °C, 41 – 176 °F Ambient Temperature 5 – 60 °C, 41 – 140 °F Material Ph 3.5 – 9 pH Max. Material Pressure at Pump Inlet 20 bar, 290 PSI Allowable Inclination ±10 ° Weight 36,0 kg, 79.4 lb

Box Contents

Basic Spray Pack

Piston Leopard 48:110 PE/TG (Pump Only)

Further Information & SprayPacks
