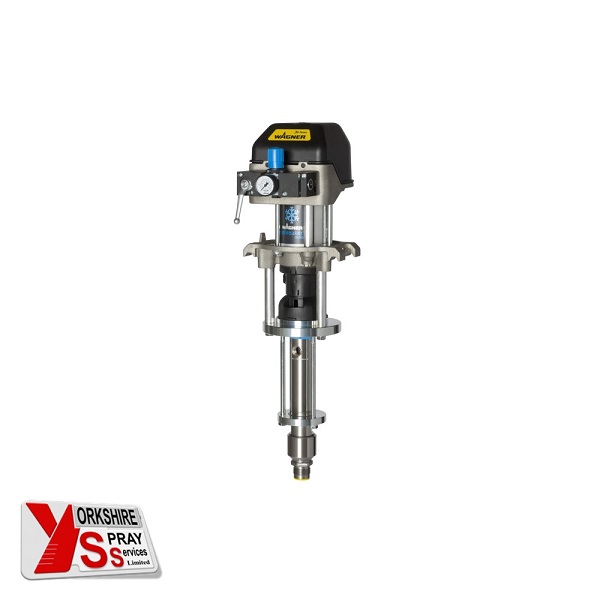

Wagner Leopard 35:150

£3,813.00£4,621.00 + VAT

The Wagner Leopard 35:150 High-pressure piston pump, stainless steel, for Airless and AirCoat application.

Ideal for industrial coating in the wood and metals industries and the use of multiple guns.

Yorkshire Spray Services Ltd - Standard Delivery DELIVERY NOTECurrent delivery for this product is approximately 4 to 7 days.

Delivery Information

Clear

Product Description

The Wagner Leopard 35:150 High-pressure piston pump, stainless steel, for Airless and AirCoat application. Ideal, for example, for industrial coating in the wood and metals industries and the use of multiple guns.


Yorkshire Spray Services Ltd_Leopard 35_150


  • Reliable – The extremely low pulsation and low maintenance controller offers very high reliability, even during continuous operation.
  • Optimum Service – Easy-to-clean separating fluid chamber. Rapid and simple replacement of the self-adjusting packings without special tools.
  • Fluid Section – Made entirely of high quality stainless steel and  is designed for a long service life and low wear, even when conveying abrasive and chemically corrosive material.

Features & Benefits


  • Powerful & Reliable, under full pressure
  • Designed for any application
  • User-friendly
  • Optimum service
  • Gentle on materials
  • Quiet Air Motor
  • 3 Year Warranty
  • No-ice Air Motor
  • 50% Faster Maintenance
  • Excellent Handling
  • Perfect Coating Results

Material Filter



High pressure filters for high flow rates. To be mounted directly at the pump outlet. Equipped with big and easy to clean filter insert Type L. Completely made from stainless steel. The ball valve is used to depressurize the pump in order to prime or flush the pump directly w/o dismantling the HP-hose. The ball valve can also be used to install a full circulation system, when e.g. material must be heated or circulated for other reasons.

Advantages

  • Easy to Clean – Large product filter, easy to flush and clean, for optimum service.
  • Up to 530 bar – For product pressure up to 530 bar.
  • Easy to Remove – Stable ball cock in easily accessible position.
  • Complete Solutions – Standardized connection geometry for product return systems: from simple pressure relief to complex material circulation.



Yorkshire Spray Services Ltd - Wagner HP-Filter with Relief Valve DN10

Technical Data


Pump Ratio 35:1
Operating Pressure 250 bar, 3626 PSI
Volumetric Flow per Double Stroke 150 cm³/DS, 9,15 in³/DH
Volumetric Flow per 60 DH 9 l/min
Max. Stroke Rate 60 DS/min
Material Inlet A–M 36×2
Material Outlet A–M 24×1,5
Air Inlet Pressure 2,5 – 7,7 bar, 36 – 112 PSI
Sound Level at 6 bar Air Pressure 74 dB(A)
Material Temperature 5 – 80 °C, 41 – 176 °F
Ambient Temperature 5 – 60 °C, 41 – 140 °F
Material Ph 3.5 – 9 pH
Max. Material Pressure at Pump Inlet 20 bar, 290 PSI
Allowable Inclination ±10 °
Weight 36,0 kg, 79.4 lb
Yorkshire Spray Services Ltd - Wagner Leopard 35_150 Airless Spray Pack

Wagner Leopard 35:150 Airless Spray Pack

Yorkshire Spray Services Ltd - Wagner Authorised Service Centre & Distributor


Scope of Delivery


Airless Spray Pack

Pump & Trolley Spray Pack

Basic Spray Pack

  • Piston Pump Leopard 35:150 PE/TG
  • Trolley 6″ Assy.
  • Suction Hose DN25-SSt assy.
  • HP-Filter DN12-PN530-SSt IceBreaker
  • Gun AG14 G-Thread 78″ NPS 1/4″
  • Fitting-RF-FM-G3/8-1/4NPSM-530bar-SSt
  • HP-Hose-DN4-PN270-¼”NPS-15,0m-PA
  • Standard Tip 515
  • Piston Pump Leopard 35:150 PE/TG
  • Trolley 6″ Assy.
  • HP-Filter DN12-PN530-SSt Ice Breaker
  • Suction Hose DN25-SSt assy.
  • Piston Pump Leopard 35:150 PE/TG
  • HP-Filter DN12-PN530-SSt Ice Breaker

Further Information & SprayPacks


Brochure

Manual

Finishing SprayPacks

Yorkshire Spray Services Ltd - Wagner Finishing SprayPack Brochure

Open

Leopard

Yorkshire Spray Services Ltd - Wagner Leopard

Download

Additional information

Spray Pack Variants

Airless Spray Pack, Pump & Trolley Spray Pack, Basic Spray Pack
