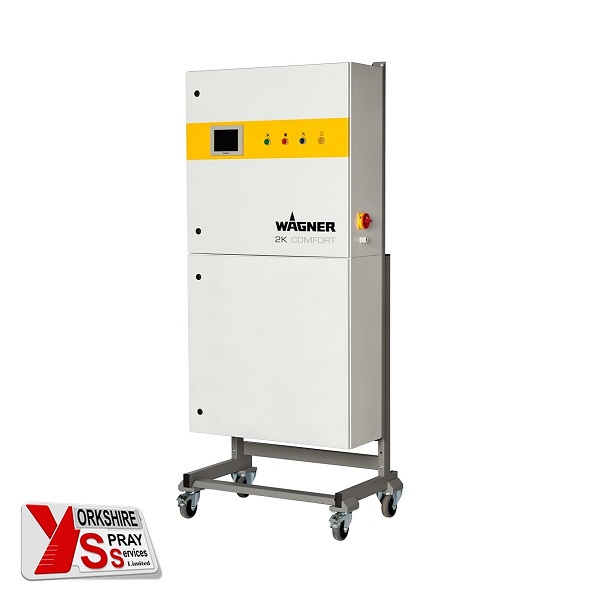

Wagner 2K Comfort

The Wagner 2K Comfort is a new, electronically controlled mixing and dosing system for multicolour applications. Compared to Wagner Flex Control Smart, up to 25 colours and 4 components can be processed simultaneously. For a highly efficient coating process, the equipment can be integrated into a fieldbus system.



£POA Please call for pricing. Discounts may be offered for multiple purchases, or any agreed part exchange

Product Description

The Wagner 2K Comfort – New mixing and dosing unit ideally suited for multi-colour applications. Wagner has developed an electronic mixing and dosing unit that is especially suited for complex multicolour

  • Applications – the Wagner 2K Comfort can process up to 25 colours and four components simultaneously.
  • A range of special features enables a safe and efficient mixing process and presents manifold possibilities for the user.
  • Unit enables colour changes in less than a minute, which gives the user more flexibility for his coating process.

Additionally, up to 90% solvent reduction as only the gun hose needs to be flushed. With the gun distribution valve, not only can two guns be operated separately from each other, but can also be flushed separately. Waste, therefore, can be significantly reduced.


Yorkshire Spray Services Ltd - Wagner 2K Comfort Detail


Features & Benefits


The fluid parts which are operated separately from each other by the control unit. For specific applications, this can lead to a considerable reduction of both investment costs and cycle times of the objects to be painted.

  • Colour change in less than one minute
  • Saves up to 90% solvent during colour change
  • Parametrization also possible with tablet PC
  • Best mixing results through AIS technology, patent pending

The Wagner 2K Comfort is also available with two fluid circuits which enables the simultaneous application of two different materials with only one unit.


Technical Data


Mixing Accuracy +/- 1%
Mixing Ratio 0.1: 1 – 50: 1
Max Material Pressure 325 / 530 bar (depending on the model)
Flow Rate 50 – 7000 cc / min (depending on the measuring cell)
Component A Max. 25
Component B Max. 10
Component C Max. 10
Component D Max. 10
Flushing Fluid A 10
Flushing Fluid B 5
Flushing Fluid C 5
Flushing Fluid D 5
Guns Max. 4
Material Temperature +5°C – +60°C; +41°F – 140°F
Material Viscosity 20 – 2200 mPas, depending on measuring cell
Processable Material Water & Solvent Based
Processable Components 2K, 3K and 4K
Yorkshire Spray Services Ltd - Wagner Group Authorised Partner

Yorkshire Spray Services Ltd - Wagner 2K Comfort

Wagner 2k Comfort


Further Information


Brochure

Manual

Video

Wood 2K Comfort

Yorkshire Spray Services Ltd - Wagner 2K Comfort BrochureOpen

2k Comfort

Yorkshire Spray Services Ltd - Wagner 2k Comfort Manual

Download
