Wagner 2k Smart

The mixing and dosing unit Wagner 2K Smart, optionally with contactless flow measurement, can be used for any application where multicolour 2K or 3K paints are processed. Replacing the mixing and dosing unit Wagner Flex Control Smart, the Wagner 2K Smart can be used to process a wide range of workpieces from all kinds of application segments.



£POA Please call for pricing. Discounts may be offered for multiple purchases, or any agreed part exchange

Product Description

The mixing and dosing unit Wagner 2K Smart, optionally with contactless flow measurement, can be used for any application where multicolour 2K or 3K paints are processed. Replacing the mixing and dosing unit Wagner Flex Control Smart, the Wagner 2K Smart can be used to process a wide range of workpieces from all kinds of application segments. The Wagner 2K Smart can determine the material flow through two different measuring systems, the Stroke sensor and the Gear flow meter.

High flexibility the unit can be configured to specific customer requirements. It is delivered fully assembled and ready to be connected.

  • Simple, intuitive operation via integrated touch display or external PC ensures quick and easy paint changes.
  • Consistent mixing ratios – you can choose the ideal flow measurement system for each material and application: Gear flow meter, Coriolis flow meter or Wagner stroke sensor (indirect flow measurement without material contact, ideal for abrasive materials)
  • Homogeneous coating results with Wagner AIS (Adaptive Injection System) which adapts the injection of the hardener automatically to changing material flow rates.
  • High process reliability by trouble-free addition of a third component – no manual mixing effort thanks to automatic dilution and adjustment of the mixing ratio
  • Constant material thicknesses the flow rate is adjusted by a material flow regulator. Ideal for applications where a simple regulation of the material flow is sufficient.

Features & Benefits


  • Applications with acid-hardening paint systems Possibility for configuration for acid-hardening paint systems. For this specific application, all material wetted parts in the hardener section are made from high-grade stainless steel.
  • Easy integration into automated paint systems Connection via gateway to a fieldbus system for information exchange with a robot or higher control level. The 2K Smart unit can be equipped with a Profibus connection, further systems are available on demand.
  • Easy to operate – Flat screen with touch screen for entering and monitoring all functions. All processes and recipes for colour changes and flushing can be operated and configured with the clear and simple menu navigation. Different password levels protect from unauthorized operation.

Yorkshire Spray Services Ltd Wagner 2k Smart


  • High precision – The highly accurate measurement of material streams using gear flow meters, stroke sensors or Coriolis mass-flow meters, and precise dosage with the Wagner injection valves, provide for perfectly consistent mixing ratios and optimal homogenization, even with very small mixing ratios.
  • Flexible use – Whether for ATEX atmosphere, high/low pressure application, two separate fluid sections for things such as simultaneously processing epoxide and polyurethane paints, small or large delivery rates, or electrostatic uses: the 2K Smart is freely configured according to customer-specific needs.
  • Rapid amortization – The high degree of atomisation and the extremely economical handling of paints and solvents not only provide clearly noticeable savings and rapid amortization, but also a significant reduction of VOC emissions.
  • High process reliability – Fully automatic flushing and colour changing, as well as a rich assortment of additional safety and monitoring features guarantee maximal process safety. These features include, for example: gun monitoring and flushing device, air monitoring, or PC data backup.
  • Rich assortment of accessories – Gun flush boxes, external mixers for fast-reacting and expensive materials, remote operation, and many other accessories supplement the product range and top off the spectrum of use.

Technical Data


Mixing Accuracy ± 1%
Mixing Ratio 0,1:1 – 50:1
Max. Material Pressure 250 bar, 3626 PSI
Material Temperature 5 – 60°C
Ambient Temperature 5 – 40°C
Material pH 3.5 – 9 pH
Input frequency 50 – 60 Hz
Material viscosity 20 – 2200 mPas
Delivery Rate 0.05 – 3 l/min
Component A 1 – 5
Component B 1 – 2
Component C 0 – 1
Depth 340 mm
Height 1425mm
Height 1 – 325 mm, 52.2 in
Yorkshire Spray Services Ltd - Wagner Authorised Service Centre & Distributor_Industrial Solutions
Yorkshire Spray Services Ltd Wagner 2k Smart

Further Information


Brochure

Manual

Wagner 2k Smart

Yorkshire Spray Services Ltd - Wagner 2k Smart Brochure

Open

Wagner 2k Smart

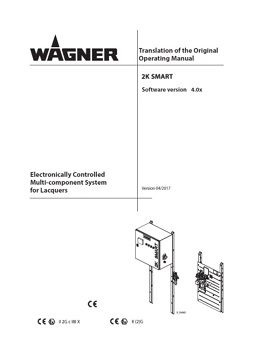

Yorkshire Spray Services Ltd - Wagner 2k Smart Manual
