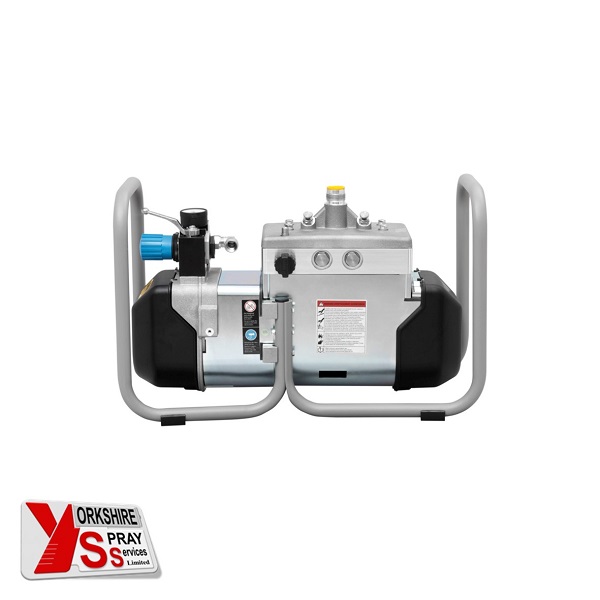

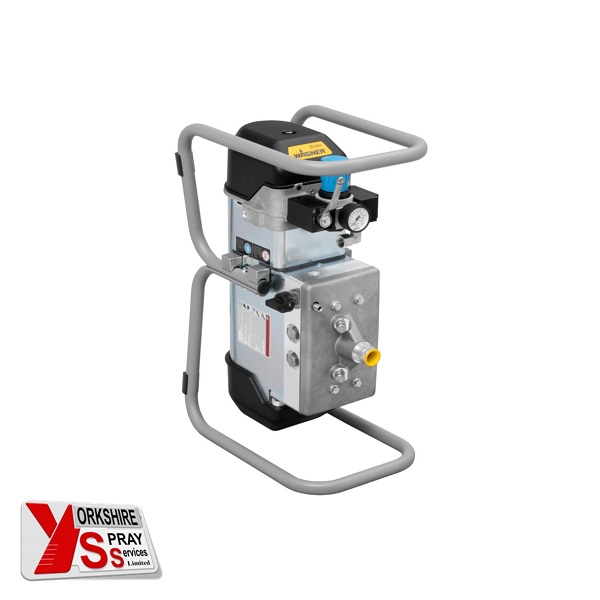

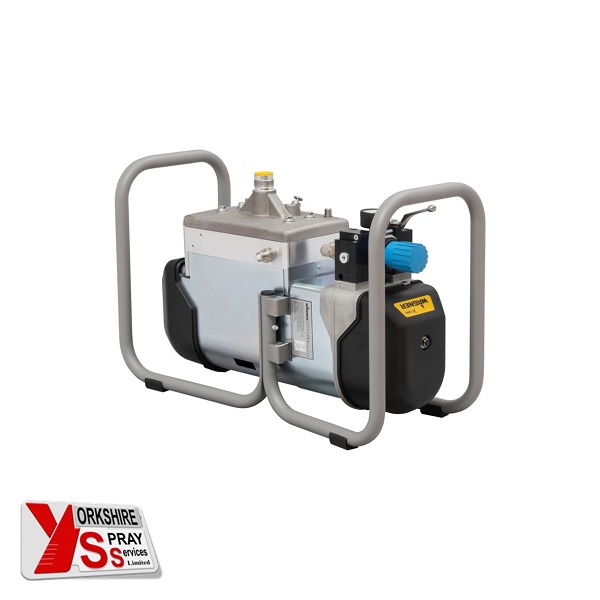

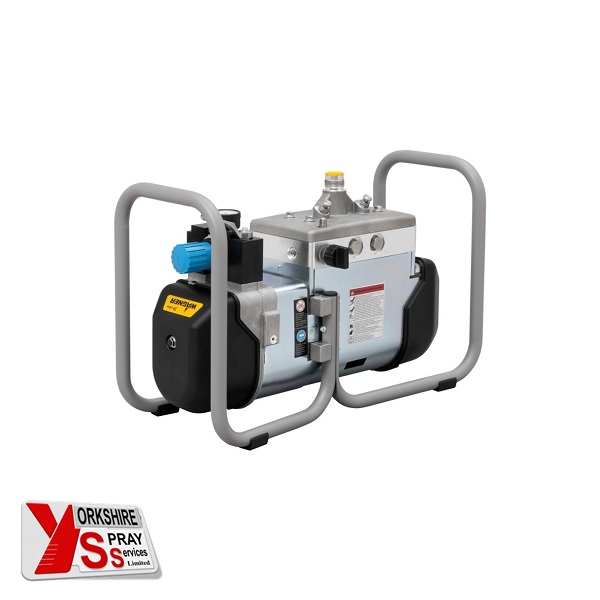

Wagner Cobra 40:25

£3,501.00£3,753.00 + VAT

The Wagner Cobra 40:25 a durable double diaphragm pump for AirCoat and Airless applications up to 250 bar. The extremely small inside volume has no dead space, which makes for lightning-fast paint change and low flushing-agent consumption. The Wagner Cobra 40:25 pump is just as powerful as many a large-scale piston pumps.

DELIVERYNext working day delivery for stock items on orders placed before 2.00pm

Delivery Information

Clear
SKU: N/A Category:

Product Description


The Wagner Cobra 40:25 a durable double diaphragm pump for AirCoat and Airless applications up to 250 bar. The extremely small inside volume has no dead space, which makes for lightning-fast paint change and low flushing-agent consumption.

The Wagner Cobra 40:25 pump is just as powerful as many a large-scale piston pumps. It is also an excellent solution for feeding automatic spraying systems in wood coating lines or for heavy-duty applications in carpentry, the metal industry, and leather coating.


The Wagner Cobra pumps operate almost pulsation-free and thereby enables a uniform paint flow, achieving perfect spraying and superb surface quality, recommended for single-gun in the wood and furniture industry and small joinery shops.

The long-life diaphragms and the absence of packings in the fluid section guarantee high reliability, even under the most taxing working conditions.


Features & Benefits


  • Capability – The small internal volume of the paint level combined with the high working speed provide for sufficient output reserves, even when using multiple guns.
  • Reliability – Particularly durable diaphragms and paint, free of packing and rubbing, provide for the highest reliability and low maintenance costs through durable diaphragms and minimal wear and tear.
  • Rapid Pay back – The low internal volume of the paint level holds unique potential savings through extremely rapid colour changes and up to 60% lower flushing fluid consumption compared to other pumps of the same performance class.
  • Environmentally Friendly – Drastic reduction in solvent consumption when changing colour and flushing through a low internal volume and through paint level construction free of dead space.
  • Material Friendly – Large valve cross-sections and the hermetically closed, packing-free construction are the ideal qualifications for processing all types of paints and hardeners – especially for sensitive UV paints, isocyanates, and acrylates or abrasive corrosion protection materials.
  • Ice-free & quiet – Due to the intelligent internal geometry. Extremely robust, user-friendly, proven time and time again!

Yorkshire Spray Services Ltd_Wagner Cobra 40_25


Technical Data


Pump Ratio 40:1
Operating Pressure 250 bar, 3626psi
Volumetric Flow per Double Stroke 25 cm³/DS, 1,53 in³/DH
Max. Stroke Rate 200 DS/min
Min. Air Inlet Ø19 mm, 0.7 in
Material Inlet M–M 36 × 2
Material Outlet M–G 3/8″
Air Inlet Connection 2,5 – 6,3 bar, 36 – 91psi
Max. Sound Level 76 dB(A)
Material Temperature 10 – 80°C, 50 – 176.0°F
Ambient Temperature 10 – 60°C, 50 – 140°F
Material pH 3,5 – 9,0 pH
Max. Material Pressure at Pump Inlet 20bar, 290psi
Weight 32,0 kg, 70.6 lb
Yorkshire Spray Services Ltd - Wagner Cobra 40:25Yorkshire Spray Services Ltd - Wagner Group Authorised Partner

Scope of Delivery


Frame Spray Pack

Basic Spray Pack

Yorkshire Spray Services Ltd - Cobra 40_25 & Base Frame

  • Diaphragm Pump Cobra 40:25
  • Base Frame Assy.
  • Part No: 2329525
Yorkshire Spray Services Ltd - Cobra 40:25 Basic Spray Pack (Pump Only)

  • Diaphragm Pump Cobra 40:25
  • Pump only, NO FRAME
  • Part No: 2329523

Further Information


Brochure

Manual

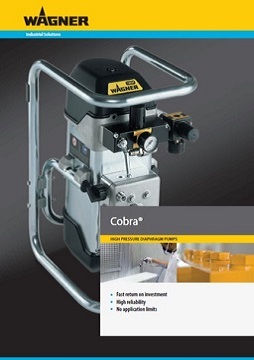

Cobra Brochure

Yorkshire Spray Services Ltd – Wagner Cobra BrochureOpen

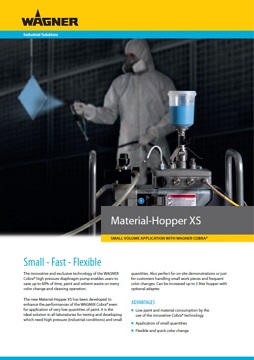

Small Cup Set

Yorkshire Spray Services Ltd - Wagner Cobra Small Cup Set BrochureOpen

Cobra 40:25

Yorkshire Spray Services Ltd - Wagner Cobra 40:25 ManualDownload

Additional information

Spray Pack Variants

Frame Spray Pack, Basic Spray Pack
