Wagner Cobra 40:25 Finishing

Product Description

Features & Benefits

• Capability – The small internal volume of the paint level combined with the high working speed provide for sufficient output reserves, even when using multiple guns.
• Reliability – Particularly durable diaphragms and paint, free of packing and rubbing, provide for the highest reliability and low maintenance costs through durable diaphragms and minimal wear and tear.
• Rapid Pay back – The low internal volume of the paint level holds unique potential savings through extremely rapid colour changes and up to 60% lower flushing fluid consumption compared to other pumps of the same performance class.
• Environmentally Friendly – Drastic reduction in solvent consumption when changing colour and flushing through a low internal volume and through paint level construction free of dead space.
• Material Friendly – Large valve cross-sections and the hermetically closed, packing-free construction are the ideal qualifications for processing all types of paints and hardeners – especially for sensitive UV paints, isocyanates and acrylates or abrasive corrosion protection materials.
• Ice-free & quiet – Due to the intelligent internal geometry. Extremely robust, user-friendly, proven time and time again!

Technical Data

Pump Ratio	40:1	Airless & AirCoat Applications.  Wagner’s Cobra High Pressure Diaphragm Pumps, specifically designed to ensure the highest reliability and the best performance. Warranty provided is such that the device or individual parts of the device are either replaced or repaired, detailed in Wagner’s Warranty decleration. See manual below for details.
Operating Pressure	250bar, 3626psi
Volumetric Flow per Double Stroke	25 cm³/DS, 1.53 in³/DH
Max. Stroke Rate	200DS/min
Material Inlet	M-M36 x 2
Material Outlet	M-G 3/8″
Air Inlet Connection	F–G 1/2″
Air Inlet Pressure	2.5 – 6.3bar, 36 – 91psi
Max. Sound Level	76dB(A)
Material Temperature	10 – 80°C, 50 – 176.0°F
Ambient Temperature	10 – 60°C, 50 – 140°F
Material pH	3.5 – 9.0pH
Max. Material Pressure at Pump Inlet	20bar, 290psi
Weight	32kg

Box Contents		Further Information

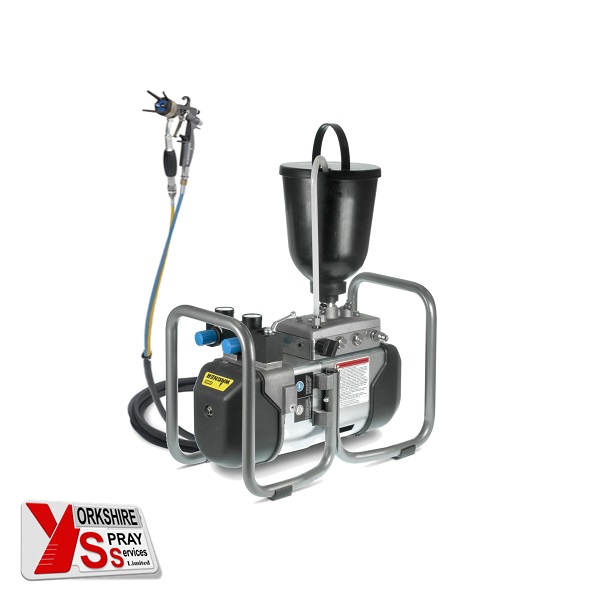

AirCoat SprayPack Diaphragm Pump Cobra 40:25 Base Frame Assy. Set AirCoat Regulator IceBreaker AC-Hose-DN4-PN270-1/4″NPS-7,5m-PA-T GM4700AC 25MPa NPSM1/4″ AirCap HV plus (Blue) Nozzle ACF3000 11/40 Fitting-RF-FM-G3/8-1/4NPSM-530bar-SSt Hopper-Set 5L Cobra Part No: 2329525		Brochure Open	Small Cup Sets Open	Manual Download

Additional information
