Product Description

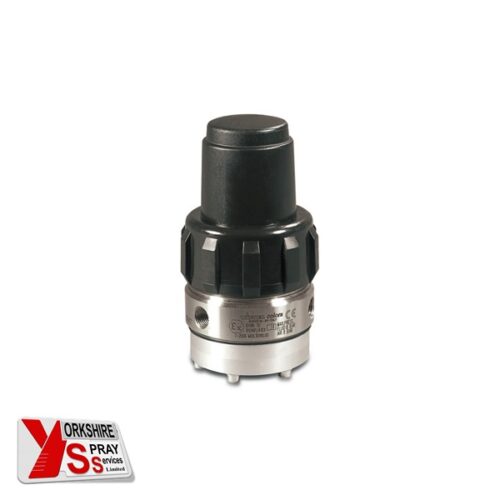

The Wagner FFC Service Set includes wearing parts for the Wagner Fine Flow Controller. Regular maintenance and timely replacement of wearing parts ensure a consistent application. Always follow Wagner’s operating and service manuals when carrying out work to maintain the required level of safety.
Service Set Details
 |
|
Service Set FFC |
|
NOTE
Only a Wagner Service Centre or a suitably trained person may carry out repairs and replace parts. Only repair and replace parts that are listed in the Chapter “Spare parts” and that are assigned to the unit. Before all work on the device and in the event of work interruptions:
-
- Relieve pressure from spray guns and devices.
- Secure spray guns against actuation.
- Switch off the energy/compressed air supply.
- Disconnect the control unit from the mains.
Always follow Wagner’s operating and service manuals when carrying out work to maintain the required level of safety.

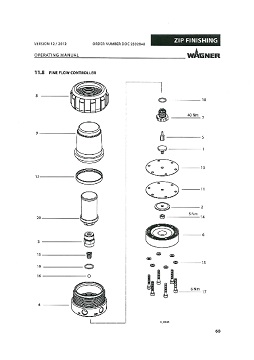

Fine Flow Control (FFC) Manual
Download
|
|
|
|
|
|

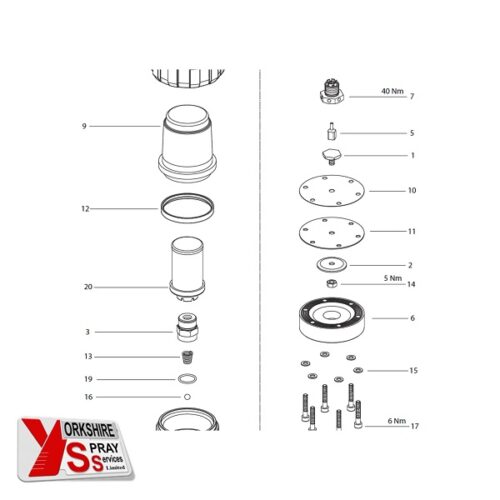

| Manual No |
Description |
Set QTY |
Part Numbers |
| 5 |
Shut-off Needle |
1 |
B391.03 |
| 7 |
Ball Seat Body, Complete |
1 |
T6007.00A |
| 10 |
RVO PTFE Diaphragm |
1 |
G725.05 |
| 11 |
RVO Diaphragm |
1 |
G726.06
|
| 12 |
Seal |
1 |
G640.05B |
| 13 |
Conical Spring |
1 |
H285.03 |
| 16 |
Ball, 1/4″ |
1 |
K811.03 |
| 18 |
O’Ring |
1 |
L148.06 |
| 19 |
O’Ring |
1 |
L118.06A |
| Wagner FFC Service Set Part No. |
T6193.00 |
