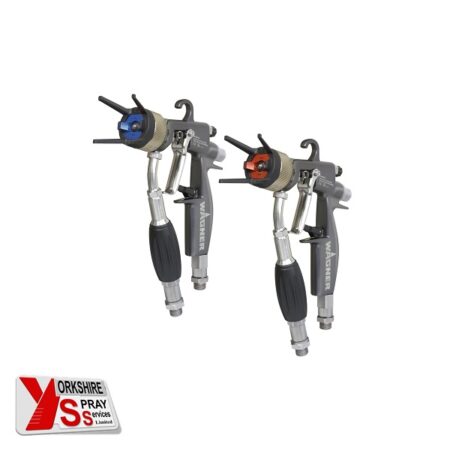

Wagner GM4700AC Gun & AC Hose Set

Product Description

The Wagner GM4700AC Gun & AC Hose Set, supplied with Wagner ACF3000 Nozzle, Wagner AirCap and Wagner’s AirCoat Twin Hose Set. The Gun has been designed for optimal ergonomics and comfort for a wide range of different users and applications. The GM4700AC gun is lighter and requires less trigger and holding force, making it even easier to handle and reducing fatigue during operation.

Features & Benefits

1 | Superior Atomisation – AirCoat produces a softer, more uniform spray pattern. Its AirCap design reduces material pressure, resulting in smoother and more consistent application.		4 | Fan Air Adjustment – At your fingertips,  easily adjusted spray pattern from wide to narrow right at the gun, perfect finishing and high productivity.
2 | High Transfer Efficiency – Fine, soft atomisation and uniform particle size from the Wagner AirCap, that delivers transfer efficiencies of up to 93%.		5 | Smallest & Lightest Gun – The GM4700AC is the smallest and lightest manual AirCoat (air assisted airless) gun on the market, weighing  just 526g.
3 | Tool Free Removeable Filter – The GM4700AC AirCoat Gun features a tool-free removable filter housing. No tools are required for changing the Cage Gun Filter with 53% larger volume. Very easy to use and reduces downtime.		6 | Human Engineered Design – Wagner AirCoat guns are designed with the comfort of the user. Best ergonomics, combined with light weight and low trigger holding force, reduces operator fatigue considerably.

AC Twin Hose Set – Features & Benefits

Wagner Aircoat Hose Set (Air and Fluid) for use with the Wagner GM4100AC, GM4600AC and GM4700AC. It comprises a standard Wagner high-pressure product hose with a PA inner tube (DN3 or DN4) and a DN6 air hose with a G¼” fitting. Suitable for coatings such as lacquer, hardener, solvent, separating agent and stains, with a maximum working pressure of 270 bar.

• For all Fluids – Product hoses made of polyamide or PTFE, suitable for all fluids.
• Optimum handling – AirCoat double hose with protective hose for optimum handling.
• Stainless Steel Hose Fittings – Hose fitting basically made of stainless steel, suitable for all lacquers, solvents, and hardeners.
• High Flexibility – Textile hose reinforcement for good flexibility.

AirCoat Hose Set Options

Technical Data

Max. Material Pressure 250 bar Max. Material Temperature 55 °C Material Connection NPSM 1/4″ Air Inlet Pressure 0 – 8 bar Air Inlet Connection G 1/4″ Ambient Temperature 5 – 40 °C Max. Sound Level 82 dB(A) Length 173 mm Height 216 mm Weight 597 g

Box Contents		Further Information
GM4700AC Gun & AC Hose Set GM4700AC Tip Seal Air Seal Gasket Union Nut AirCap (See Options) Nozzle/Tip ACF3000 (See Options) Cage Gun Filter (See Options) AC Twin Hose Set (See Options) Wagner Part No’s. 2313586/2313587		Brochure Open	Manual Download

394156,394158,394157,394155,394012, GM4600,GM4100
