Product Description
Wagner GM5000EAC Basic Gun (NOTE – Gun Only), Wagner’s Electrostatic AirCoat Guns are designed for a material pressure of 250bar (highest in the market for Electrostatic AirCoat guns). Suitable to apply high viscosity materials even with long hoses.
The right combination of Airless, AirSpray and Electrostatic charging, combined with the unique Wagner ability, results in perfect finishing, high productivity, soft spray pattern, excellent wrap around and extremely high transfer efficiency. The Wagner GM5000EAC Gun is suitable for AirCoat applications with low-conductive solvent-based material due to its integrated high-voltage cascade.
Wagner’s Electrostatic AirCoat Guns are also designed with the comfort of the operator in mind. Ergonomic interaction is enhanced because the gun is lighter and requires less trigger and holding force, helping to reduce fatigue considerably for the operator.
Additionally required: Control unit VM500 or VM5000
Features & Benefits

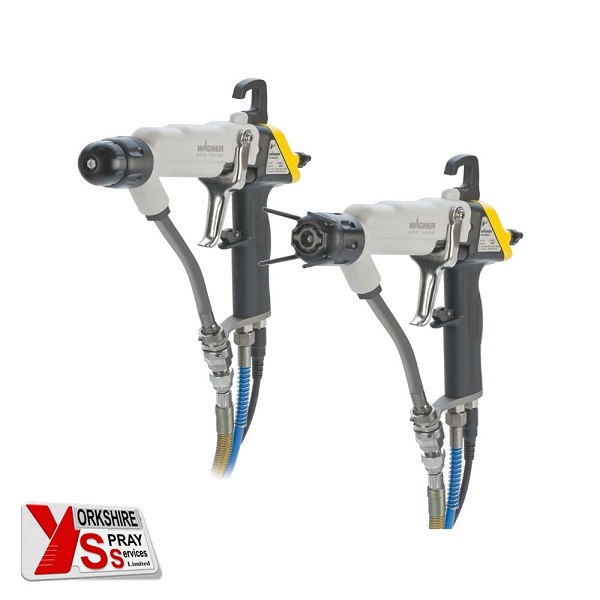

1 | Best Atomisation – Unique designed air caps for flat spray and round spray make it possible to achieve an optimum result for different paints.
- Flat Spray LV – best for low to medium viscosity material – red marking
- Flat Spray HV – best for medium to high viscosity material – blue marking
- Round spray – adjustable width
The air caps are color coded to avoid mistakes when replacing them.
2 | Unique ACF 5000 Nozzles –The new developed and patent pending ACF5000 Nozzle combines perfect spray pattern with easy flushing. If the nozzle is blocked it can be turned 180° to spray out the clog. |
 |
3 | 250bar Maximum Pressure – Following the development of increasing paint viscosity the GM5000EAC Gun is designed for a maximum material pressure of 250bar (highest in the market for electrostatic AirCoat guns). Therefore the gun is suitable to apply high viscosity materials even with long hoses.
4 | Material Filter Included – For perfect surface results and to avoid clogging of the nozzle, a material filter is integrated in the Wagner GM5000EAC Gun. It can be opened without removing the material hose from the gun, reducing downtime.
5 | Material & Air Swivels – Maneuverability and handling of the GM5000EAC can be increased by using material- and air swivels. Available as option. |
Electrostatic & AirCoat Technology
|
|
Application Areas
|
| The Wagner Electrostatic Guns are highly economical coating systems, offering decisive advantages in many areas of the industry.
High Surface Quality – Due to the homogeneous alignment of the electrostatic field lines, the film thickness is extremely uniform. In addition, particles charged with the same polarity improve significantly the atomisation power for creating an excellent surface finishing
Time Savings due to Wrap Around Effect – The paint, which is electrostatically charged by the spray gun, is attracted to all sides of the grounded object. This wrap-around effect saves time, and depending on the object, it may only need to be coated from one side
- Ergonomics – The combination of low weight, ergonomic design, outstanding balance and low trigger force is the basic building block for low extensive, fatigue-free work.
- Robust Design – Rough environment, intensive usage, different spraying materials and much more is what the GM5000 range is designed for.
- High Safety Standard – The GM5000 gun range is compliant with CE and Atex Zone 1 standards. The grounding of the gun is monitored by the control unit for maximum safety of the painter. It cuts the high voltage off as soon as grounding is interrupted.
- Excellent Finishing Quality – Innovative jets and air caps specifically developed for the perfect combination of optimal droplet size and electrostatic charge for outstanding coating rate and quality.
- Flexible Electrode – The material is ionized by the extremely flexible and durable electrode directly on the material jet. It maintains its form and provides a constant material charge and good wrap-around effect.
- Integrated Control Panel – Depending on the geometry of the workpiece, and the composition, different electrostatics parameters are necessary.
|
|
Whether lacquers for wood finishing, 2K materials for corrosion protection of metals or primers, the Wager Electrostatic Manual AirCoat guns are perfect for your individual needs
- Wood Finishing
- Corrosion Protection
- Plastic Finishing
- Aerospace Industry
- Automotive Components
- Motorcycle Parts
Typical Material
- Solvent & Water Based Material
- 1K & 2K Paints
- Primer & Top Coats
- Low-/ Medium- / High solid Material
- Paints & Release Agent
- PU & Epoxy Material
- Metallic paint
- UV Paint
|
Technical Data
| Max. Output Voltage |
80kV |
| Max. Output Current |
100 µA |
| Max. Material Pressure |
250 bar (3600psi) |
| Material Connector |
BSP 1/4″ |
| Material Temperature |
50°C (140.0°F) |
| Max. Air Inlet Pressure |
8bar |
| Compressed Air Connector |
BSP 1/4″ |
| Operating Temperature |
5 – 40°C (41.0 – 104.0°F) |
| Recommended Paint Resistant |
150kΩ |
| Weight |
697g |
Box Contents
|
| Wagner GM5000EAC Gun Only |
|
|
Wagner’s extensive experience in Electrostatic Application is applied to the newly developed atomisation system to give the best finishing quality & high transfer efficiency.
|
|
Wagner Electrostatic – High & Low Pressure Applications.
Perfect surface finishing, excellent wrap around & fast return of investment
|
|
