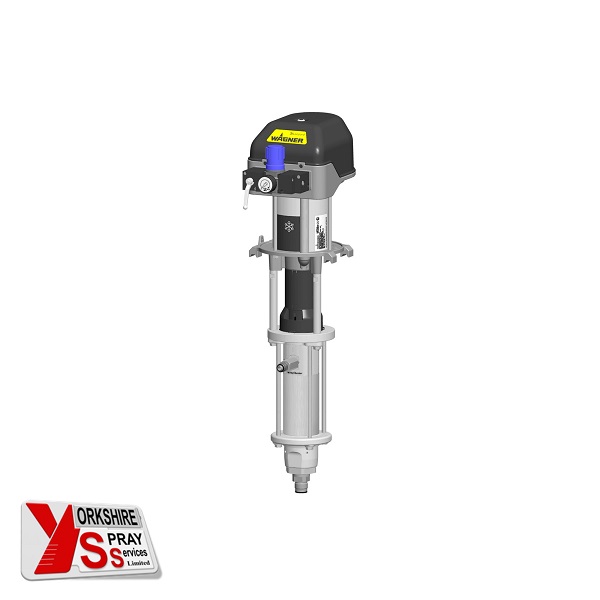

Wagner Leopard 8:600

Product Description

The Wagner Leopard 8:600, Low-pressure piston pump, stainless steel for larger feed and circulating systems up to 30 L/min. Lasting power due to low-icing Ice Breaker air motor. Often used as a transfer pump in small and large paint circulation systems, as feed pump for mixer and dosing systems, medium material withdrawal.

Features & Benefits

• High Reliability – The extremely low pulsation and low maintenance controller offers very high reliability, even during continuous operation.
• Well positioned – Using the base plate, the Wagner Leopard 8-600 pump can be easily and securely mounted on wall brackets, trolleys and frames.
• User-Friendly – The integrated compact pressure regulator simplifies adjustment of the pump pressure and the air current for AirCoat applications.
• Well Positioned – Using the base plate, the pump can be easily and securely mounted on wall brackets, trolleys and frames.
• Optimum Service – Easy-to-clean separating fluid chamber. Rapid and simple replacement of the self-adjusting packings without special tools.
• Universal Application – Made entirely of high quality stainless steel, the fluid section is designed for a long service life and low wear, even when conveying abrasive and chemically corrosive material.

Technical Data

Pump Ratio 8:1 Operating Pressure 64 bar, 928 PSI Volumetric Flow per Double Stroke 600 cm³/DS, 36.61 in³/DH Volumetric Flow per 60 DH 30 l/min Max. Stroke Rate 50 DS/min Material Inlet M–M36 x 2″ Material Outlet M–M 24×1,5 Air Inlet Pressure 2,5 – 8,0 bar, 36 – 116 PSI Air Inlet Connection I-G 1/2″ Sound Level at 6 bar Air Pressure 81 dB(A) Material Temperature 5 – 80 °C, 41 – 176 °F Ambient Temperature 5 – 60 °C, 41 – 140 °F Material Ph 3.5 – 9 pH Max. Material Pressure at Pump Inlet 20 bar, 290 PSI Allowable Inclination ±10 ° Weight 43kg / 94.8lb

Further Information

Wagner Leopard 8:600,8600,8-600
