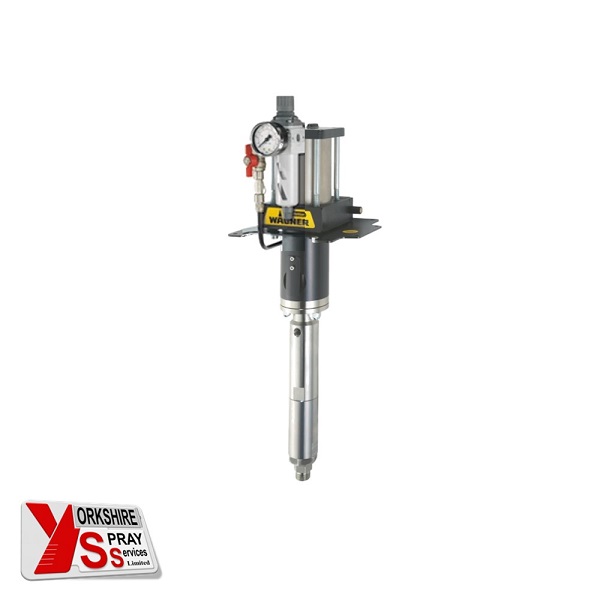

Wagner EvoMotion 40:15S PE/T

Product Description

The Wagner EvoMotion 40:15S PE/T – High-pressure piston pump, stainless steel, for Airless and AirCoat applications up to 320 bar and 0.9 L/min. Ideal, for example, for professional single-item stations in production and in workshops.

Ideal for a wide variety of solvent-based and water-based materials. The fluid sections are made of stainless steel and for this reason are extremely robust, durable, reli­able and low-maintenance. The power full air motor on the Wagner EvoMotion 40:15S PE/T enables constant working conditions for best coating results.

Features & Benefits

• Maximum Application Efficiency
• Ideal for Highly Viscous Materials
• Reduced Solvent Consumption & Waste
• High Efficiency
• Low Operating Costs
• High Flexibility
• Well Positioned
• Up to 40% reduction in solvent consumption and material waste during colour changes and flushing.
• Ideal for small quantities of paint or frequent colour changes.

Technical Data

Pump Ratio 40:1 Operating Pressure 320 bar, 4641PSI Volumetric Flow per Double Stroke 15 cm³/DS, 0,92 in³/DH Volumetric Flow per 60 DH 0.9 l/min Max. Stroke Rate 60 DS/min Material Inlet A–M36x2 Material Outlet A–1/4‘‘ NPS Air Inlet Connection 8 mm Air Inlet Pressure 2,5 – 8,0 bar, 36 – 116 PSI Sound Level at 6 bar Air Pressure 74 dB(A) Material Temperature 5 – 80 °C, 41 – 176 °F Ambient Temperature 5 – 60 °C, 41 – 140 °F Material Ph 3.5 – 9 pH Max. Material Pressure at Pump Inlet 20 bar, 290 PSI Allowable Inclination ±10 ° Weight 11,0 kg, 24.3 lb

Box Contents		Further Information
Basic SprayPack Piston Pump EvoMotion 40:15S PE/T (Pump Only) Wagner Part No. 2329450		Brochure Open	Spray Packs Open	EvoMotion Manual Download
