Wagner Leopard 48:110 SP-AL Finishing

Yorkshire Spray Services Ltd - Wagner SP Leopard 48_110 Airless

The Wagner Leopard 48:110 SP-AL Finishing High-pressure piston pump, stainless steel, for Airless applications. Ideal, for example, for industrial coating in the metals industries and for smaller protective coating applications, long hose lines. Extremely low pulsation and low maintenance controller offers very high reliability, even during continuous operation.

£POA

Please call or email for pricing – Discounts may be offered for multiple purchases, or any agreed part exchange.

Description Additional information Reviews (0)

Product Description

The Wagner Leopard 48:110 SP-AL Finishing – High-pressure piston pump, stainless steel, for Airless applications. Ideal, for example, for industrial coating in the metals industries and for smaller protective coating applications, long hose lines.

Reliable – The extremely low pulsation and low maintenance controller offers very high reliability, even during continuous operation.
Designed for Varied Applications – Made entirely of high quality stainless steel, the fluid section is designed for a long service life and low wear, even when conveying abrasive and chemically corrosive material.
Ideal for Corrosion Protection – Suitable when applying large amounts of material and using several guns.
Extremely Robust – Reliable and easy to maintain in everyday use.

Features & Benefits

1 \| Powerful & Reliable – The unique internal design of the motor & its special discharge valves drastically reduce ice formation & prevent accumulation to ensure superior performance & exceptional reliability		5 \| Under Full Pressure – The packing-free, anti-stalling pilot valve is always fed by full air pressure, regardless of the adjusted working pressure, to guarantee high speed inversions & optimal performance
2 \| Safe Operation –The pressure regulator is integrated with a safety air valve to ensure when it is closed that no pressure is left in the air motor		6 \| Performance & Durability – Self-adjusting packings and a thick hard chrome plated stainless steel fluid section ensures durability regardless of the material used
3 \| Service Friendly – The release agent cup is easily accessible. The quick-release coupling between the piston rod and air motor make it possible to quickly and easily disconnect the fluid section		7 \| Acid Catalyst Option – All components that come into contact with the acid catalyst can be supplied in 316ss. This option can be used with the Twin Control & 2K Smart mix systems
4 \| Filtration & Recirculation – The fluid section has the option to be fitted with a high pressure fluid filter or release combo for a quick pressure release, fill or flush function. The Wagner Leopard 48:110 is supplied with the HP-Filter DN12-PN530-CS kpl.		8 \| Easy & long Lasting – Large ball valve with hard metal seats ensures strong suction power & extremely long working life. Easily opened for cleaning without disassembling the fluid section. The suction hose moves freely on a swivel joint

High Pressure Material Filter

High pressure filters for high flow rates. To be mounted directly at the pump outlet. Equipped with big and easy to clean filter insert Type L. Completely made from stainless steel. The ball valve is used to depressurise the pump in order to prime or flush the pump directly w/o dismantling the HP-hose. The ball valve can also be used to install a full circulation system, when e.g. material must be heated or circulated for other reasons.

Advantages

Easy to Clean – Large product filter, easy to flush and clean, for optimum service.
Up to 530 bar – For product pressure up to 530 bar.
Easy to Remove – Stable ball cock in easily accessible position.
Complete Solutions – Standardised connection geometry for product return systems: from simple pressure relief to complex material circulation.
Suitable for – timber, synthetic materials or metal coatings, thin paints or high-viscous corrosion protection.

Yorkshire Spray Services Ltd - Wagner Material Processing - Wagner High Pressure Filter DN12-PN530-SSt - Part No. 2329025

Technical Data

Pump Ratio

48:1

Yorkshire Spray Services Ltd - Wagner SP-AL Leopard 48:110 Airless Spray Pack

Airless & AirCoat Applications. Wagner’s IceBreaker Pumps, optimal choice for many high-pressure application. Ideal for professional individual lacquer stations or as a hardener pump.

Warranty provided is such that the device or individual parts of the device are either replaced or repaired, detailed in Wagner’s Warranty decleration. See manual below for details.

Yorkshire Spray Services Ltd - Wagner Industrial Warranty

Yorkshire Spray Services Ltd - Wagner Group Authorised Partner

Operating Pressure

370bar / 3249psi

Volumetric Flow per Double Stroke

110cm³/DS, 6.7 in³/DH

Volumetric Flow per 60 DH

6.6l/min

Max. Stroke Rate

60DS/min

Material Inlet

A – M 36 × 2

Material Outlet

A – M 24 x 1.5 1/4″NPS

Air Inlet Pressure

2.5 – 8.0bar / 36 – 116psi

Sound Level at 6 bar Air Pressure

74dB(A)

Material Temperature

5 – 80 °C / 41 – 176 °F

Ambient Temperature

5 – 60 °C / 41 – 140 °F

Material Ph

3.5 – 9 pH

Max. Material Pressure at Pump Inlet

20bar / 290psi

Allowable Inclination

±10°

Weight

38kg

Box Contents

Further Information

Airless SprayPack

Piston Pump Leopard 48:110 PE/TG
Trolley PC Assy.
Suction Hose DN25-SSt Assy.
HD-Filter DN12-PN530-CS kpl.
Return Pipe DN6-G1/4″-100mm-PA
Gun GM 1 530
HP-Hose-DN6-PN530-¼”NPS-10,0m-PA
PROTEC TIP Reversible Tip 517

Brochure

Yorkshire Spray Services Ltd - Wagner Finishing SprayPack Brochure

Open

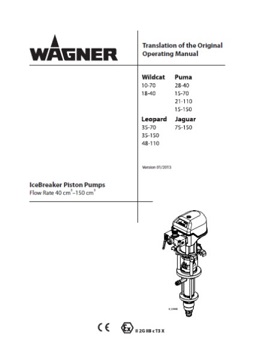

Manual

Yorkshire Spray Services Ltd - Wagner Puma 48:110

Download

Wagner Leopard 48:110,48110,48-110

Additional information

Spray Pack Variants	Airless Spray Pack, Pump & Trolley Spray Pack, Basic Spray Pack

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

1 \| Powerful & Reliable – The unique internal design of the motor & its special discharge valves drastically reduce ice formation & prevent accumulation to ensure superior performance & exceptional reliability		5 \| Under Full Pressure – The packing-free, anti-stalling pilot valve is always fed by full air pressure, regardless of the adjusted working pressure, to guarantee high speed inversions & optimal performance
2 \| Safe Operation –The pressure regulator is integrated with a safety air valve to ensure when it is closed that no pressure is left in the air motor		6 \| Performance & Durability – Self-adjusting packings and a thick hard chrome plated stainless steel fluid section ensures durability regardless of the material used
3 \| Service Friendly – The release agent cup is easily accessible. The quick-release coupling between the piston rod and air motor make it possible to quickly and easily disconnect the fluid section		7 \| Acid Catalyst Option – All components that come into contact with the acid catalyst can be supplied in 316ss. This option can be used with the Twin Control & 2K Smart mix systems
4 \| Filtration & Recirculation – The fluid section has the option to be fitted with a high pressure fluid filter or release combo for a quick pressure release, fill or flush function. The Wagner Leopard 48:110 is supplied with the HP-Filter DN12-PN530-CS kpl.		8 \| Easy & long Lasting – Large ball valve with hard metal seats ensures strong suction power & extremely long working life. Easily opened for cleaning without disassembling the fluid section. The suction hose moves freely on a swivel joint
