Name: Wagner Piston Service Set Cobra
SKU: 37714
Availability: InStock

Wagner Piston Service Set Cobra

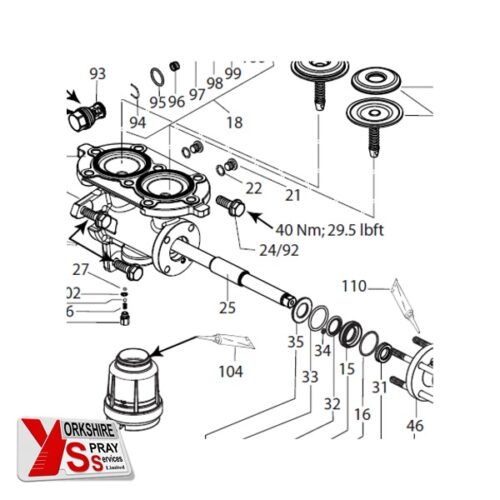

Yorkshire Spray Services Ltd - Wagner Service Piston - Cobra - Part No. 322917 & 2314671

Price range: £328.46 through £530.19 + VAT

Wagner Piston Service Set Cobra, for Wagner High Pressure Double Diaphragm Pumps, Cobra 40:10 & 40:25. Material/Fluid section service set, include the set for wear parts for regular equipment service and maintenance. High level of safety required.


	NEXT working day delivery for orders placed before 12.00pm. Delivery on back ordered products approx. 4 – 7 days delivery

Wagner Part No. 322917 | 2314671

SKU: N/A High Pressure Pump Spares, Service Sets

Description Additional information Reviews (0)

Product Description

Wagner Piston Service Set Cobra, for Wagner High Pressure Double Diaphragm Pumps, , Wagner Cobra 40:10 & Wagner Cobra 40:25. The Wagner Piston Service Set Cobra service set, includes the service set wear parts for regular equipment service and maintenance. High level of safety required.

Service Set Details

			Service Set Cobra 40:10	Service Set Cobra 40:25	NOTE Only a Wagner Service Centre or a suitably trained person may carry out repairs and replace parts. Only repair and replace parts that are listed in the Chapter “Spare parts” and that are assigned to the unit. Before all work on the device and in the event of work interruptions: Relieve pressure from spray guns and devices. Secure spray guns against actuation. Switch off the energy/compressed air supply. Disconnect the control unit from the mains. Always observe the operating and service manuals at all times when carrying out work. Download

Manual No	Description	Set QTY	Part Numbers	Part Numbers
16	O’Ring	2	N/A	2308886
25	Piston rod D19/53	1	322402	N/A
25	Piston rod D25/70	1	N/A	2306251
31	Rod Sealing Profile BS	2	9974182	2306143
32	Rod Sealing Set	2	9974183	2306144
33	O’Ring	2	9974186	2306145
59	Seal Wiper Ring	2	9974185	N/A
59	Seal Wiper Ring	1	N/A	9974090
108	Piston Rod Assy. Pin	1	322930	N/A
109	Piston Rod Assy. Pin	1	N/A	2314670
Service Set Part No.			322917	2314671
