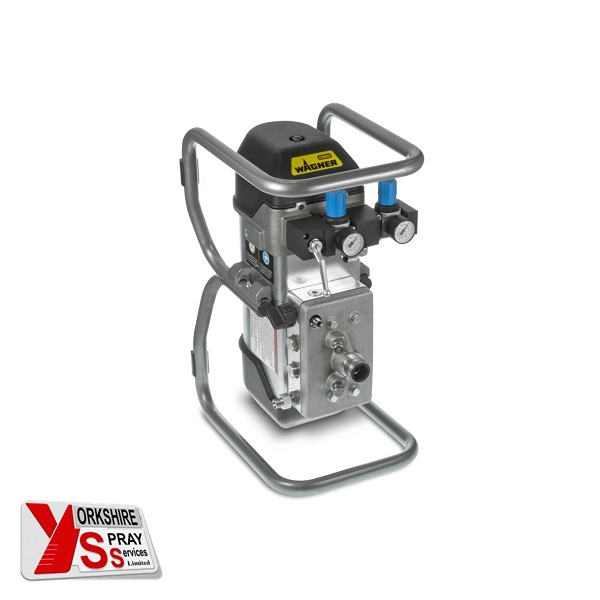

Wagner Cobra 40:10

The Wagner Cobra 40:10 a durable double diaphragm pump for AirCoat and Airless applications up to 250 bar. The extremely small inside volume has no dead space, which makes for lightning-fast paint change and low flushing-agent consumption. The Wagner Cobra 40:10 pump is just as powerful as many a large-scale piston pumps.



1 in stock

£POA Please call for pricing. Discounts may be offered for multiple purchases, or any agreed part exchange
SKU: SP10991/2342248 Categories: ,

Product Description


The Wagner Cobra 40:10 a durable double diaphragm pump for AirCoat and Airless applications up to 250 bar. The extremely small inside volume has no dead space, which makes for lightning-fast paint change and low flushing-agent consumption. The Wagner Cobra 40:10 pump is just as powerful as many a large-scale piston pumps. The Cobra is the first high-pressure pump without packing, which means that it operates virtually without friction or shear. It is an extremely low-wear product that handles sensitive and reactive paints gently (UV paints, acrylics and isocyanates).

The pump operates almost pulsation-free and thereby enables a uniform paint flow, achieving perfect spraying and superb surface quality, recommended for single-gun in the wood and furniture industry and small joinery shops.

The long-life diaphragms and the absence of packings in the fluid section guarantee high reliability, even under the most taxing working conditions.


Features & Benefits


  • Capability – The small internal volume of the paint level combined with the high working speed provide for sufficient output reserves, even when using multiple guns.
  • Reliability – Particularly durable diaphragms and paint, free of packing and rubbing, provide for the highest reliability and low maintenance costs through durable diaphragms and minimal wear and tear.
  • Rapid Pay back – The low internal volume of the paint level holds unique potential savings through extremely rapid colour changes and up to 60% lower flushing fluid consumption compared to other pumps of the same performance class.
  • Environmentally Friendly – Drastic reduction in solvent consumption when changing colour and flushing through a low internal volume and through paint level construction free of dead space.
  • Material Friendly – Large valve cross-sections and the hermetically closed, packing-free construction are the ideal qualifications for processing all types of paints and hardeners – especially for sensitive UV paints, isocyanates, and acrylates or abrasive corrosion protection materials.
  • Ice-free & quiet – Due to the intelligent internal geometry. Extremely robust, user-friendly, proven time and time again!

Yorkshire Spray Services Ltd – Wagner Cobra 40:10 Action


Small Volume Application


The innovative and exclusive technology of the Wagner Cobra high pressure diaphragmWagner Cobra Small Cup Set & Mount pump enables users to save up to 60% of time, paint and solvent waste on every color change and cleaning operation.

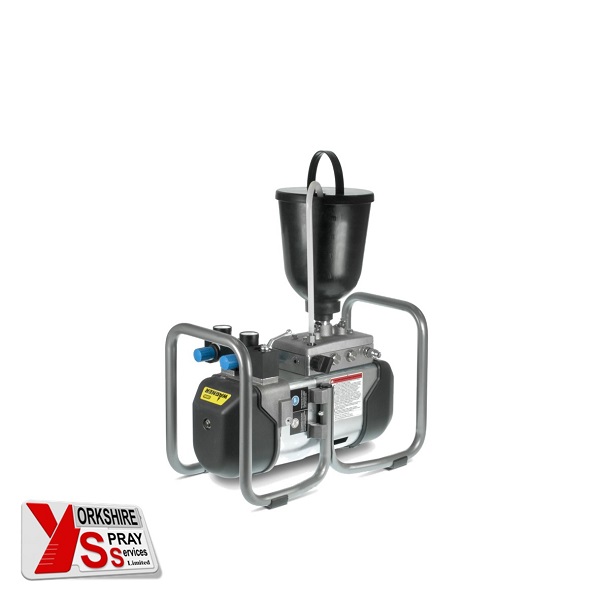

The new Material-Hopper XS has been developed to enhance the performances of the Wagner Cobra units, even for application of very low quantities of paint. Also perfect for on site demonstrations or just for customers handling small work pieces and frequent colour changes.



Advantages & Benefits

Ideal solution in all laboratories for testing and developing which need high pressure (industrial conditions) and small quantities.



  • Low Paint & Material Consumption by the use of the innovative Cobra technology
  • Application of small quantities ideal for testing & laboratories
  • Flexible & Quick color change
  • Small, Fast & Flexible

Technical Data


Pump Ratio 40:1
Operating Pressure 250 bar, 3626 PSI
Volumetric Flow per Double Stroke 10 cm³/DS, 0,61 in³/DH
Max. Stroke Rate 200 DS/min
Min. Air Inlet Ø19 mm, 0.7 in
Material Inlet M–M 36 × 2
Material Outlet M–G 3/8‘‘
Air Inlet Connection F–G 1/2‘‘
Air Inlet Pressure 2,5 – 6, bar, 36 – 87 PSI
Max. Sound Level 76 dB(A)
Material Temperature 10 – 80°C, 50 – 176.0 °F
Ambient Temperature 10 – 60°C, 50 – 140 °F
Material pH 3,5 – 9,0 pH
Max. Material Pressure at Pump Inlet 20 bar, 290 PSI
Weight 19,0 kg, 41.9 lb
Yorkshire Spray Services Ltd - Wagner Authorised Service Centre & Distributor_Industrial Solutions

Yorkshire Spray Services Ltd - Cobra 40_10

Wagner Cobra 40:10


Further Information


Brochure

Manual

Cobra SprayPack

Cobra Basic

Cobra Brochure

Yorkshire Spray Services Ltd – Wagner Cobra BrochureOpen

Small Cup Set

Yorkshire Spray Services Ltd - Wagner Cobra Small Cup Set BrochureOpen

Cobra 40:10

Yorkshire Spray Services Ltd - Wagner Cobra 40:10 ManualDownload

  • Diaphragm Pump Cobra 40:10
  • Cobra 40:10 Base Frame
  • AC Hose DN4 PN270 1/4″ NPS 7.5m
  • Hopper 5ltr with Lid
  • Exhaust Pipe
  • Aircoat Regulator
  • GM4700AC Gun
  • Aircap LV (Red)
  • Nozzle ACF3000 13/40
  • Diaphragm Pump Cobra 40:10
  • Cobra 40:10 Base Frame
