Wagner Prima Sprint XE

Product Description

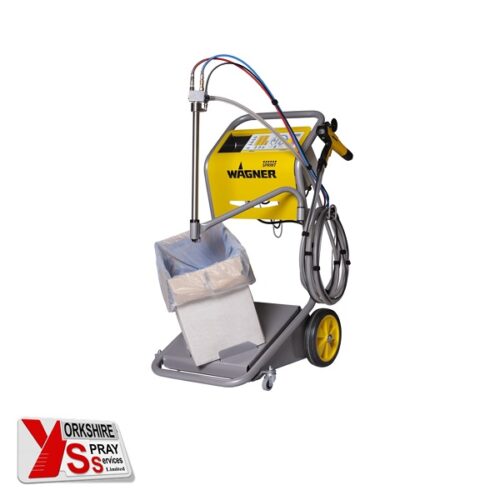

The new Wagner Prima Sprint XE Airfluid Manual System is perfect for powder coating straight from a manufacturer’s powder box. With the diagonal positioning of the powder box it guarantees complete emptying of the box, to reduce waste.

The new Wagner PEM-X1 Gun has a unique High Dynamic Remote function that allows the immediate selection of a pre-adjusted program, without the necessity to look at the controller. The clear and structured controller interface with digital display ensures that the operational parameters are easily viewed at a glance. This revolutionary new design is taking the industry by storm. The user-friendly nature and the unique “double click of the trigger”, to change settings for different sections of the work piece has made it the Number one choice for all who try it!

Features & Benefits

Wagner’s revolutionary design throughout the Sprint range has taken the industry by storm. The user-friendly nature and the unique “double click of the trigger”, to change settings for different sections of the work piece has made it the Number one choice for all who try it!
Soft powder cloud, more uniform film thicknesses & optimised application. Optimised electrostatics, perfect powder charging in conjunction with the integrated high voltage cascade. Adaptable Corona Star Set in conjunction with the newly integrated gun hook on the PEM-X1 Gun.	Simple assembly & disassembly of the wear parts & of the whole nozzle system. Unique “double click” trigger. Air pulsation purge for fast colour changes. Remote controlled. vibration unit Suction unit with fluid crown for optimal fluidisation.	Optimized positioning of the Powder container for better emptying. EPG Sprint XE Controller. Easy to replicate results. Recoating program at the push of a button. Save up to 30% of your Powder material.
Increased transfer rates (application efficiency), due to the optimised process of the FlexNozzle Flat Jet Atomising System, for the widest variety of coating demands in practical applications. New Safety technology for the reliable processing of standardised Metallic and UDS powder paints plus, of course, all standard powder paints. Certified for Zone 21 (internal coating).

Yorkshire Spray Services Ltd - Wagner Powder Coating

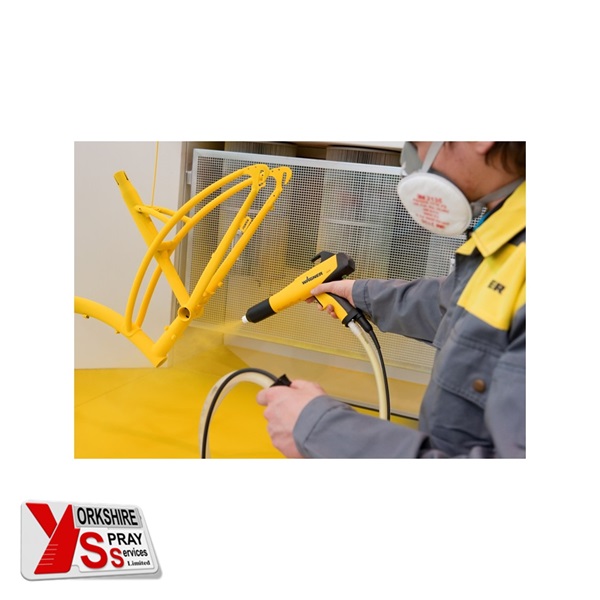

PEM X1 Manual Gun

The Wagner Prima Sprint XE along with the Wagner PEM-X1 Corona Gun sets the standard and trend for all kinds of surfaces used today in powder coating. The new gun generation improves perfection and precision even further, the product philosophy combines a balanced finesse on all levels with long life expectancy and optimal handling. Well balanced ergonomics are based on experience! Wagner has incorporated this experience in the design of the new gun generation which combines first-class design and functionality for perfect finishing solutions.

High Dynamic Remote Function – Selected by simply double clicking the gun trigger in order to activate the stored program, fastest & most ergonomic program change on the market!

Durability – Robust gun body protects all the electronic components. When used as a standalone manual unit the Prima Sprint unit utilizes program number 4 for the HDR function.

Untiring & Ergonomic – The PEM-X1 weighs only 500g and thus just fewer than 3% less than the comparable models. Reduced weight gun extensions (150mm & 300mm) for coating deep work-piece geometries are also available

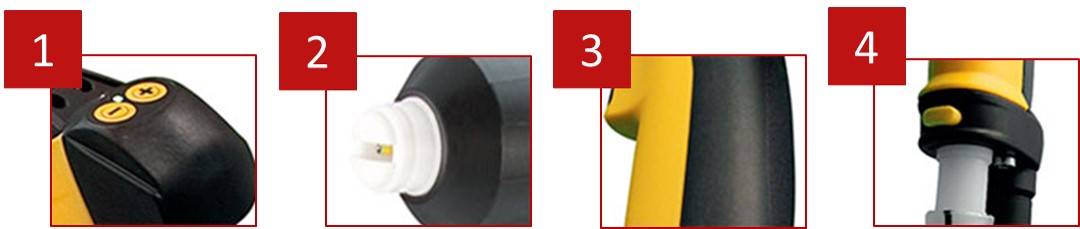

Yorkshire Spray Services Ltd - Wagner X1 Gun Detail

1 | Remote Control – User friendly, offering more flexibility during application

2 | Nozzles – Designed for perfect coating, including the use of Metallic powders

3 | Ergonomic Handle – Good grip, balance and fit for perfect handling

4 | Quick Release Coupling – Allows fast & efficient colour changes

Wagner Powder PEM X1 Gun Detail

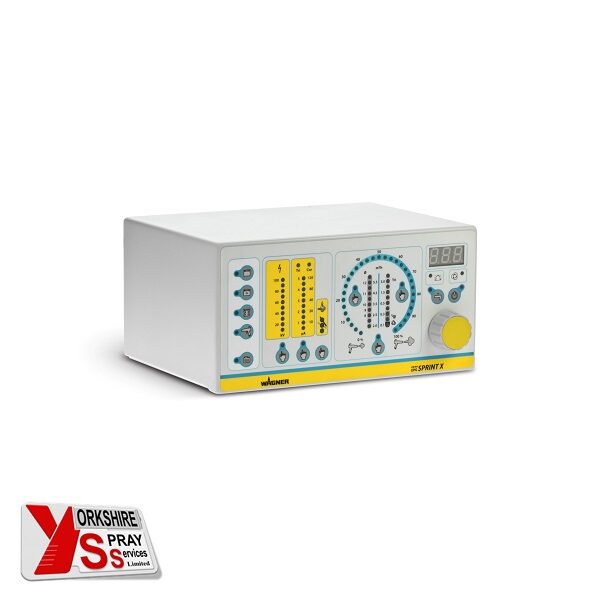

EPG XE Sprint Controller

All important coating parameters can be chosen, changed and stored in programs with the EPG-XE Sprint controller. It provides all Wagner Guns with an easy operating knob and precise AFC Closed-Loop-Technology.

No loss of time, no coating interruptions.
Closed-Loop AFC for safe repeatable amount of powder
The only controller with adjustable HV-characteristic
Fast, intuitive, self-explanatory use
Short colour change due to impulse purge program
Perfect for Corona and Tribo application
Up to 50 coating programs may be stored

The clear and structured controller interface supported by a digital display ensures that the operational parameters on the Wagner Prima Sprint XE are easily viewed at a glance.

Yorkshire Spray Services Ltd - Wagner Manual Powder Coating - Wagner EPG XE Sprint Controller

Technical Data

	Prima Sprint XE	PEM-X1 Gun	EPG XE Control
Max. Input Voltage	85 – 250V	22Vpp	85 – 250v
Max. Output Voltage	N/A	100Kv	N/A
Max. Input Power	110w	N/A	120w
Operating Temp.	5 – 45°C
Min. Input Frequency	50 – 60Hz	N/A	47 – 440Hz
Max. Powder Output	N/A	450g/min	N/A
Min. Air Inlet Pressure	6 – 8bar	N/A	6 – 8bar
Air Inlet Connection	G 1/4″ I	N/A	G 1/4″
Valve Control Voltage	24v	N/A
Min. Exhaust Air Flow	0.05 – 20.0 Nm³/h	N/A
Protection Class	IP64
Polarity	N/A	Negative	Neg – or Pos +
Weight	38kg	490g	3.3kg

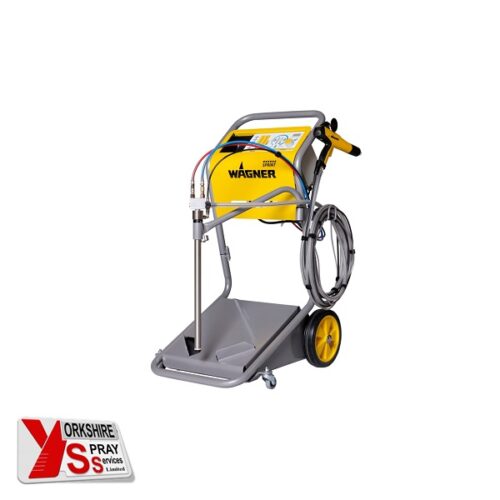

Yorkshire Spray Services Ltd - Wagner Powder Coating - Wagner Prima Sprint AF XE - Box Feed - Wagner Part No. 2355400

Box Contents

Prima Sprint AF XE
Corona PEM-X1 Gun Control, EPG-Sprint XE Injector P1-F1 Device Cart Suction Lance Powder Hose 5m D11 (ø11mm) Mains Cable 3m Grounding Cable 10m Connection Hose
