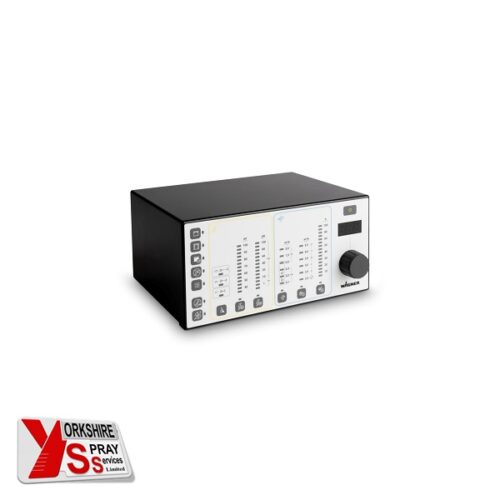

Wagner WACON Sprint 2 X

Product Description

The Wagner WACON Sprint 2 X is used for manual control of manual and automatic guns. By connecting the power supply of other WACON modules, the WACON Sprint 2 X can be used individually as well as for complete systems High-precision air volume and high voltage regulators allow reproducible coating results.

All important coating parameters can be chosen, changed and stored in programs with the Wagner WACON, which provides all Wagner Guns with an easy operating knob and precise AFC Closed-Loop-Technology.

Features & Benefits

• Quality at the touch of a button – The DSO function helps every coater to achieve finer, high-quality surfaces at the touch of a button. The function reduces overloading effects such as orange peel, edge build-up or back spray and is suitable for complex components and critical powders. The DSO function also enables good penetration in undercuts with small gun distances.
• Flexible Applications – The Wagner WACON Sprint 2 X enables results to be repeated at any time. Four recipes can be accessed directly via quick selection. By selecting on the rotary knob, a further 46 recipes can be called up with one click.
• Reliable – The WAGNER Air Flow Control technology ensures exact powder control. A high-precision closed control loop permanently measures and regulates the air volume during the coating process and thus produces a uniform powder cloud for high-quality coating results.
• Easy Handling Clearly arranged control elements allow intuitive handling. All parameters are entered via a central rotary control. The intelligent control system can be adapted to a wide range of requirements by means of a multitude of setting options.

Technical Data

Mains (AC) 90 – 250VAC Frequency 47 Hz – 63 Hz Input Power Max. 40W Output Voltage Max. 22Vpp Output Current Max. 0.9A High Voltage 10 – 100kV Input Air Pressure 6 – 8bar /  87 – 116psi Air Flow 15m3/h Weight 3.3kg
