Product Description

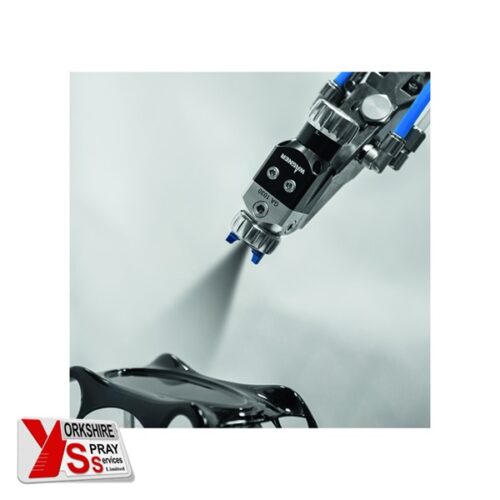

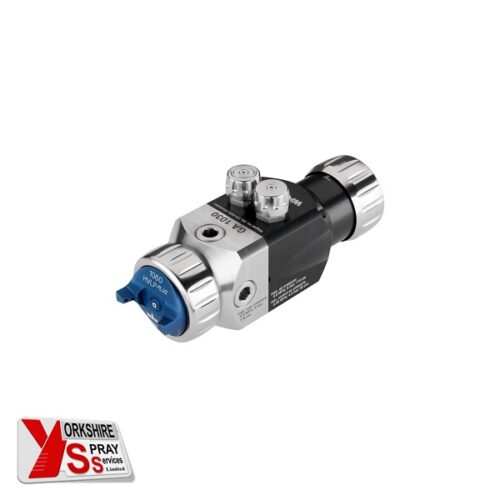

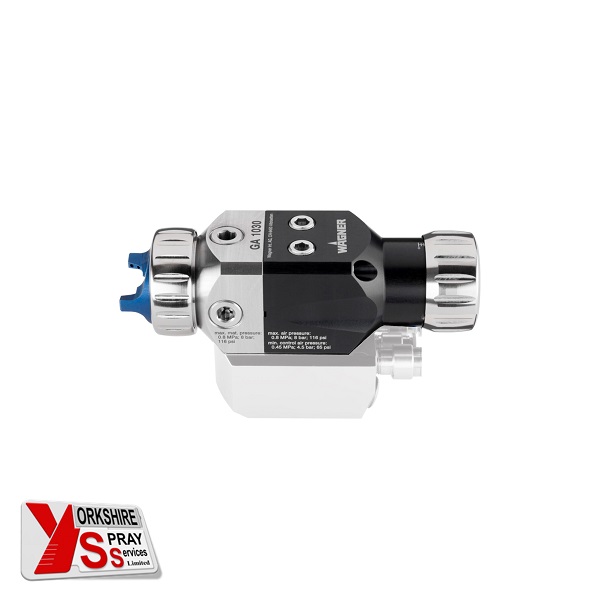

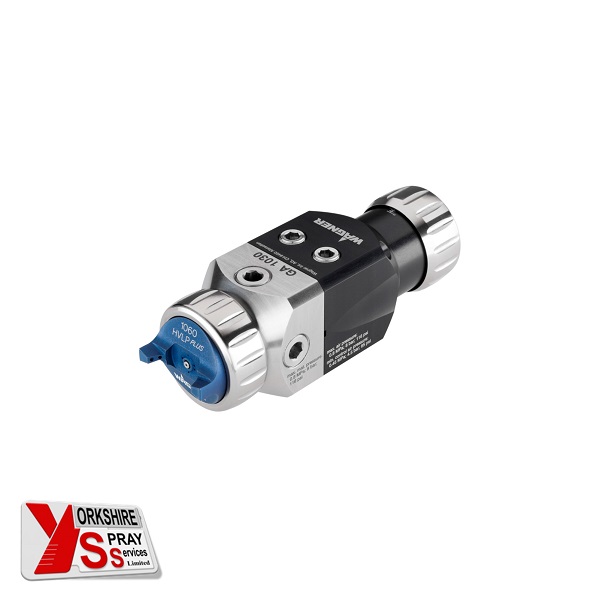

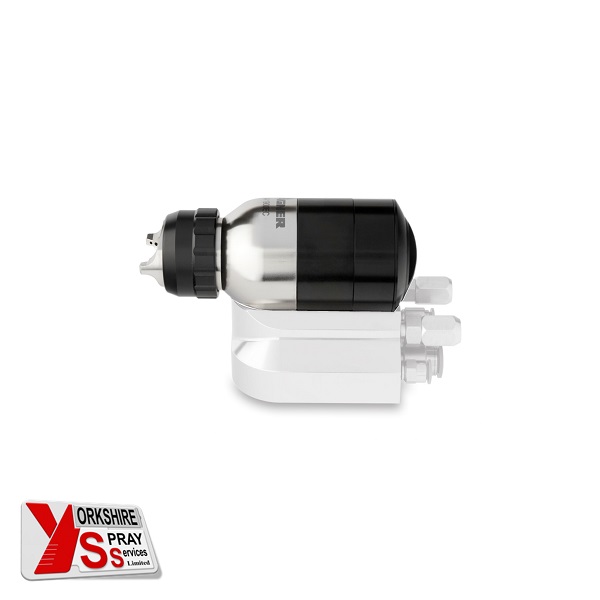

The Wagner TopFinish GA1020 & GA1030 Gun, Automatic Airspray Gun with excellent atomising properties and a high-quality spray pattern. The universal spray gun is particularly low-wear and enables process-safe coating in continuous operation. Long maintenance intervals thanks to long-lasting components, along with fast exchange of wear and spare parts. Available with direct mounting or via various adapters.
The Wagner GA1020 & GA1030 are available with back and side connections for flexible hosing, including internal or external control, along with or without circulation. (Dump valve available as an option.) For use with UV and highly abrasive materials, the gun is available as TopFinish GA1020 with membrane seal.
Features & Benefits
- Flexible Applications – The Wagner TopFinish GA1020 & GA1030 gun, suitable for coating workpieces made of wood, metal and plastic where a high-quality appearance is important. It can be used for water- and solvent-based as well as UV- and highly abrasive materials. It can be individually configured for special requirements.
- Excellent coating results – Savings in material consumption thanks to a transfer efficiency of up to 88%.
- Low Maintenance – Optimised, particularly durable packing. Particularly low paint mist thanks to optimised air channel fast replacement of wear and spare parts. Needle with wear-resistant and low friction coating. Optimised, extra durable needle packing with two-piece nozzle: Only the nozzle head is exchanged.
- Reliable – The universal device is particularly low-wear and enables process-safe coating in continuous operation. Precisely manufactured air caps and an optimised air flow enable perfect atomisation.
 |
Application Areas
- Metal Coating
- Plastic Coating
- Wood Coating

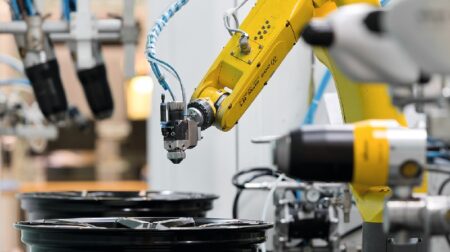

- Wheel Coating
|
Application Methods
- AirSpray
- AirSpray Conventional
- AirSpray HVLP
- AirSpray HVLP Plus
|
Processable Material
- Water Based
- Solvent Based
- Abrasive
- Sher & Moisture Sensitive
|
Product Variants
| Description |
Control Type |
Needle Stroke |
Mount Option |
Material Feed |
AirCap Type |
Nozzle Size |
Part No. |
| GA1020EC VAR fAP Circ HVLP+ Ø1.0 |
Extenal (EC) |
Adjustable |
Adaptor Plate |
Circulation |
HVLP + |
1.0mm |
2412471 |
| GA1020IC VAR fAP Stub HVLP+ Ø1.0 |
Internal (IC) |
Adjustable |
Adaptor Plate |
No Circulation |
HVLP + |
1.0mm |
2412473 |
| GA1020IC VAR fAP Circ Conv12 Ø1.0 |
Internal (IC) |
Adjustable |
Adaptor Plate |
Circulation |
Conventional 12 Hole |
1.0mm |
2414031 |
| GA1030EC VAR fAP Circ HVLP+ Ø1.0 |
External (EC) |
Adjustable |
Adaptor Plate |
Circulation |
HVLP + |
1.0mm |
2415144 |
| GA1030IC VAR fAP Stub HVLP+ Ø1.0 |
Internal (IC) |
Adjustable |
Adaptor Plate |
No Circulation |
HVLP + |
1.0mm |
2412465 |
| GA1030IC VAR DM Stub HVLP+ Ø0.8 |
Internal (IC) |
Adjustable |
Direct Mount |
No Circulation |
HVLP + |
0.8mm |
2414360 |

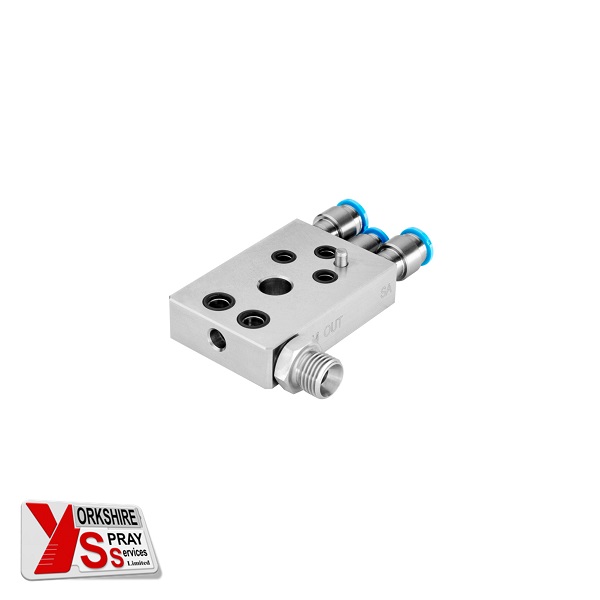

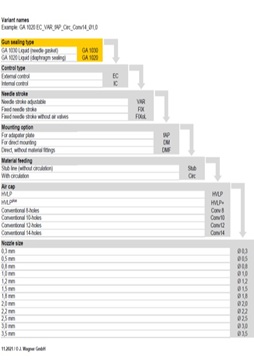

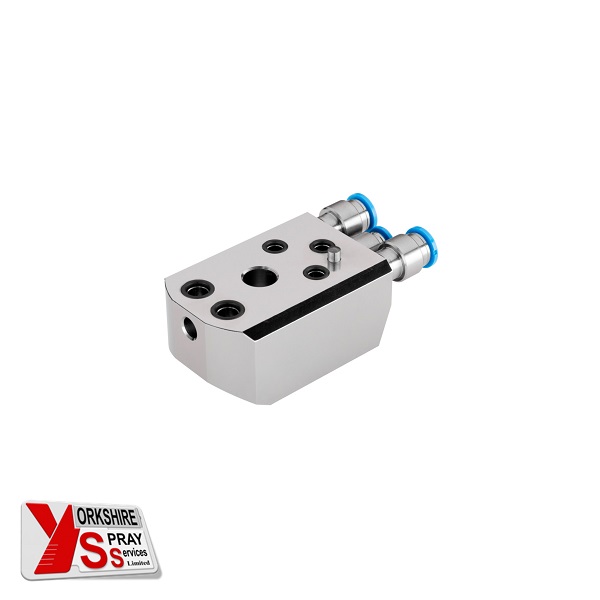

| Other variants available, i.e. Direct mounts and various adaptors, along with Back & Side Connections for Flexible Housing and also Dump Valve option. See configuration details in further information below. |
Technical Data
|
GA1020 |
GA1030 |
| The Wagner GA1020 & GA1030 Auto Guns, universally applicable AirSpray Guns for Automatic liquid paint applications. |
 |
|
| Max. Material Pressure |
2.5bar |
8bar |
| Volumetric Flow (l/pm) |
Conv.12 387 | HVLP+ 273 | HVLP 299 |
| Max. Nozzle Size |
ø0.3 – 2mm |
ø0.3 – 3.5mm |
| Material Passage |
9mm |
| Atomisation Air Connection |
QS-1/8-8 |
| Control Air Connection |
QS-1/8-6 |
| Material connection |
G1/4″ |
| Max. Air Inlet Pressure |
8bar / 116psi |
| Max. Material Temperature |
80°C |
| Max. Air Temperature |
50°C |
| Switching Time |
20msec |
| Weight |
650g |
Further Information
