Wagner TopFinish GA1900 Gun

Product Description

The Wagner TopFinish GA1900 Gun was specially developed for applications in continuous operation where high-quality surfaces are required. The certified stainless steel air caps are precisely manufactured and ensure repeatable coating results in high quality. The gun is therefore particularly suitable for coating a wide variety of components in the automotive industry.

Features & Benefits

• • Minimal Flushing & Material Consumption – Flush and loss-optimised material guidance
  • Reliable – High precision and reproducible spray pattern
  • Excellent Coating Results – Significant material savings thanks to an application efficiency of up to 85%.
  • Strong Performance – Long service life of the gun due to the use of high quality materials.
  • Low Maintenance – The round design on the Wagner TopFinish GA1900 Gun prevents large area material deposits on the gun body.

Application Areas Metal Coating Plastic Coating Wood Coating Wheel Coating

Typical Applications Internal Vehicle Parts External Vehicle Parts Plastic Components General Vehicle Manufacture

Processable Material Water Based 1k & 2k Solvent Based 1k & 2k UV Paint Sol Gel

Product Variants

Technical Data

Max. Material Pressure	18bar		The Wagner GA1900 Auto Guns, universally applicable AirSpray Guns for Automatic liquid paint applications.
Max. Nozzle Size	0.5 to 1.4mm
Air Connection	DN 10 / 8 / 6
Control Air Pressure	5.5 to 9bar
Material connection	G1/8″
Atomising Air Pressure	9bar
Max. Material Temperature	50°C
Max. Air Temperature	50°C
Switching Time	30msec
Weight	890g

Box Contents		Further Information

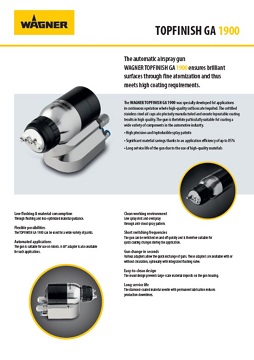

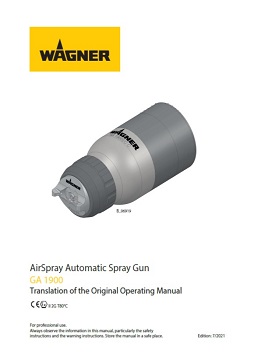

Available without or with Circulation Gun model with corresponding nozzle size, without circulation. (GA1900 EC) Gun model with corresponding nozzle size, with circulation.(GA1900 EC C)		Brochure Download	Manual Download
