Product Description

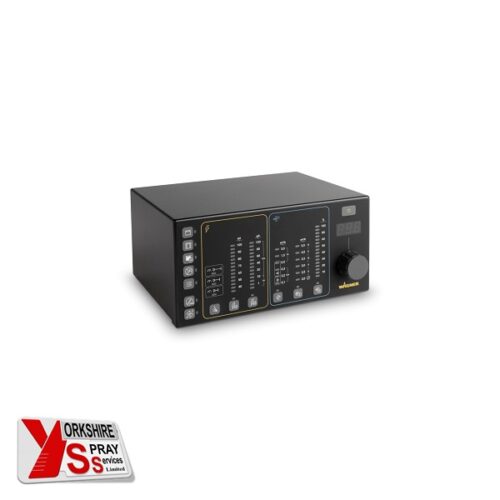

The Wagner WACON Sprint 2 XE is used for manual control of manual and automatic guns. An additional power supply can be used to connect a vibration motor, which is started by the gun trigger. High-precision air volume and high voltage regulators allow reproducible coating results.
All important coating parameters can be chosen, changed and stored in programs within the Wagner WACON Controller, which provides all Wagner Guns with an easy operating knob and precise AFC Closed-Loop-Technology.
Features & Benefits
- Quality at the touch of a button – The DSO function helps every coater to achieve finer, high-quality surfaces at the touch of a button. The function reduces overloading effects such as orange peel, edge build-up or back spray and is suitable for complex components and critical powders. The DSO function also enables good penetration in undercuts with small gun distances.
- Flexible Applications – The Wagner WACON Sprint 2 XE enables repeatable results at all times. Four recipes can be accessed directly via quick selection. A further 46 recipes can be called up with a click of the rotary knob.
- Reliable – The Wagner Air Flow Control technology ensures exact powder control. A high-precision closed control loop permanently measures and regulates the air volume during the coating process and thus produces a uniform powder cloud for high-quality coating results.
- Easy Handling – Clearly arranged control elements allow intuitive handling. All parameters are entered via a central rotary control. The intelligent control system can be adapted to a wide range of requirements by means of a multitude of setting options.
|
Technical Data
| Mains (AC) |
90 – 250VAC |
| Frequency |
47 Hz – 63 Hz |
| Input Power Max. |
110W |
| Output Voltage Max. |
22Vpp |
| Output Current Max. |
0.9A |
| High Voltage |
10 – 100kV |
| Input Air Pressure |
6 – 8bar / 87 – 116psi |
| Air Flow |
15m3/h |
| Mains (AC) Output Vibrating Motor |
70W |
| Weight |
3.3kg |
|
|
Further Information
