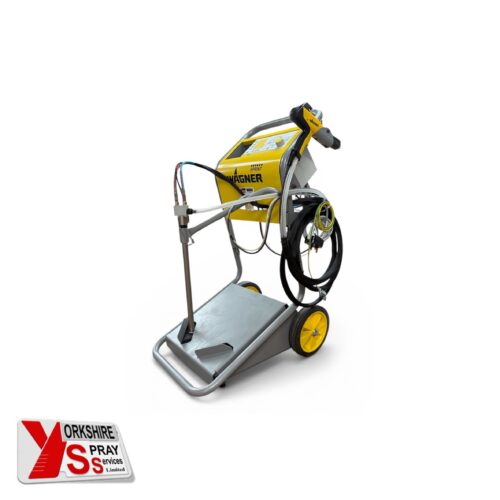

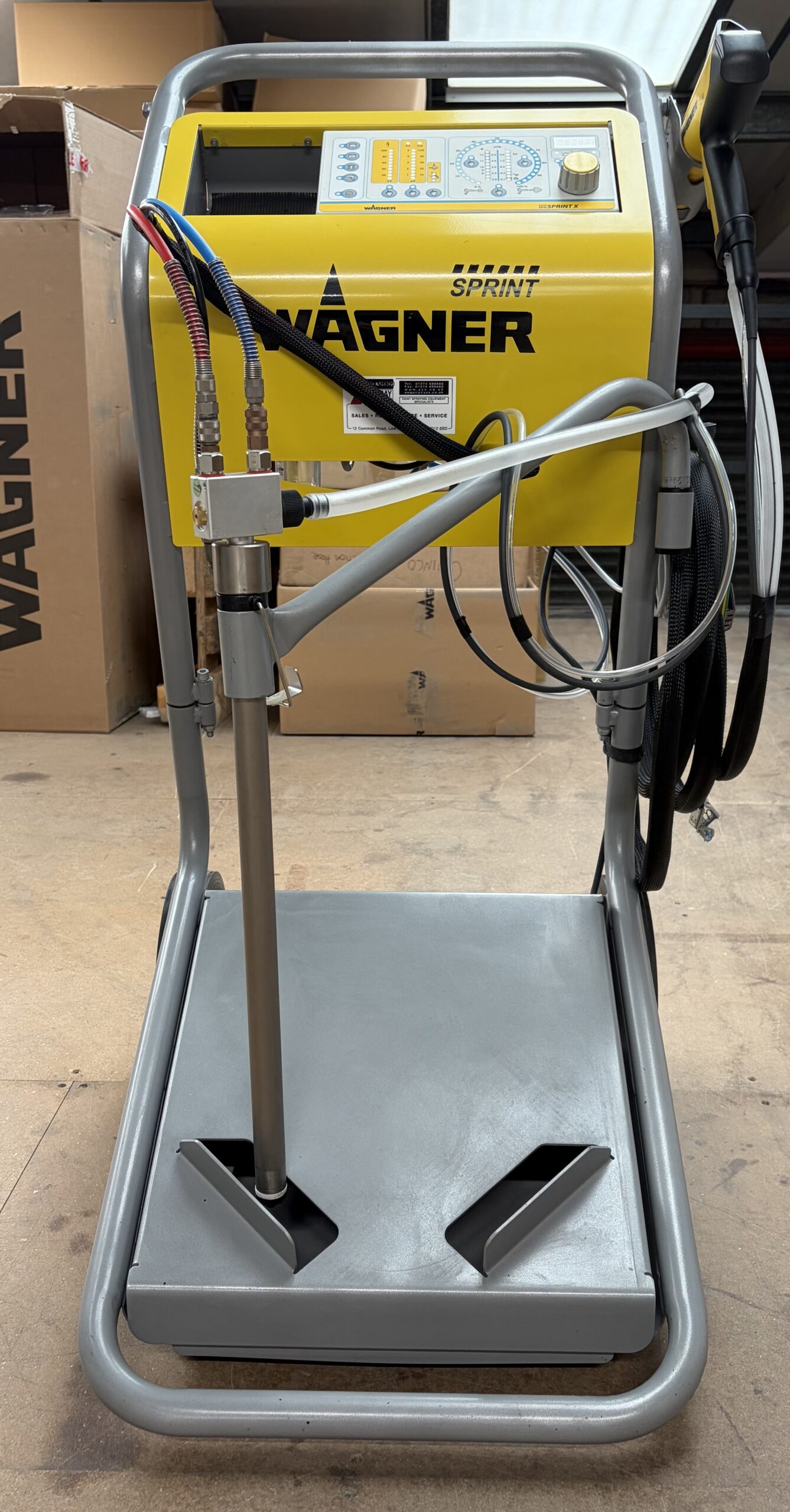

Yorkshire Spray Services Ltd - Wagner Prima Sprint XE Manual Powder System - Reconditioned - Unit Right

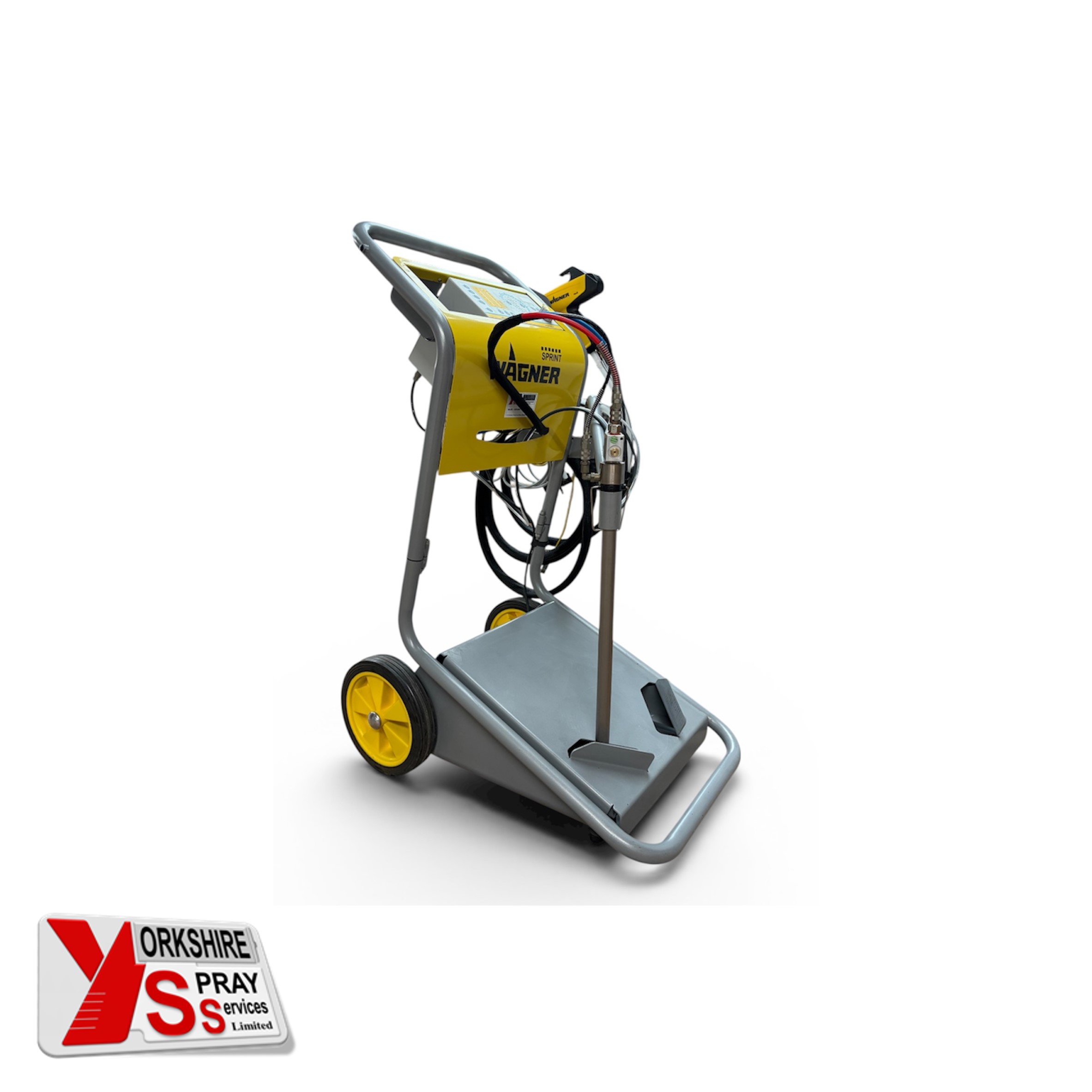

Yorkshire Spray Services Ltd - Wagner Prima Sprint XE Manual Powder System - Reconditioned - Unit Left

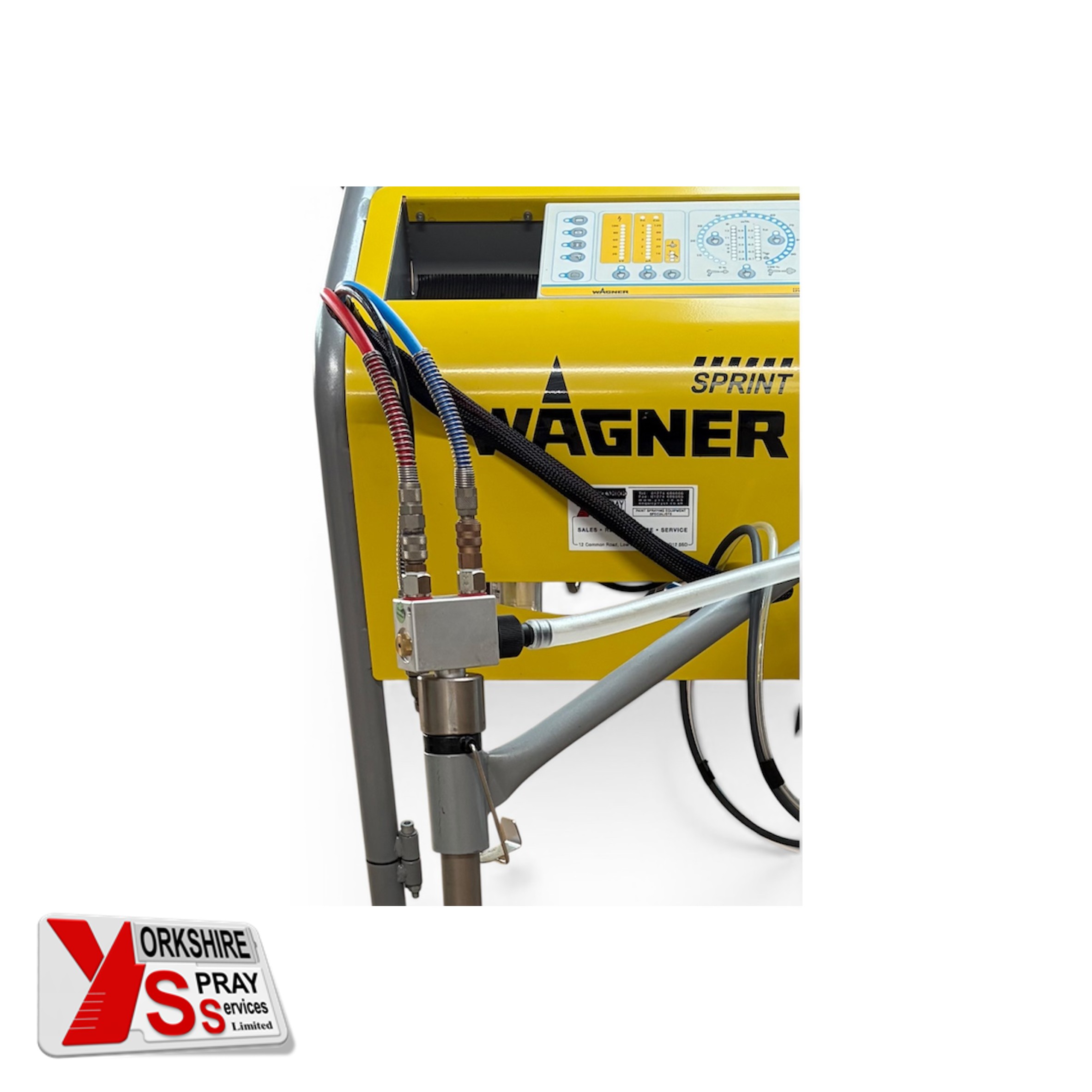

Yorkshire Spray Services Ltd - Wagner Prima Sprint XE Manual Powder System - Reconditioned - Detail

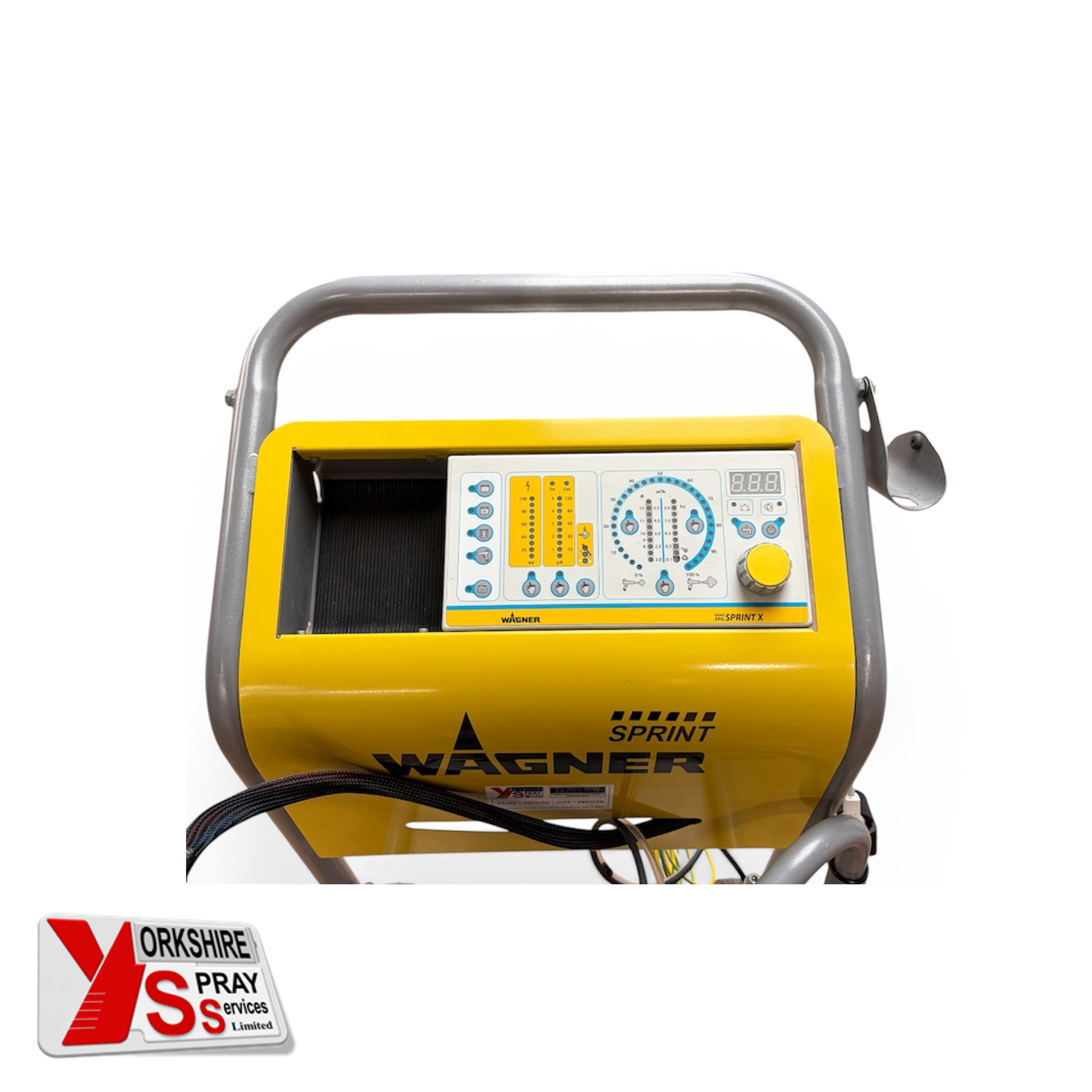

Yorkshire Spray Services Ltd - Wagner Prima Sprint XE Manual Powder System - Reconditioned - EPG Control

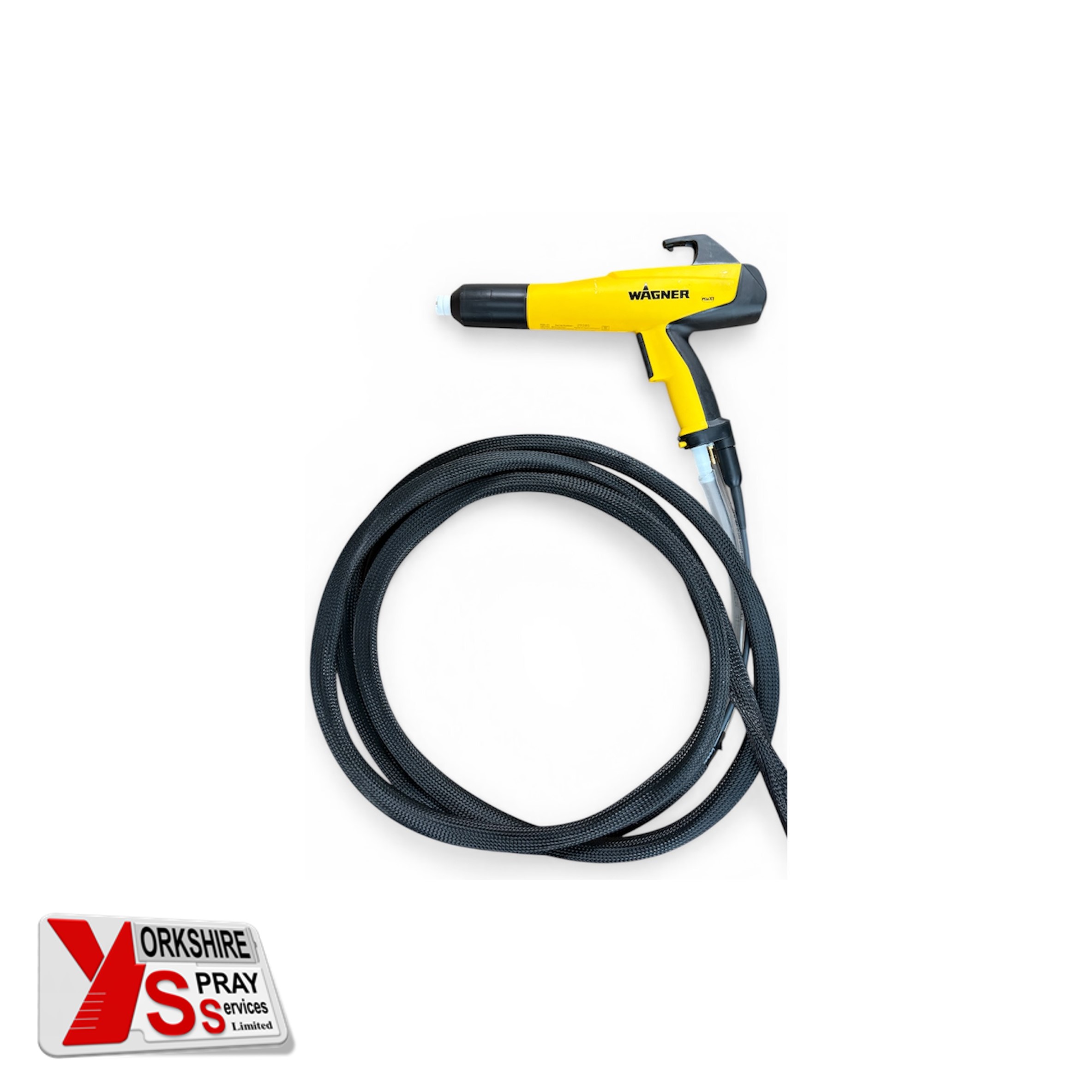

Yorkshire Spray Services Ltd - Wagner Prima Sprint XE - PEM-X1 Gun & Hose - Reconditioned - R

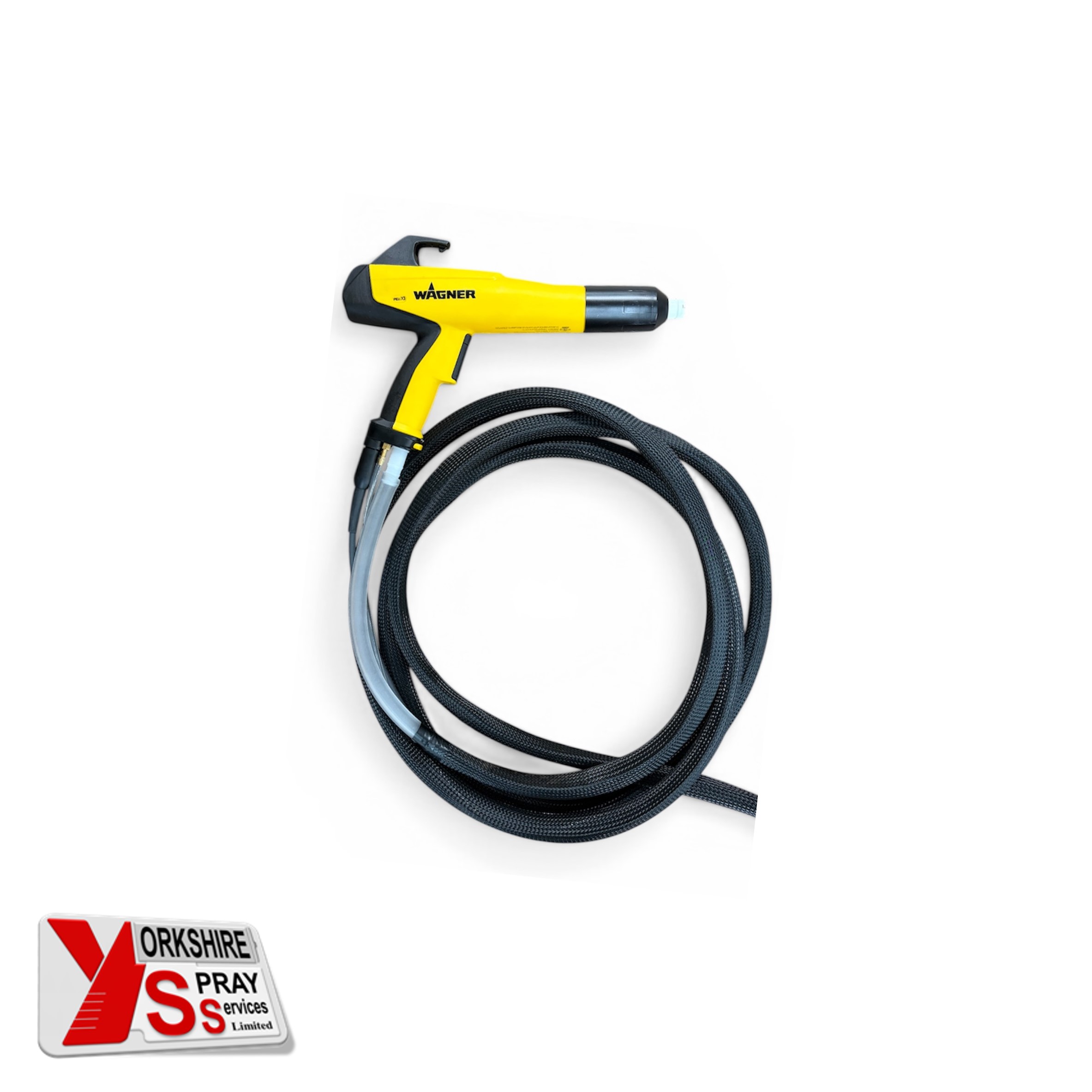

Yorkshire Spray Services Ltd - Wagner Prima Sprint XE - PEM-X1 Gun & Hose - Reconditioned - L

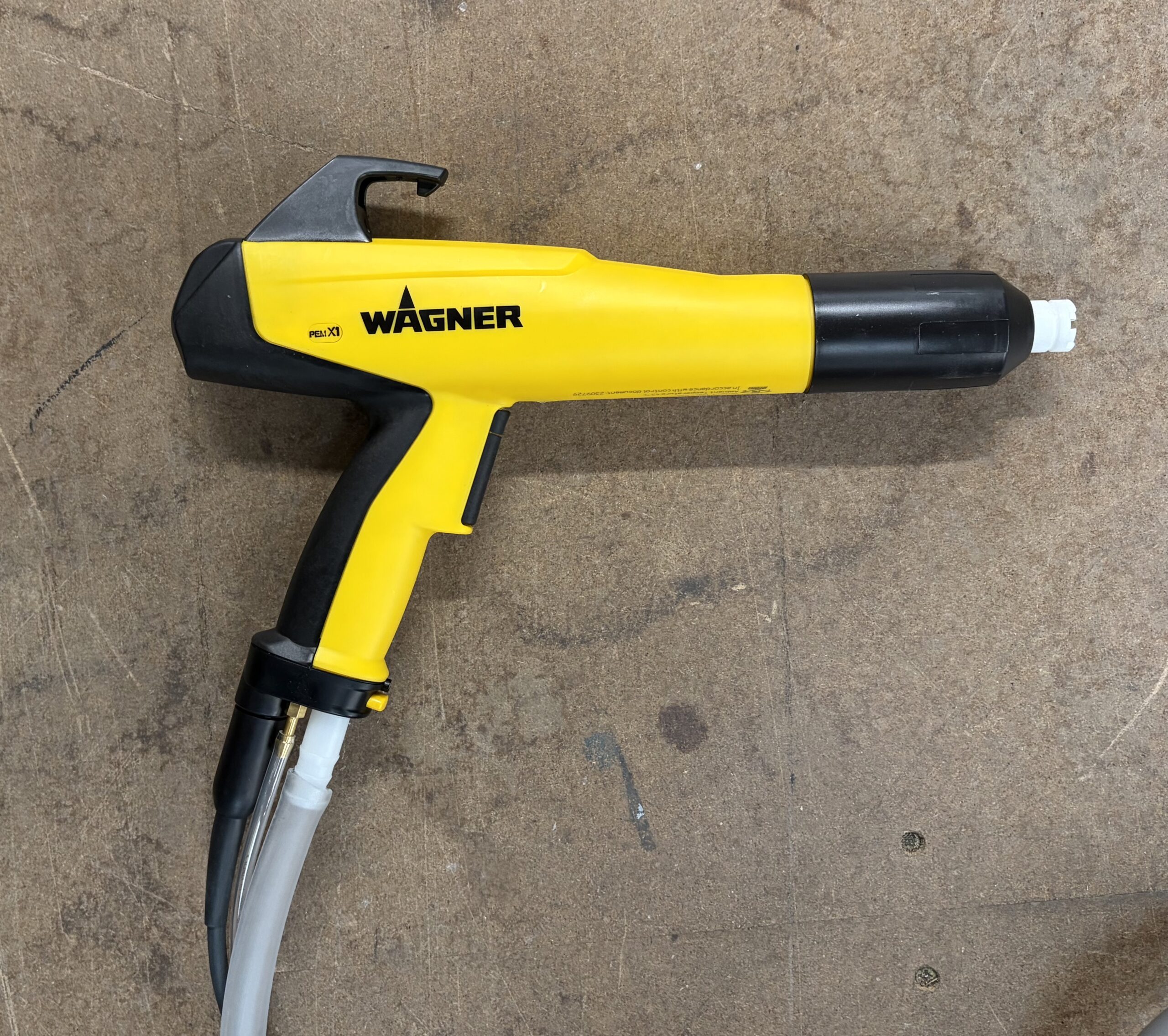

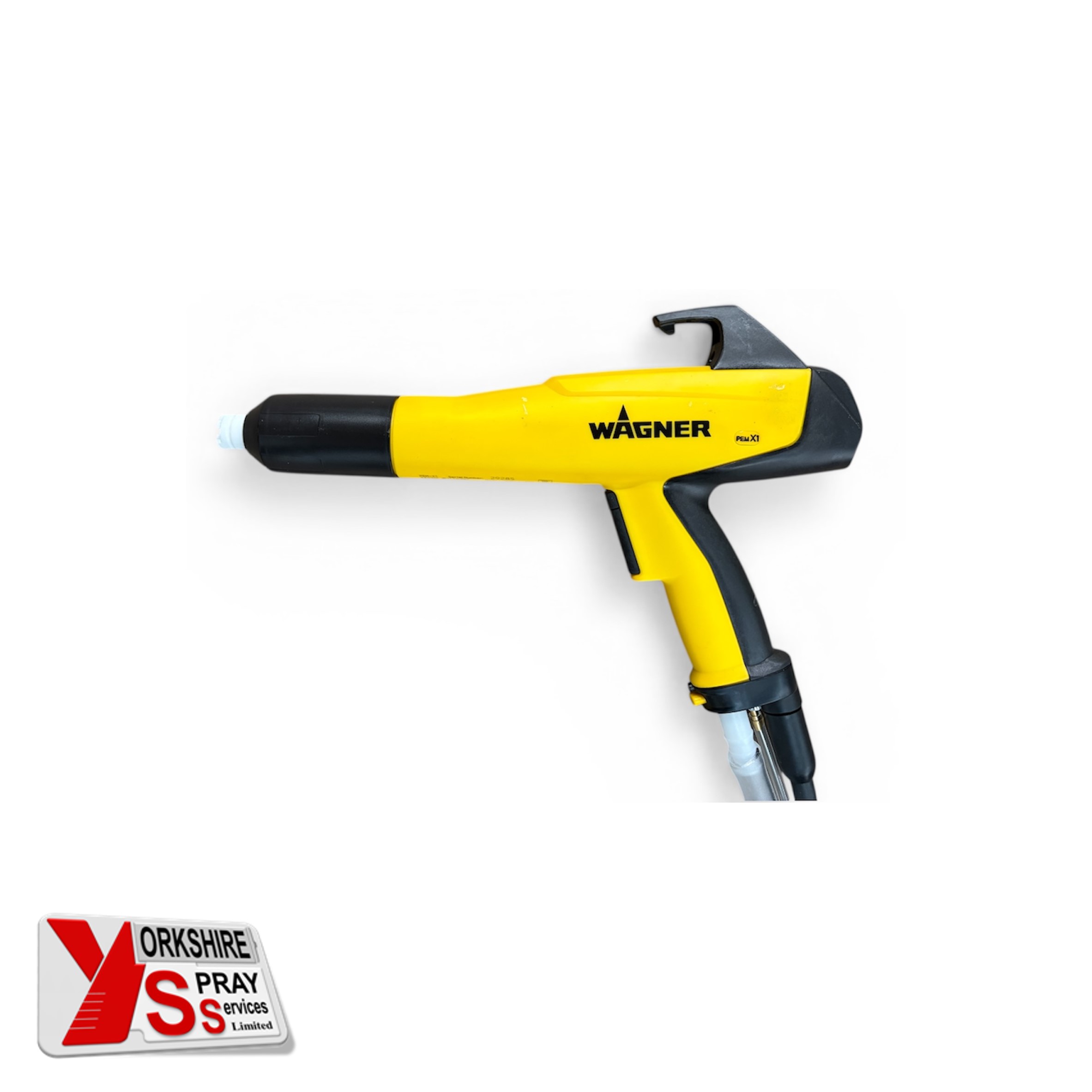

Yorkshire Spray Services Ltd - Wagner Prima Sprint XE - PEM-X1 Gun - Reconditioned - R

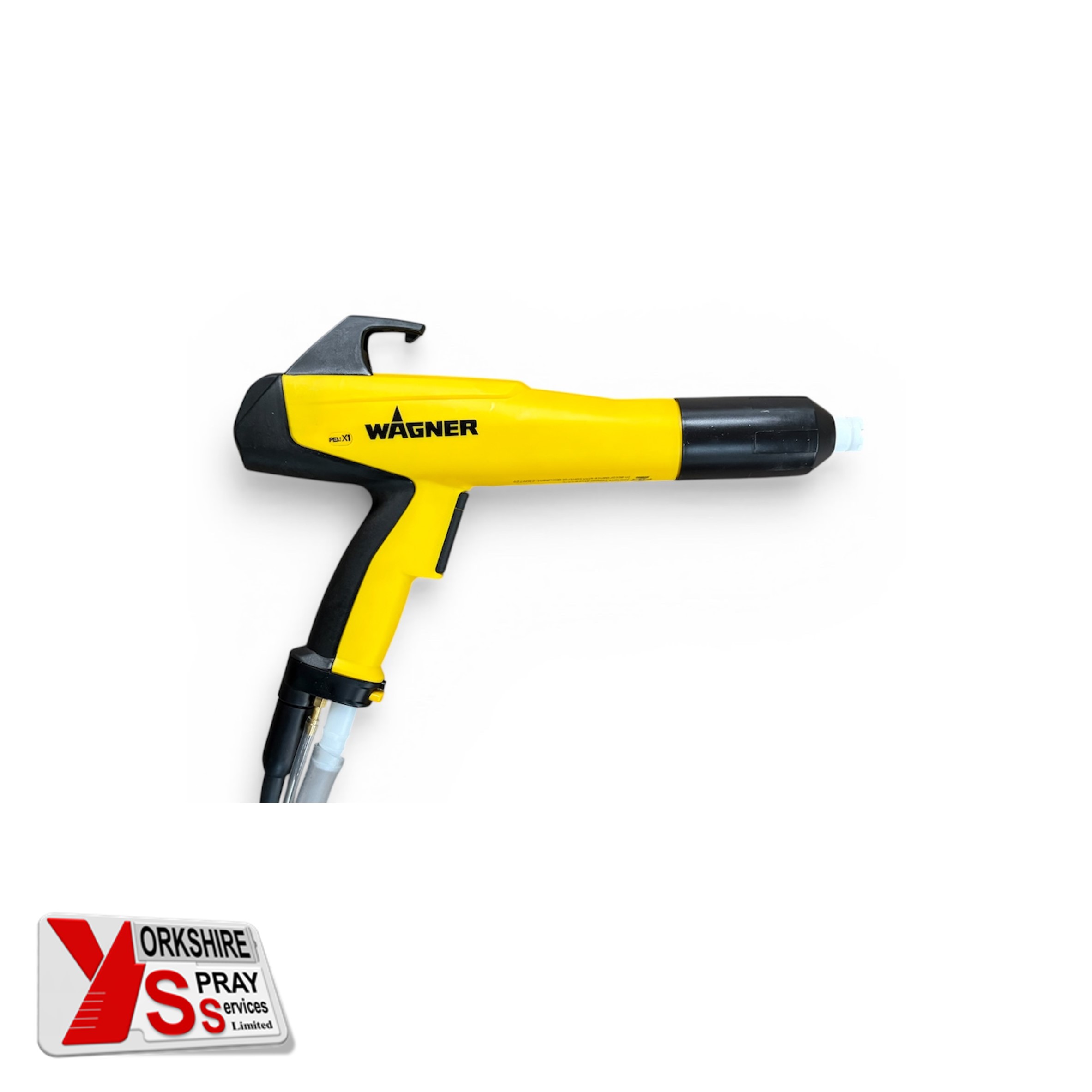

Yorkshire Spray Services Ltd - Wagner Prima Sprint XE - PEM-X1 Gun - Reconditioned - L

£2,550.00 + VAT

NOTE – This item may have some signs of cosmetic wear, but is fully operational and functions as intended. The photos are genuine images of the equipment we advertise, but the reconditioning is so good it may, incorrectly, appear new.

RECONDITIONED Wagner Prima Sprint XE – No.1, Airfluid Manual System, complete with the Wagner PEM X1 Corona Gun is perfect for powder coating straight from a manufacturer’s powder box. The diagonal positioning of the powder box it guarantees complete emptying of the box, to reduce waste.


	NEXT working day delivery for orders placed before 12.00pm. Delivery on back ordered products approx. 4 – 7 days delivery

Wagner OEM Part No. 2355400

Out of stock

SKU: 2355400/RECON/10087-2022 Manual Powder Coating, Reconditioned Pumps & Equipment

Description Additional information Reviews (0)

Product Description

Recondition Details

This reconditioned Wagner Prima Sprint XE System has been fully stripped down, cleaned and serviced, with new parts replaced where necessary.

New parts as follows;-

PEM-X1 Gun
Injector Service Set
F1-Flat Nozzle X1
Atomising Air Line Set
Hose Connector
Powder Hose D11 5m

Features & Benefits

Wagner’s revolutionary design throughout the Sprint range has taken the industry by storm. The user-friendly nature and the unique “double click of the trigger”, to change settings for different sections of the work piece has made it the Number one choice for all who try it!
Soft powder cloud, more uniform film thicknesses & optimised application. Optimised electrostatics, perfect powder charging in conjunction with the integrated high voltage cascade. Adaptable Corona Star Set in conjunction with the newly integrated gun hook on the PEM-X1 Gun.	Simple assembly & disassembly of the wear parts & of the whole nozzle system. Unique “double click” trigger. Air pulsation purge for fast colour changes. Remote controlled. vibration unit Suction unit with fluid crown for optimal fluidisation.	Optimised positioning of the Powder container for better emptying. EPG Sprint XE Controller. Easy to replicate results. Recoating program at the push of a button. Save up to 30% of your Powder material.

PEM X1 Manual Gun

High Dynamic Remote Function – Selected by simply double clicking the gun trigger in order to activate the stored program, fastest & most ergonomic program change on the market!

Durability – Robust gun body protects all the electronic components. When used as a standalone manual unit the Prima Sprint unit utilizes program number 4 for the HDR function.

Untiring & Ergonomic – The PEM-X1 weighs only 500g and thus just fewer than 3% less than the comparable models. Reduced weight gun extensions (150mm & 300mm) for coating deep work-piece geometries are also available

Yorkshire Spray Services Ltd - Wagner X1 Gun Detail

1 | Remote Control – User friendly, offering more flexibility during application

2 | Nozzles – Designed for perfect coating, including the use of Metallic powders

3 | Ergonomic Handle – Good grip, balance and fit for perfect handling

4 | Quick Release Coupling – Allows fast & efficient colour changes

Wagner Powder PEM X1 Gun Detail

EPG XE Sprint Controller

All important coating parameters can be chosen, changed and stored in programs with the EPG-XE Sprint controller. It provides all Wagner Guns with an easy operating knob and precise AFC Closed-Loop-Technology.

No loss of time, no coating interruptions.
Closed-Loop AFC for safe repeatable amount of powder
The only controller with adjustable HV-characteristic
Fast, intuitive, self-explanatory use
Short colour change due to impulse purge program
Perfect for Corona and Tribo application
Up to 50 coating programs may be stored

The clear and structured controller interface supported by a digital display ensures that the operational parameters on the Wagner Prima Sprint XE are easily viewed at a glance.

Yorkshire Spray Services Ltd - Wagner Manual Powder Coating - Wagner EPG XE Sprint Controller

Technical Data

	Prima Sprint XE	PEM-X1 Gun	EPG XE Control
Max. Input Voltage	85 – 250V	22Vpp	85 – 250v
Max. Output Voltage	N/A	100Kv	N/A
Max. Input Power	110w	N/A	120w
Operating Temp.	5 – 45°C
Min. Input Frequency	50 – 60Hz	N/A	47 – 440Hz
Max. Powder Output	N/A	450g/min	N/A
Min. Air Inlet Pressure	6 – 8bar	N/A	6 – 8bar
Air Inlet Connection	G 1/4″ I	N/A	G 1/4″
Valve Control Voltage	24v	N/A
Min. Exhaust Air Flow	0.05 – 20.0 Nm³/h	N/A
Protection Class	IP64
Polarity	N/A	Negative	Neg – or Pos +
Weight	38kg	490g	3.3kg
