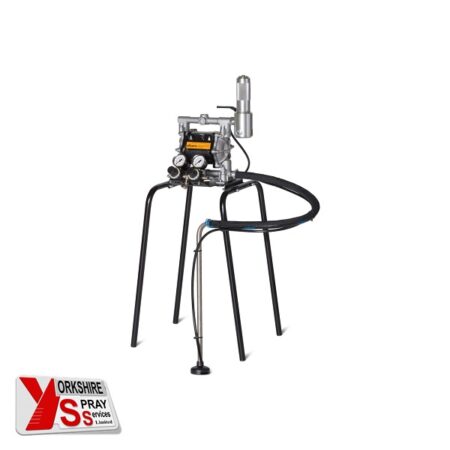

Wagner Zip52 ECO PF

Product Description

The Wagner Zip52 Eco PF (Perfect Flow) a high performance, reliable and economical double diaphragm finishing spay pum. The innovative Zip Eco Perfect Flow is a low-cost solution for low-pulsation, low-pressure airspary applications. It is particularly suitable in the area of electronic 2K systems or as a supply pump for air atomising applications. The Wagner Zip52 Eco PF finishing unit is equipped with Air Regulators, Atomising Air Regulator, Large Filter and the Anti-Pulsation Tank instead of FFC Contrller.

Features & Benefits

• Versatile – The fluid section is completely hermetically thick, free of rubbing and sheering and is ideally suited to all types of fluids, especially, highly abrasive fluids, such as corrosion protection material, material that is sensitive to shearing or rubbing such as UV paint, or material that react to humidity such as isocyanic hardeners.
• Frugal & Economical – The high efficiency allows for low air consumption. The internal geometry, free of dead space, significantly helps save solvent when changing paint and cleaning.
• Highest Spray Quality – Large Filter and Anti-Pulsation Tank provide a quality finish.
• Easy to Operate – All control elements are easily accessible in the correct position and easy access to the, shut-off valves and air regulators for air supply, material pressure regulator and atomising air.
• Ready to use Equipment – Various ready-to-use spray packs in different equipment: optionally mounted on a frame, trolley, wall mount, or on a drum cover – complete with material pressure regulator, suction pipe, agitator, material hose and spray gun.

Zip Pump Technology		Typical Applications & Fluids
In the Wagner AirSpray process, the paint is atomised entirely by air. The task of the pump is to feed the gun with a constant flow of materials. Two coupled diaphragms (2) are moving from the left to the right and back by help of pressurised air (3). The steering valve (4) guides the air to the side where the diaphragm is moved to contract the fluid chamber (1). Material is being transported by contraction and expansion of the fluid chamber volume and the inlet- and outlet valves (5&6). 1 | Pumped Material & Pump Chamber 2 | Long Life Diaphragm 3 | Pressurised Air 4 | Steering Valve 5 | Material Inlet Valve 6 | Material Outlet Valve		Wood & Furniture Industry General Metal Industry Plastic Finishing Leather & Textile Application Glass Coating Stains, Primers & Fillers Base & Clearcoats Solvent & Water-Based Paints 2-K Materials High Solid Materials UV-Paints Metallic Paints Special Effect Paints Glues & Adhesives

Technical Data

Pump Ratio 1:1 Operating Pressure 8bar / 116psi Material Temperature 4 – 90 °C Max. Air Inlet Pressure 8bar / 116psi Max. Operating Pressure 8bar / 116psi Volumetric Flow with Free Flow 28 l/min Volumetric Flow per Double Stroke 65 cm³/DH Max. Particle Size 2mm Sound Level at Max. Flow Rate & Feed Pressure of 8bar 85 dB(A) Max. Suction Lift 4.9m Pump Body Material Alu Weight (Pump) 7.9kg
