Wagner Zip52 Finishing Basic & Trolley

Product Description

The Wagner Zip52 Finishing Basic & Trolley, the Zip52 finishing pump is the first choice for supreme coating quality, reliable, powerful and ideally for manual spray guns. Also, ideal for use in Electrostatic, HVLP or fully conventional air atomisation applications that apply coatings to wood, metal, synthetic material, glass or leather.

All ready-to-use Wagner Zip52 Finishing Basic & Trolley, includes the Fine Flow Controller (FFC): precision material pressure regulator, anti-pulsation unit and filter in a single device.

Wagner Zip pumps are perfect for AirSpray applications. Whether using high viscosity material, shear sensitive or thixotropic, heat critical paints or just ordinary coatings, ZIP finishing equipment meets all the expectations of a professional painter.

Features & Benefits

• Versatile – The fluid section is completely hermetic, free of rubbing and sheering, and is thus ideally suited to all types of fluids – especially highly abrasive fluids such as corrosion protection material, material that is sensitive to shearing or rubbing such as UV paint, or material that react to humidity such as isocyanate hardeners.
• Frugal & Economical – The high efficiency allows for low air consumption. The internal geometry, free of dead space, significantly helps save solvent when changing paint and cleaning.
• Highest Spray Quality – Smooth, even and pulsation-free material flow through the precision Fine Flow Controller (FFC), which is additionally equipped with an integrated material filter.
• Easy to Operate – All control elements are easily accessible in a convenient position.
• Ready to use Equipment – Various ready-to-use spraypacks in different equipment: Mounted on a frame, trolley, wall mount, or on a drum cover – complete with material pressure regulator, suction pipe, agitator, material hose, and spray gun.

Zip Pump Technology		Typical Applications & Fluids
In the Wagner AirSpray process, the paint is atomised entirely by air. The task of the pump is to feed the gun with a constant flow of materials. Two coupled diaphragms (2) are moving from the left to the right and back by help of pressurised air (3). The steering valve (4) guides the air to the side where the diaphragm is moved to contract the fluid chamber (1). Material is being transported by contraction and expansion of the fluid chamber volume and the inlet- and outlet valves (5&6). 1 | Pumped Material & Pump Chamber 2 | Long Life Diaphragm 3 | Pressurised Air 4 | Steering Valve 5 | Material Inlet Valve 6 | Material Outlet Valve		Wood & Furniture Industry General Metal Industry Plastic Finishing Leather & Textile Application Glass Coating Stains, Primers & Fillers Base & Clearcoats Solvent & Water-Based Paints 2-K Materials High Solid Materials UV-Paints Metallic Paints Special Effect Paints Glues & Adhesives

Fine Flow Controller (FFC)

This device allows adjustment with maximum precision and simplicity, allowing fine tuning of the pumped fluid pressure, at the same time working as a filter and anti-pulsation system. FFC allows to obtain a regular and no-pulsating flow, ideal for maximum quality finishing and high precision applications. (Precisely adjustable filter flow controller with filter and integrated pulsation damper) This 3 in 1 device, further to being very compact, reduces the internal dead space where usually residuals and dirt build up. Both cleaning operation and colour changes result easier, quicker and cheaper.

Technical Data

Pump Ratio 1:1 Operating Pressure 8bar / 116psi Material Temperature 4 – 90 °C Max. Air Inlet Pressure 8bar / 116psi Min. Air Inlet Pressure 1.5bar / 22psi Air Inlet Connection BSP(G) 1/4″ F Max. Operating Pressure 8bar / 116psi Volumetric Flow with Free Flow 52 l/min Volumetric Flow per Double Stroke 108 cm³/DH Max. Particle Size 2mm Sound Level at Max. Flow Rate & Feed Pressure of 8bar 85 dB(A) Max. Suction Lift 4.9m Pump Body Material Alu Weight (Pump) 8.9kg

Wagner Zip52 Finishing Basic & Trolley Pack

Box Contents		Further Information

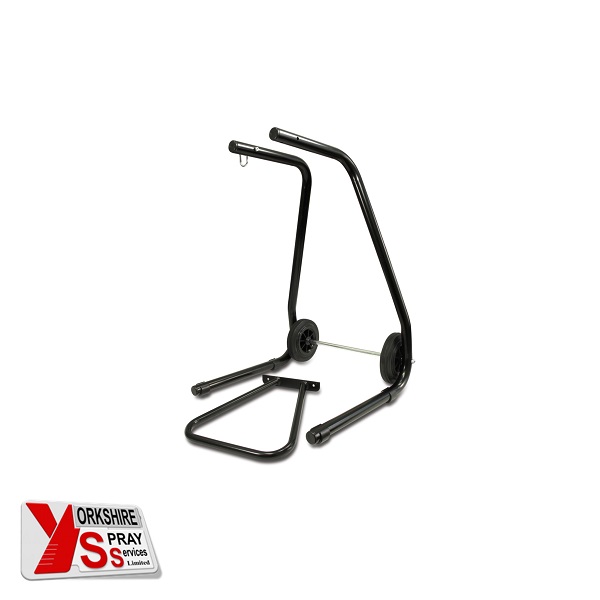

Basic & Trolley Spray Pack Diaphragm Pump Zip 52 Alu Fine Flow Controller (FFC) Trolley. Suction Hose Assy. Part No: U760.00/T760.00SR		Brochure Open	Manual Download
