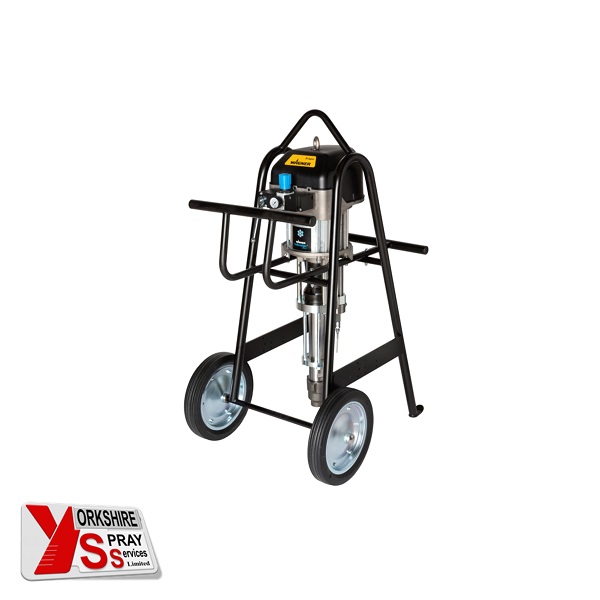

Yorkshire Spray Services Ltd - Wagner PROTEC - Wagner PROTEC 60-240 PE-TG Trolley SprayPack - Wagner Part No. 2352274

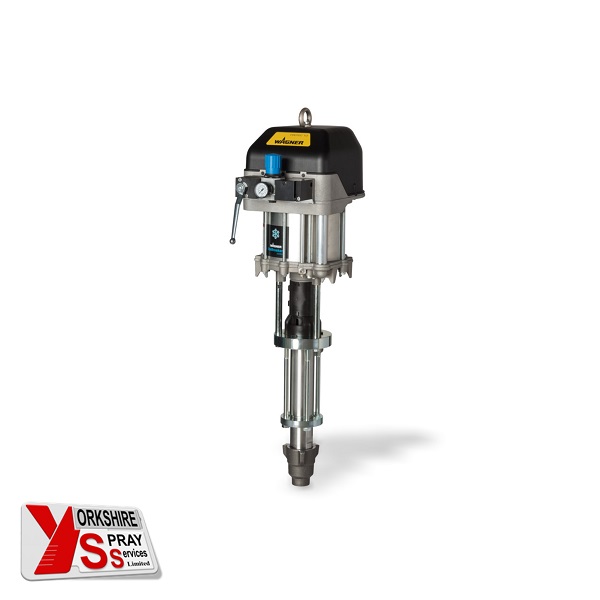

Yorkshire Spray Services Ltd - Wagner PROTEC - Wagner PROTEC 60-240 PE-TG Piston Pump - Wagner Part No. 2351025

The Wagner PROTEC 60:240 – High-pressure piston pump, stainless steel, for Airless applications up to 480 bar and 7.2 L/min. Extremely robust and ideal for heavy corrosion protection.

£POA

Please call or email for pricing – Discounts may be offered for multiple purchases, or any agreed part exchange.

Description Additional information Reviews (0)

Product Description

The Wagner PROTEC 60:240 – Ice Breaker, High-Pressure Piston Pump, Stainless Steel, for Airless applications up to 480 bar and 7.2 ltr/min. Extremely robust and ideal for heavy corrosion protection. The large valve cross sections provide for an optimal flow that is gentle on materials.

Reliable – The extremely low pulsation and low maintenance controller offers very high reliability, even during continuous operation.
Designed for Varied Applications – Made entirely of high quality stainless steel, the fluid section is designed for a long service life and low wear, even when conveying abrasive and chemically corrosive material.
Ideal for Corrosion Protection – Suitable when applying large amounts of material and using several guns.
Extremely Robust – Reliable and easy to maintain in everyday use.

Features & Benefits

1 | Very Easy to Use – The integrated 3-way main valve allows a soft start and automatic pressure relief to be controlled with ease.

5 | IceBreaker Air Motor – Performance not affected in any way by icing in the event of high air humidity. The full-pressure reversing device ensures zero-compromise performance.

2 | Integrated Pinch Protection – Moving parts protected to prevent injury. Suitable for both onshore and offshore application areas.

3 | RackCaddy – Handy “all-round protection” for pump and accessories. Robust and sturdy for tough environments.

6 | Zero-Compromise Fluid Section – Designed to process modern, high solid protective coating materials. Large valve cross-sections and self-adjusting “long-life” packings for use with highly viscous and abrasive materials.

7 | Additional Air Filter – The filter protects the air motor from poor air quality at the point of use and ensures reliable operation.

4 | Suction Hose – Flexible suction hose provides with extra-large inlet valves maximum intake rates. This is an unbeatable benefit, especially for highly viscous materials. The quick-release fastener makes light work of maintenance and cleaning.

8 | Wagner PROTEC GM1 Airless Manual Gun is impressive not only because of its technical features but also because of its ergonomic design: The well-balanced and lightweight body of the gun ensures a good grip and comfortable handling with every use.

Technical Data

Pump Ratio	60:1
Operating Pressure	480 bar, 6962 PSI
Volumetric Flow per Double Stroke	240 cm³/DS, 18,31 in³/DH
Volumetric Flow per 60 DH	14.4 l/min
Max. Stroke Rate	50 DS/min
Material Inlet	F-G 1 1/2″
Material Outlet	M–M 24 x 1,5
Air Inlet Connection	I–G 1“
Air Inlet Pressure	2,5 – 8 bar, 36 – 116 PSI
Sound Level at 6 bar Air Pressure	81 dB(A)
Material Temperature	5 – 80 °C, 41 – 176 °F
Ambient Temperature	5 – 60 °C, 41 – 140 °F
Material Ph	3.5 – 9 pH
Max. Material Pressure at Pump Inlet	20 bar, 290 PSI
Allowable Inclination	±10 °
Weight	58,0 kg, 127.9 lb
